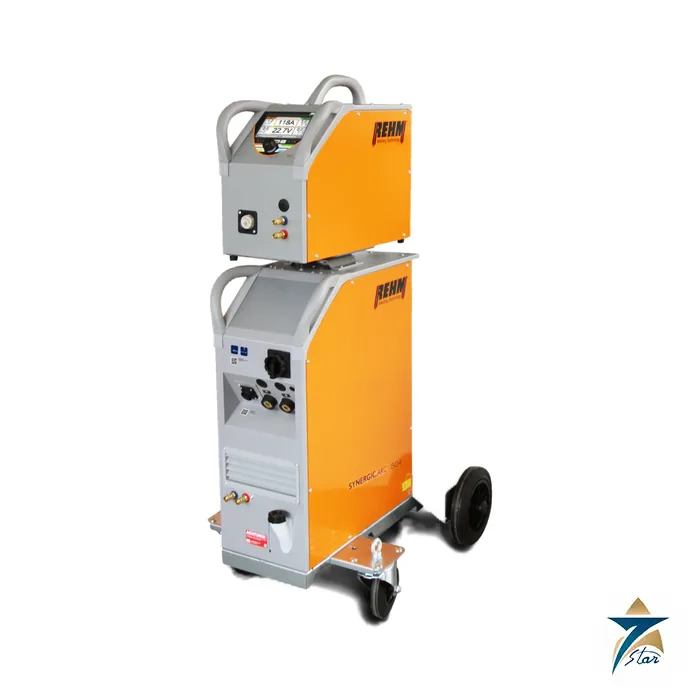

REHM SYNERGIC.ARC 504 WS Heavy-Duty MIG/MAG Welding Machine

A continuous-duty MIG/MAG machine for heavy industrial use

The REHM SYNERGIC.ARC 504 WS is the top machine of REHM’s SYNERGIC.ARC heavy-duty MIG/MAG range. It is a three-phase, water-cooled power source with a separate wire feed case (the “WS” version), set up for structural steel fabrication, vehicle and machinery manufacture and other shops where the welder runs for hours at high current. REHM quotes 400 A at 100 % duty cycle, so the machine is intended to be used at deposition rates that would overheat a lighter source.

The synergic characteristics let the operator pick the material and wire diameter and then adjust a single value, while REHM’s SIRIUS interface and QUICK CHOICE buttons give fast access to stored tasks. The display sits behind a 3 mm impact-resistant screen, with an optional cover against sparks and spatter, and the control knob is built to take knocks. REHM also lists its FOCUS.ARC process for conventional welding with a short, powerful arc and a higher deposition rate than spray arc.

Technical specifications

Choosing within the SYNERGIC.ARC 304-504 range

Each size is offered as a compact unit or with a separate feed case, and the 504 is built as water-cooled only. Recommended premium set RC SET 4 (item 1184253) is listed by REHM for the 404 and 504 machines; the contents of the set are given in the brochure.

What to confirm before ordering

Check that the shop has a 3 x 400 V supply with a 32 A fuse, and that the torch package is water-cooled with its cooling unit. Confirm the wire diameter and material range, whether the Profi or Advanced undercarriage is wanted for 50 l bottles, and whether the display covers are needed. If the work is lighter, the gas-cooled 304 or 404 may be a better fit than a 500 A class machine.

How the REHM SYNERGIC.ARC 504 WS works

In MIG/MAG welding, a wire electrode is fed continuously to the arc while a shielding gas protects the weld pool. The SYNERGIC.ARC 504 WS has a three-phase 400 V power source and a separate wire feed case with a four-roller drive. In synergic mode, the operator picks the material, the wire diameter and the gas, and the control sets the welding parameters to match. The operator then trims the result with one value. The setting range is 20 to 500 A, and REHM gives 400 A at 100 percent duty, so the machine can run through long shifts. The water-cooled torch removes the heat at high currents.

Where the SYNERGIC.ARC 504 WS is used

• Structural steel fabrication.
• Vehicle and machinery manufacture.
• Heavy plate welding with high deposition rates.
• Production shops that weld for hours at high current.
• Workshops that need to move the wire feeder close to the weld.

Selection checklist for the SYNERGIC.ARC 504 WS

• Water cooling, which is the only cooling option for the 504.
• Setting range of 20 to 500 A and a duty cycle of 30 percent at maximum current.
• Current of 400 A at 100 percent duty.
• Mains of 3 x 400 V with a 32 A fuse.
• Item number 1122267, with the wire feed unit.
• Floor stand or undercarriage, with the Profi or Advanced version.
• Weight of 70 kg without the undercarriage.
• Torch type and hose pack length.
• Recommended set RC SET 4, listed by REHM for the 404 and 504 machines.
• Protection class of IP 23.

Installation, commissioning and maintenance notes

Connect the machine to a three-phase supply with the correct fuse, and make sure the mains cable size suits the load. Fill the cooling circuit as the manual says and check for leaks. Fit the wire spool and the drive rolls for the wire diameter, set the gas flow and test on scrap. Keep the cooling unit clean and the coolant at the right level. Check the drive rolls, the contact tip and the liner at regular intervals, and blow dust out of the power source.

Requesting a quotation for the REHM SYNERGIC.ARC 504 WS

Send the wire diameter, the hose pack length and whether you need the undercarriage. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

FOCUS.ARC process

REHM lists the FOCUS.ARC process for conventional welding with a short and powerful arc, and a higher deposition rate than spray arc.

Operation

The SIRIUS control and the QUICK CHOICE buttons give fast access to stored tasks, and the display sits behind a 3 mm impact-resistant screen.

Range sizes

The 304, 404 and 504 machines share one design, and the 504 is the largest of the range.

Machine records

Keep the item number, the weld settings of each procedure and the service dates in the record.

Documents and quotation

The REHM SYNERGIC.ARC brochure is available on this page. Other machines of this type are listed under MIG/MAG Welding Machines; a comparable heavy-duty option is the Lorch MicorMIG 500.

To request a quotation send the model and item number, supply voltage, torch cooling and the wire and material you weld.
