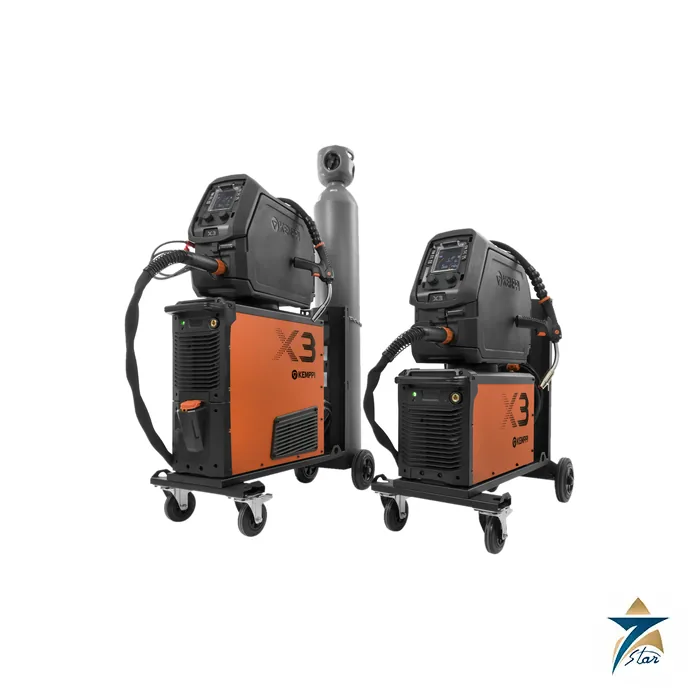

Kemppi X3 FastMig MIG/MAG Welding Machine

Overview

The Kemppi X3 FastMig is a production-grade MIG/MAG welding system from the Finnish manufacturer Kemppi, built for structural fabrication shops, shipyards, maintenance workshops and contractor yards that need a tough machine without a long learning curve. The family is offered in two power levels. The X3S FastMig Synergic delivers 420 amperes at 60% duty cycle, and the X3P FastMig Pulse raises that to 450 amperes and adds pulsed MIG for cleaner, lower-spatter results. Both versions of the Kemppi X3 FastMig are available as gas-cooled (G) or water-cooled (W) packages, so a buyer can match the torch cooling to the duty of the job.

Seven Star LLC supplies the Kemppi X3 FastMig to fabricators, EPC contractors and plant maintenance teams across Oman and the wider GCC, with engineering support in Muscat. Our team helps buyers choose between the Synergic and Pulse power sources, select interconnection cable lengths and assemble the right trolley and remote-control accessories for each site, whether the machine will run in a Sohar workshop, a Duqm shipyard bay or a pipe spool yard near Salalah.

How the Kemppi X3 FastMig Works

MIG/MAG welding, as a general process description, feeds a continuous solid or cored wire through a torch while a shielding gas protects the molten pool from the atmosphere. The power source holds a near-constant arc voltage, and the wire feed speed sets the current. In the Kemppi X3 FastMig, the inverter power source and the separate HD300 wire feed unit are linked by an interconnection cable, which lets the welder carry the lightweight feeder close to the joint while the heavier power source stays on the shop floor or on a 4-wheel trolley.

Two operating philosophies are built into the control. In AUTO mode the machine uses its factory synergic programs: the welder picks the filler material and wire diameter, and the system links voltage to wire feed speed automatically. In MANUAL mode the operator sets voltage and wire feed independently, which experienced welders often prefer for special joints. The X3P version of the Kemppi X3 FastMig adds a pulse process that alternates between a high peak current and a low background current; in general welding practice this gives controlled droplet transfer, a narrower heat input band and less spatter on stainless steel and aluminium.

Engineering Design of the Kemppi X3 FastMig

The standard wire feeder for every Kemppi X3 FastMig package is the HD300, a heavy-duty unit housed in a dual-wall, impact-resistant plastic cabinet designed to absorb knocks in rough industrial service. Inside, the Dura Torque 4×4 drive mechanism uses four driven rolls for strong, consistent wire delivery. The feeder has a safe-lift design, so it can be lifted and suspended by its handle, and an optional boom hanger lets it hang at a convenient angle over the working area.

The power source is a three-phase unit for 380 to 415 V supplies at 50/60 Hz with a tolerance of plus or minus 10 percent. The casing carries IP23 protection, EMC class A, and an operating temperature range from minus 20 to plus 40 degrees Celsius, which matters for outdoor yards in the Gulf summer. The gas-cooled power source measures 698 by 251 by 361 mm and weighs 35 kg, while the water-cooled version with its integrated cooler is 613 mm tall and weighs 47 kg. Kemppi lists conformity with IEC 60974-1 and -10, with IEC 60974-2 added for the water-cooled units.

Key Features

The features below explain why the Kemppi X3 FastMig has become a common choice for heavy production MIG/MAG work:

• Two power variants are available, the 420 A X3S FastMig Synergic and the 450 A X3P FastMig Pulse, both rated at 60% duty cycle at plus 40 degrees Celsius.
• The 100% duty cycle ratings are 350 A for the Synergic model and 380 A for the Pulse model, supporting long, continuous welds on thick sections.
• The X3P carries 67 factory welding programs and the X3S carries 42, covering Fe, Ss, AlSi5, AlMg5, CuSi3, metal-cored, rutile and CrNiMo cored filler wires.
• Supported wire diameters on the Kemppi X3 FastMig range from 0.8 mm to 2.0 mm, which covers thin sheet work as well as heavy structural deposition.
• A colour LCD with a non-language, icon-based layout allows fast parameter selection by professional and semi-professional welders alike.
• The HD300 wire feeder uses dual-wall construction and the Dura Torque 4×4 drive for reliable feeding in demanding environments.
• Optional remote control is possible through the GXe torch-mounted GRe50 remote or the HR53 wired hand remote.
• MMA and carbon arc gouging are available from the same power source, with up to 430 A MMA output on the Pulse version.

Industrial Applications

In the Sultanate of Oman, the Kemppi X3 FastMig is well suited to steel structure fabrication for industrial buildings, pipe racks and storage tanks, where long fillet welds on carbon steel plate demand high deposition and a robust duty cycle. Shipbuilding and ship repair in Duqm and Sohar benefit from the long interconnection cables, which let the feeder travel deep into a hull block while the power source remains on deck. Water-cooled variants are a sensible choice for continuous production in hot workshops where torch heat becomes a limiting factor.

The Pulse model extends the Kemppi X3 FastMig into stainless steel and aluminium work such as process skids, food and water treatment frames, and desalination plant ancillaries. Maintenance departments at refineries that run a Kemppi X3 FastMig, cement plants and power stations use the MMA and gouging capability for repair jobs between MIG/MAG campaigns. Seven Star LLC supplies the complete package, including power source, HD300 feeder, cables, trolleys and remotes, and coordinates delivery to sites in Muscat, Sohar, Duqm and across the GCC.

Technical Specifications

The table summarises the published data for the Kemppi X3 FastMig family. Values are taken from the Kemppi X3 FastMig brochure; G denotes gas-cooled and W denotes water-cooled packages.

Interconnection cables from 1.5 m up to 30 m, a 4-wheel trolley (X3T4), feeder trolleys, a boom hanger and protection sliders are listed as accessories. Related equipment on our site includes the Lincoln Electric Power Wave S500, the ESAB Rebel EMP 285ic and the Lincoln Electric SuperArc L-59 ER70S-6 Solid MIG Welding Wire, and the full range is grouped under MIG/MAG Welding Machines.

Call To Action

To request a formal quotation for the Kemppi X3 FastMig, send Seven Star LLC your preferred power variant (Synergic or Pulse), cooling type, cable length and accessory list. Our welding equipment desk in Muscat will confirm the configuration, share the manufacturer brochure attached on this page, and arrange delivery and commissioning support for projects in Oman and across the GCC.
