Brand: EWM

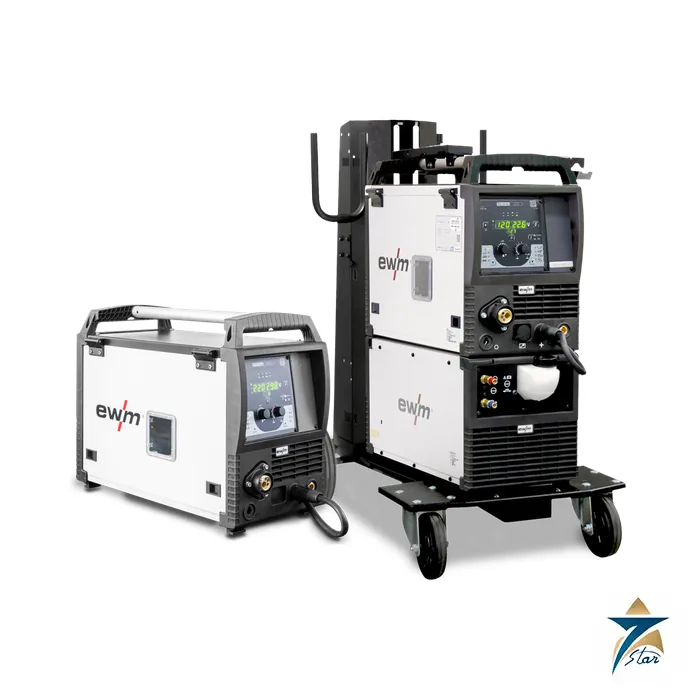

EWM Picomig 305 puls TKM Pulse MIG/MAG Welding Machine
Description
Three-phase 300 A pulse MIG/MAG machine in a portable case
The EWM Picomig 305 puls TKM is a compact, portable multi-process welding machine from the EWM Picomig series. It runs on a three-phase 400 V supply, delivers 5 to 300 A and combines pulse and standard MIG/MAG with EWM’s rootArc and forceArc processes, TIG with lift arc, and MMA. The wire feeder is built into the same housing and takes a 15 kg wire spool of up to 300 mm diameter, so the machine can be carried by its handle, placed on a Trolly or mounted in a workshop booth.
TKM means the machine is portable and compact and can be operated with gas-cooled or water-cooled torches. The optional cool50 U40 cooling module is fitted underneath the power source in the modular casing system.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | EWM |
| Model | Picomig 305 puls TKM |
| Processes | rootArc / rootArc puls, forceArc / forceArc puls, standard MIG/MAG, pulse, TIG, MMA, end-crater fill |
| MIG/MAG current setting range | 5-300 A |
| Duty cycle at 40 °C | 300 A at 35%; 240 A at 60%; 190 A at 100% |
| Open circuit voltage | 80 V |
| Mains voltage / tolerance | 3 x 400 V (-25% to +20%), 50/60 Hz |
| Wire feed speed | 0.5-25 m/min |
| Factory-installed rolls | 1.0 / 1.2 mm UNI (steel) |
| Spool diameter | D300 (15 kg) |
| Torch connection | Euro torch connector |
| Insulation class / protection | H / IP23 |
| EMC class | A |
| Dimensions L x W x H | 636 x 298 x 482 mm |
| Weight | 29.5 kg |
| Standards | IEC 60974-1, -5 and -10 CL.A |
| Optional cool50 U40 cooling unit | 1,000 W at 1 l/min, 3.5 bar centrifugal pump, IP23, 695 x 298 x 329 mm, 21 kg |
Arc processes and wire feed
The pulse version includes all processes at no extra charge, with characteristics pre-programmed for low to high-alloy steel and aluminium. rootArc is intended for root passes with easier gap bridging and for filler and cap passes, while forceArc gives a concentrated, high-performance arc with deep penetration. End-crater fill closes the crater at the end of the seam. A Synergic TKM version without pulse is also offered and keeps rootArc, forceArc, standard MIG/MAG, TIG and MMA.
The EWM eFeed four-roll drive feeds solid and flux-cored wires; the welding polarity can be reversed without tools for self-shielded flux-cored wire, and a cavity in the rear panel accepts a Rolliner guide for drum feed. The JOB list is printed on the inner flap of the wire space.
Picomig range and where the 305 fits
| Model | Supply | Range | 100% duty cycle | Weight |
|---|---|---|---|---|
| Picomig 185 puls TKG | 1 x 230 V | 5-180 A | 100 A | 23.8 kg |
| Picomig 225 puls TKG | 1 x 230 V | 5-220 A | 150 A | 24 kg |
| Picomig 305 puls TKM | 3 x 400 V | 5-300 A | 190 A | 29.5 kg |
| Picomig 355 puls TKM | 3 x 400 V | 5-350 A | 270 A | 34.4 kg |
The 305 suits maintenance crews and fabricators who need pulse welding on stainless steel and aluminium as well as rootArc for pipe roots, but do not need the higher continuous rating of the
.Documents and quotation
The attached EWM Picomig series brochure contains the technical data overview for all Picomig models and the cool50 U40 cooling module. For a quotation, state the pulse or Synergic version, gas or water cooling, Trolly model, torch type and wire diameter. Other machines are listed under MIG/MAG welding machines.
Datasheets & Documents
- Brochure EWM Picomig series brochure (EN, 053-100199-00001) Download
Reviews (0)
About brand
EWM is a German manufacturer of arc welding equipment, founded in 1957 and headquartered in Mündersbach in the Westerwald region. Its range covers MIG/MAG, TIG and MMA power sources, welding torches, consumables and automation, supported by the ewm Xnet welding management software. Seven Star LLC is an independent supplier in Muscat and lists the EWM Titan XQ 400 puls D multi-process MIG/MAG machine.
EWM product groups
The manual welding program includes the Titan XQ, Phoenix and Taurus MIG/MAG families, TIG and electrode machines, wire feeders and torches. EWM also offers cobot and robot welding systems, welding consumables and accessories. The headquarters houses research and development, production and quality assurance across three plants, with further factories in China and the Czech Republic.
Ordering EWM equipment: what we need
Give the full machine designation, including compact or decompact version and gas or water cooling, plus the mains voltage at site. List the wire feeder, interconnection hose package length, torch and any remote control you need. For a replacement unit, send a photo of the rating plate. We check the configuration against EWM documentation before quoting.
Related products
Frequently Asked Questions
What does TKM mean on the Picomig 305?
TKM stands for a portable, compact machine that can be used with gas-cooled or water-cooled torches.
What is the duty cycle of the Picomig 305 puls TKM?
300 A at 35%, 240 A at 60% and 190 A at 100% at 40 °C.
Which supply voltage does it need?
3 x 400 V with a tolerance of -25% to +20%, 50/60 Hz.
Which wire spool does it take?
D300 spools of up to 15 kg; rolls for 1.0 and 1.2 mm steel wire are fitted ex works.
Which processes are included?
rootArc and rootArc puls, forceArc and forceArc puls, standard and pulse MIG/MAG, TIG, MMA and end-crater fill.
