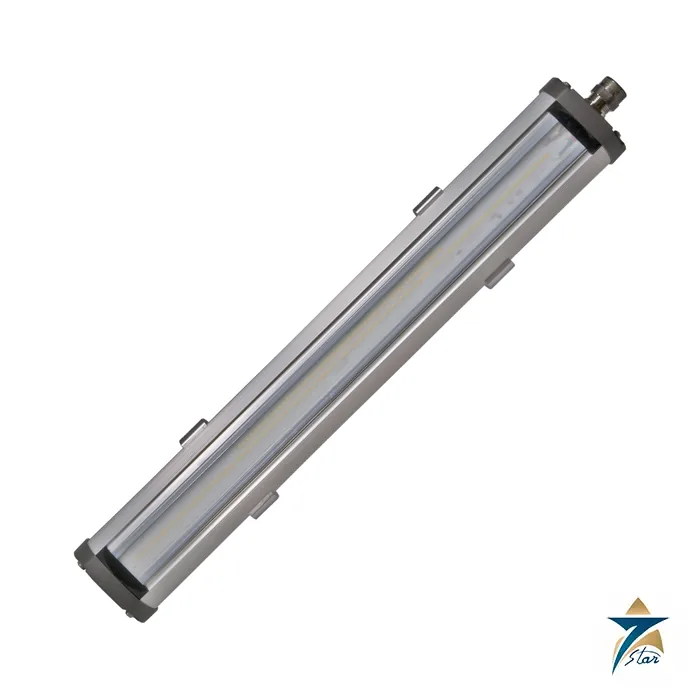

Cortem LIFEX-M Ex LED Linear Lighting Fixture

Name: Cortem LIFEX-M Ex LED Linear Luminaire – Datasheet & Quote
Brand: Cortem
SKU: LIFEX-M

Description

Native LED linear luminaire for hazardous corridors, plant rooms and offshore decks

The Cortem LIFEX-M is a linear LED luminaire in extruded aluminium for hazardous areas. Cortem describes it as the first native LED linear fixture of its range, designed to be compact, light and easy to install or retrofit, with a bracket system that has no fixed fixing distance and lets the luminaire be rotated by minus 30, 0 or plus 30 degrees.

The range comes in two versions. The LifEx-ME is marked II 2GD Ex db eb mb IIC T.. Gb and Ex tb IIIC T..°C Db for Zones 1, 2, 21 and 22. The LifEx-MN is marked II 3G Ex nR IIC T.. Gc with the same dust marking, for Zones 2, 21 and 22. Both are rated IP66, and Cortem states that the fixtures have passed vibration, surge and soft-start tests beyond the minimum standards.

Technical specifications of the LIFEX-M series

Parameter	Specification
Manufacturer	Cortem S.p.A., Italy
Versions	LifEx-ME (Zone 1, 2, 21, 22) and LifEx-MN (Zone 2, 21, 22)
Marking (ME)	II 2GD Ex db eb mb IIC T.. Gb; Ex tb IIIC T..°C Db; IP66
Marking (MN)	II 3G Ex nR IIC T.. Gc; II 2D Ex tb IIIC T..°C Db; IP66
Certificates	ATEX CML 20 ATEX 3018X (ME), CML 20 ATEX 3019X (MN); IECEx CML 20.0008X; UKEX and INMETRO available; UL pending
Rated voltage / frequency	110 to 277 VAC (see selection table) / 50 to 60 Hz
Power / light output	15 to 120 W; about 1,865 to 16,029 lm across the selection table
Efficacy	Up to 156 lm/W (overall)
Ambient temperature	Down to -60 °C for models without battery; -20 or -60 °C for emergency versions
Lengths	About 541, 840, 1,398 and 1,738 mm (section 103 x 132 mm)
Impact rating	IK09; IK10 with protective cage
Body / glass	Aluminium alloy extrusion with marine-resistant finish / tempered glass
Gaskets / screws	Acid- and hydrocarbon-resistant silicone / stainless steel
Cable entries	Maximum 4 entries of 25.5 mm; standard version has 2 holes of 20.5 mm with NAV20IB gland and PLG1IB plug
Warranty	5 years (subject to Cortem terms)

Selection table highlights (ME version)

Cortem tabulates real power, rated power, supply voltage, temperature class, lumen output, efficiency and weight for each code. The following rows are taken from the ME table at 40 degrees C ambient.

Code	Real power	Supply	Lumens	Temp. class / surface	Length
LifEx-ME-0315	13.9 W	220-240 V	1,865 lm	T6 / 57 °C	541 mm
LifEx-ME-0630	26.2 W	110-277 V	3,677 lm	T6 / 80 °C	840 mm
LifEx-ME-0660	54.5 W	110-277 V	8,011 lm	T5 / 95 °C	840 mm
LifEx-ME-1230	29.0 W	110-277 V	4,112 lm	T6 / 60 °C	1,398 mm
LifEx-ME-1290	79.3 W	120-277 V	12,228 lm	T5 / 89 °C	1,398 mm
LifEx-ME-12120	102.6 W	220-277 V	16,029 lm	T5 / 91 °C	1,398 mm
LifEx-ME-1590	78.6 W	120-277 V	11,926 lm	T5 / 89 °C	1,738 mm

The code logic reads as length (03 for 300 mm, 06 for 600 mm, 12 for 1200 mm, 15 for 1500 mm) followed by power. Suffixes N, E, NH and EH select normal plus emergency, emergency only, and the -60 degree C battery-heater versions.

Options and installation points

Cortem offers a pole fastening mechanism, a protective cage, coloured LED strips, a battery box for easier emergency battery replacement, wiring-through versions, DALI dimming on request, and cable glands, plugs and Fast-Ex electrical connectors. Emergency units use a Ni-MH battery of 1.8 or 3 Ah with a green charge indicator.

Check the temperature class against the highest local ambient, because the surface temperature rises with ambient and with power. Install to EN 60079-14, use glands and plugs that carry the same certification, and keep the certificate with the plant records.

Documents and quotation

The attached document is the Cortem LifEx-M series datasheet from the Cortem lighting catalogue (pages A.42 to A.48, ED.2026). Certificates for ATEX, IECEx and UKEX are published separately by Cortem.

For a quotation, send the full code, supply voltage, mounting and any emergency or cage requirement. For related items see Automation Accessories.

Datasheets & Documents

Datasheet Cortem LifEx-M series datasheet (lighting catalogue pages A.42-A.48, ED.2026) Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Cortem is an Italian manufacturer of electrical equipment for environments with a risk of explosion and fire. Cortem S.p.A., the main company of Cortem Group, was founded in 1968 in Villesse, Italy, and the group today supplies industrial plants, offshore platforms, refineries and shipyards with certified products for hazardous areas.

Explosion-protected product range

The catalogue covers junction boxes in aluminium, stainless steel and GRP, control and command stations, metal cable glands and connectors, plugs and sockets, LED floodlights, linear and high-bay luminaires, hand lamps, signalling and obstruction lights, and weatherproof series equipment. Products are certified to ATEX and IECEx, with UKEX and other schemes available according to the model.

Applications and documentation

Typical sectors named by the company include oil and gas, chemical and pharmaceutical plants, mining, shipbuilding and traditional and green energy. Each product family has a datasheet with the marking, zones, temperature classes and certificate numbers, so the equipment can be matched to a hazardous area classification before ordering.
