Brand: Wolf Safety

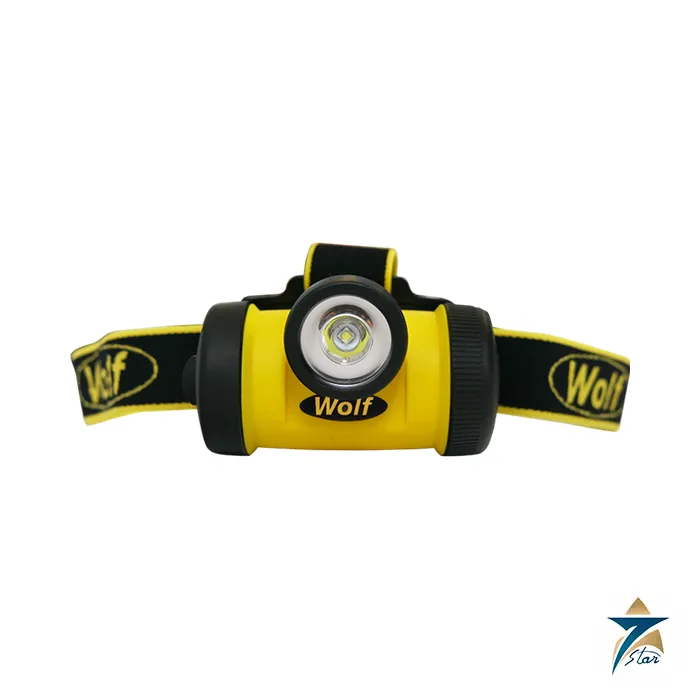

Wolf Safety HT-650 Zone 0 ATEX LED Headtorch
Description
Hands-free Zone 0 headtorch for confined and awkward hazardous-area work
The Wolf Safety HT-650 is an intrinsically safe LED headtorch certified for use in gas Zones 0, 1 and 2 and dust Zones 21 and 22. It is CE marked to the ATEX Directive and certified under the IECEx scheme, and its approval code also covers mining under Group I M1.
The HT-650 is built for hands-free work where access is difficult, such as climbing, crawling or working inside vessels and tank farms. It weighs 180 grams including three AA cells and is moulded from chemical-resistant, high-impact thermoplastic with a shatterproof polycarbonate lens. A tilt mechanism lets the wearer angle the beam, and the torch can be switched with one hand.
Technical specifications of the HT-650
| Parameter | Specification |
|---|---|
| Manufacturer | Wolf Safety Lamp Company, Sheffield, UK |
| Product reference | HT-650 (ATEX LED Headtorch, Zone 0) |
| Industrial code | I M1 / II 1G Ex ia I Ma / IIC T4/T3 Ga IP67; Ex ib IIIB T155 °C Db |
| Mining code | I M1 Ex ia I Ma IP67 |
| Type of protection | Ex ia intrinsic safety |
| Gas area | Zones 0, 1 and 2; gas groups IIA, IIB, IIC; T4/T3 |
| Dust area | Zones 21 and 22; group IIIB; maximum surface temperature 155 °C |
| Certificates | Baseefa 10ATEX0067X; IECEx BAS 10.0023X |
| Light source | High power LED, up to 130 lm, 25,000+ hours |
| Beam | Spot about 22° plus extra wide fringe about 100° |
| Peak intensity | 493 lux at 1 m and 67 lux at 2.5 m (spot) |
| Power source | 3 x 1.5 V AA (LR6) alkaline primary cells to IEC 60086 (3 x HT-210) |
| Light duration | Up to 17 hours |
| Ambient temperature | -20 to +40 °C |
| Ingress protection | IP67 |
| Weight with cells | 0.180 kg |
What is supplied and how the beam behaves
The HT-650 is supplied with an adjustable, removable fabric headband, a washable silicone rubber strap that grips a hard hat, and four helmet clips. The beam combines a spot of about 22 degrees with a wide fringe of about 100 degrees. Wolf quotes 32 lux at 1 m and 8 lux at 2.5 m for the fringe, which gives a usable pool of light around the work position while the spot lights the point of focus.
Because it uses primary AA cells, there is no charging infrastructure to manage, and the datasheet quotes up to 17 hours per set. Wolf also lists a NATO-codified version, HT-650MOD, which is available only to MOD customers.
Choosing and using a Zone 0 headtorch
Zone 0 equipment has to be the right category for atmospheres that are present continuously or for long periods, so confirm that the plant classification permits the HT-650 and that its T4 or T3 class suits the gases present. The datasheet says the temperature class depends on the battery type, so use only the cells specified by Wolf and follow the instruction manual.
Change batteries only in a safe area, inspect the lens and body for cracks before each shift, and keep the certificate documents in the equipment file.
Documents and quotation
The attached document is the Wolf Safety ATEX LED HT-650 Zone 0 Headtorch product information sheet (SL052 DF602 issue 7). Certificates and the instruction manual are published separately by Wolf Safety.
For a quotation, send the quantity and any requirement for the MOD version. For related lighting see Automation Accessories.
Datasheets & Documents
- Datasheet Wolf Safety ATEX LED HT-650 Zone 0 Headtorch product information sheet (SL052 issue 7) Download
Reviews (0)
About brand
Wolf Safety is a Sheffield manufacturer of ATEX and IECEx certified lighting for hazardous areas, with a history in mining safety lamps going back more than a century. Its portable, temporary, installed and area luminaires are used by maintenance, inspection and shutdown teams working where flammable gas, vapour or dust may be present.
Hazardous-area lighting ranges
The Wolf Safety catalogue covers rechargeable handlamps and torches, headtorches, linkable temporary floodlights and luminaires, tank lighting kits, installed linear, floodlight, highbay and bulkhead luminaires, and towerlite area lights. Supporting products include ATEX transformers, splitter boxes, cable reels, extension cables and ventilation fans.
Certification and application
Wolf Safety publishes ATEX, IECEx and UKEX certificates alongside its datasheets, so buyers can check the zone, gas group and temperature class before a lamp is issued to a work crew. Typical uses include tank and vessel entry, plant turnarounds, refinery and offshore inspection rounds, and emergency lighting where a hazardous atmosphere is possible.
Sourcing through Seven Star LLC
Seven Star LLC supplies Wolf Safety lighting to customers in Oman and the GCC and can quote against the datasheet model, voltage and zone requirements of each project.
Related products
Frequently Asked Questions
Is the HT-650 certified for Zone 0?
Yes. It is certified for gas Zones 0, 1 and 2 and dust Zones 21 and 22, and also for mining under Group I M1.
What batteries does it use?
Three AA alkaline (LR6) primary cells to IEC 60086.
How long does a set of batteries last?
Up to about 17 hours.
What is its ingress protection?
IP67, so it is dust tight and protected against temporary immersion.
How heavy is it?
180 grams including the batteries.
