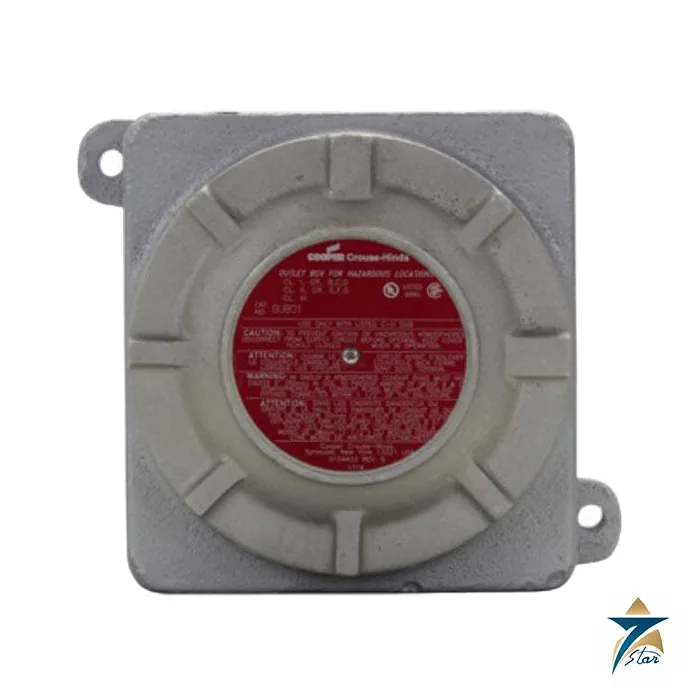

Cooper Crouse-Hinds GUB01 SA Explosionproof Junction Box
Overview
Cooper Crouse-Hinds GUB01 is an explosionproof and dust-ignitionproof conduit junction box from the GUB series, built for threaded rigid conduit systems operating in Class I, II, and III hazardous locations. Unlike the larger GUE range, the GUB01 is sized around a compact 6-1/2 x 7 x 5-3/4 inch body with a 5-3/8 inch cover opening, making it the go-to choice where a full splice, pull, or equipment enclosure is needed but panel or skid space is limited. The box arrives with 1-1/2 inch and 3/4 inch conduit openings drilled and tapped at the factory, letting electricians land conductors and continue conduit runs without on-site machining, which shortens installation time on both new-build and brownfield hazardous-area projects.
Working closely with plant engineers in the region, Seven Star LLC proudly supplies the GUB01 explosionproof junction box, together with the wider GUE and GUB families, to process plants, EPC contractors, and panel builders across the Sultanate of Oman and the broader GCC. Every GUB01 shipped through Seven Star LLC carries full manufacturer certification, warranty coverage, and local technical support – from conduit sizing advice to gasket and hardware replacement – ensuring the enclosure performs to its rated classification for the life of the installation.
Operating Principle of the Cooper Crouse-Hinds GUB01
The Cooper Crouse-Hinds GUB01 operates as a flameproof containment vessel rather than active device: its heavy cast-iron body and machined flame-path joints are engineered so that if an internal arc or spark ignites a flammable atmosphere that has entered the enclosure, the resulting explosion is contained within the box. Hot combustion gases are forced to cool as they travel along the long, narrow, precisely machined flame path between the cover and the body before they can reach the surrounding atmosphere, dropping below the ignition temperature of the external gas or dust before any flame or spark actually escapes. This is the defining principle behind every Ex d flameproof enclosure, and it is why dimensional tolerances on the cover-to-body joint are held to fractions of a millimeter at the factory.
Functionally, the GUB01 serves as a splice box, pull box, or equipment and device enclosure within a threaded rigid conduit run, housing terminal blocks, cable splices, or small instrumentation directly inside the hazardous area rather than requiring a remote junction outside the classified zone. Because the enclosure has no moving parts and no wear mechanism, its explosionproof integrity depends entirely on correct assembly – properly torqued cover bolts, an undamaged flame path, and conduit runs sealed with an appropriate sealing fitting on either side – which is why Seven Star LLC provides installation guidance alongside every GUB01 supplied to site.
Engineering Design of the Cooper Crouse-Hinds GUB01
The Cooper Crouse-Hinds GUB01 body is cast from Feraloy iron alloy, Crouse-Hinds’ corrosion-resistant proprietary alloy, paired with a copper-free aluminum cover that keeps overall weight manageable for panel and skid mounting. The enclosure measures approximately 6-1/2 x 7 x 5-3/4 inches with a 5-3/8 inch cover opening, giving technicians generous internal access for terminating conductors, mounting terminal blocks, or fitting small instruments. Conduit entry is via 1-1/2 inch and 3/4 inch openings that arrive drilled and tapped from the factory, eliminating the need for field drilling that could otherwise compromise the enclosure’s certification if not executed to exact tolerance.
The threaded cover seats onto a precision-machined flame path and is secured with corrosion-resistant hardware rated for outdoor exposure, allowing the GUB01 to be mounted indoors or outdoors without a secondary weatherproof housing. Its compact footprint relative to the larger GUE series makes the GUB01 the preferred specification for motor terminal boxes, local instrument junctions, and control panel interconnects where a full-size splice box would not fit, while still delivering the same Class I, II, and III explosionproof and dust-ignitionproof protection.
Key Features
The Cooper Crouse-Hinds GUB01 combines a compact, code-compliant enclosure with features suited to demanding hazardous-area wiring work:
- The Cooper Crouse-Hinds GUB01 functions as a splice box, pull box, or equipment and device enclosure within threaded rigid conduit systems.
- 5-3/8 inch cover opening on a 6-1/2 x 7 x 5-3/4 inch body provides ample internal working space for terminations.
- 1-1/2 inch and 3/4 inch conduit openings are drilled and tapped at the factory, avoiding on-site machining.
- The Cooper Crouse-Hinds GUB01 body is cast from Feraloy iron alloy with a copper-free aluminum cover for corrosion resistance and reduced weight.
- Precision-machined flame-path joint contains internal arcing and cools combustion gases before they reach the external atmosphere.
- Rated for indoor and outdoor installation without requiring a secondary weatherproof enclosure.
- The Cooper Crouse-Hinds GUB01 is certified to UL 1203 and CSA C22.2 for Class I Division 1 and 2 Groups B, C, D, Class II Division 1 Groups E, F, G, Class II Division 2 Groups F, G, and Class III, NEMA 4/7B/7C/7D/9E/9F/9G.
- Compact footprint compared with the larger GUE series suits confined motor, panel, and skid-mounted installations.
Industrial Applications
The GUB01 is specified wherever a compact, code-compliant splice or pull box is needed inside a threaded rigid conduit run in a hazardous area – motor terminal connections, local instrument junctions, and control panel interconnects on process skids across refineries, gas plants, and offshore platforms. In Oman’s oil and gas sector, GUB01 boxes are commonly installed on wellhead instrumentation, pump and compressor motor terminations, and cable pull points within Class I Division 1 and 2 process areas, where their compact size allows placement in locations too tight for larger junction enclosures. The box is equally suited to LNG trains, gas gathering stations, and offshore platform electrical rooms where every additional inch of panel space matters.
With fast quotation turnaround and technical support, Seven Star LLC distributes the GUB01 and the complete GUB/GUE junction box range to EPC contractors, panel builders, and maintenance teams across Muscat, Sohar, and Salalah, and throughout the wider GCC. The GUB01 also sees regular use in desalination plants, power generation facilities, and industrial water treatment sites in Oman, wherever hazardous-area conduit systems require a certified splice or pull box backed by technical support.
Technical Specifications
The table below summarizes the key specifications of the Cooper Crouse-Hinds GUB01 explosionproof junction box:
| Parameter | Specification |
|---|---|
| Model | Cooper Crouse-Hinds GUB01 |
| Series | Crouse-Hinds GUB Junction Box |
| Type | Explosionproof / Dust-Ignitionproof Conduit Junction Box |
| Cover Opening | 5-3/8 inch |
| Overall Dimensions | Approx. 6-1/2 x 7 x 5-3/4 inch |
| Conduit Openings | 1-1/2 inch & 3/4 inch, drilled and tapped |
| Body Material | Feraloy iron alloy |
| Cover Material | Copper-free aluminum |
| Hazardous Location Rating | Class I Div 1 & 2 Groups B, C, D; Class II Div 1 Groups E, F, G; Class II Div 2 Groups F, G; Class III |
| NEMA Rating | NEMA 4/7B/7C/7D/9E/9F/9G |
| Standards | UL 1203, CSA C22.2 |
| Mounting | Indoor / Outdoor |
Request a Quote for Cooper Crouse-Hinds GUB01 SA Explosionproof Junction Box
Seven Star LLC stocks the Cooper Crouse-Hinds GUB01 explosionproof junction box for immediate quotation and regional dispatch. Submit a formal RFQ for the Cooper Crouse-Hinds GUB01 to receive current lead time and availability, request the full manufacturer datasheet and hazardous-area certification package, or contact our instrumentation and electrical division directly for sizing assistance across the GUB and GUE ranges. With engineering support in Muscat, Seven Star LLC supplies the product on request with manufacturer documentation and technical support with selection before ordering.
Related Products
- Datasheet Cooper Crouse-Hinds GUE/GUB Junction Boxes Datasheet Download
Cooper Crouse-Hinds product families listed here
The catalog numbers on this page follow the manufacturer's own series names:- Condulet conduit outlet bodies, such as the Form 8 C28 and the Form 5 LB25
- EYS conduit sealing fittings (EYS3, EYS5) and ECGJH flexible couplings
- GUB and GUE explosionproof junction boxes, and the box listed as GUP315
- EDS and EFS explosionproof control stations and N2S non-metallic, factory-sealed stations
- Arktite receptacles, for example the 30 A AR342
Where Crouse-Hinds explosionproof equipment is used
Most of these parts belong to rigid conduit systems in classified areas: refinery units, gas compression and metering stations, tank farms, loading racks, paint and solvent handling, and offshore modules across the GCC. The listed series are built around the North American Class and Division system, but the rating differs by item: N2S stations are marked for Class I, Division 2, and the AR342 receptacle is a watertight type for ordinary locations. A Cooper Crouse-Hinds junction box or control station should therefore be selected against the area classification drawing, not by enclosure size alone.Ordering Cooper Crouse-Hinds parts: what we need
Send the full catalog number from the nameplate or the casting, including every suffix. For conduit bodies and seals, add the hub size and thread, and state the material, iron alloy or copper-free aluminum. For control stations, list the operators, contact blocks and legend plates. For receptacles, give the amperage, the number of wires and poles, and the mating plug. A nameplate photo and the area classification let us confirm the match before quoting.Browse Cooper Crouse-Hinds products by category: Automation Accessories, Pipes & Fittings, Electrical & Power Modules.
