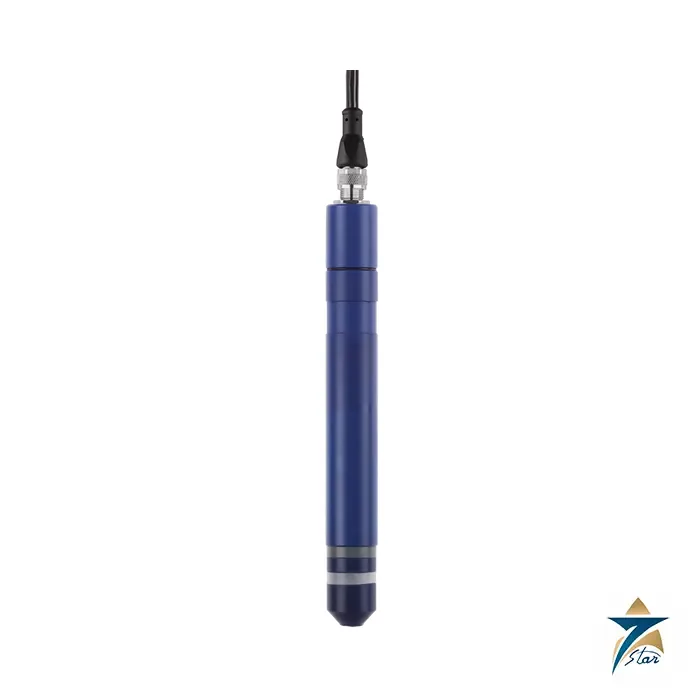

JUMO tecLine ClO2 and O3 Chlorine Dioxide and Ozone Sensors

Name: JUMO tecLine ClO2 and O3 Sensors 202634 | Seven Star LLC
Brand: JUMO
SKU: tecLine ClO2 and O3

Description

Chlorine dioxide and ozone sensors in analog or digital form

The JUMO tecLine ClO2 and O3 series (type 202634) groups eight membrane-covered amperometric sensors for chlorine dioxide and ozone in aqueous solutions. The chlorine dioxide sensors are intended for water from chlorite/chlorine and chlorite/hydrochloric acid generator plants; the ozone sensors can measure electrolytically generated ozone. Each sensor has integrated electronics that give a temperature-compensated 4 to 20 mA signal or a digital Modbus RTU signal. The standard versions use a hydrophobic PTFE membrane, whereas the chemical-resistant versions use an elastomer membrane that tolerates surfactants, bottle-washer and CIP chemicals and seawater. Like all JUMO membrane sensors in the family they cannot prove the absence of the measured disinfectant.

Technical specifications

Parameter	Specification
Type	202634 JUMO tecLine ClO2 + O3, two-electrode amperometric, membrane-covered
Versions	/45 ClO2 4-20 mA; /47 ClO2 4-20 mA chemical-resistant; /50 O3 4-20 mA; /52 O3 4-20 mA chemical-resistant; /60 O3 digital; /62 O3 digital chemical-resistant; /65 ClO2 digital; /67 ClO2 digital chemical-resistant
Ranges (order code)	10: 0 to 0.5; 20: 0 to 2; 25: 0 to 5; 35: 0 to 10; 37: 0 to 20 mg/l (ppm); /45 offers 0.5, 2, 5, 10 mg/l; /65 offers 2 and 20 mg/l
Resolution	0.001 mg/l on 0.5 or 2 mg/l ranges; 0.01 mg/l on higher ranges
Supply	Analog: DC 12 to 30 V, burden (UB – 11 V)/0.02 A, galvanic isolation required; digital: DC 9 to 30 V
Connection	Analog: 2-pole terminals 2 x 1 mm2; digital: 5-pole M12 flange connector, Modbus RTU
Response t90	About 15 s (standard ClO2 versions); about 60 s (chemical-resistant ClO2 version /47)
Settling and drift	About 1 h at first start; slope drift about -1 % per month (25 °C, pH 7.2)
Measuring water	0 to 45 °C standard (0 to 50 °C for /47); environment 0 to 55 °C; no ice crystals
pH range	pH 1 to pH 12; zero-point adjustment not required
Cross-sensitivity (ClO2 sensors)	Cl2 factor 0.35 and O3 factor 3 (standard); Cl2 factor 0.1 and O3 factor 25 (/47)
Pressure	Absolute max. 2 bar, relative max. 1 bar; pressure-free operation recommended
Dimensions and weight	Ø 25 mm; 220 mm (analog) or 205 mm (digital); about 125 g
Membrane materials	PTFE (standard) or elastomer (chemical-resistant); body PVC-U, stainless steel 1.4571
Stock version	202634/50-20 ozone, 4-20 mA, 0 to 2 mg/l, part no. 00392202 (3 working days)

Selecting the sensor version

The code is 202634/ extension – range, for example 202634/45-20 for chlorine dioxide, 4 to 20 mA, 0 to 2 mg/l. Extensions 45 and 65 are the general-purpose chlorine dioxide sensors with a PTFE membrane, intended for swimming-pool, drinking, service and process water that contains no surfactants. Extensions 47 and 67 use the chemical-resistant membrane for bottle washers, rinsers, CIP plants and seawater where surfactants are present. Ozone sensors follow the same logic: 50 and 52 are analog, 60 and 62 are digital. The two-wire types ship with a membrane cap, electrolyte, abrasive paper for cathode cleaning and the manual. Because the code is not modular, JUMO checks free combinations for feasibility. Spares are matched to the version: parts set 00392331 for /45, /50, /60 and /65; 00753804 for /47 and /67; 00762731 for /52 and /62; plus electrolyte 00392332 (ClO2) or 00392333 (O3), 100 ml.

Installation notes and compatible instruments

JUMO recommends the individual flow fitting 00392611, which delivers about 15 cm/s inflow at roughly 30 l/h, together with flow monitor 00605507 and a mounting bracket. A combination fitting (00607325) holds several sensors and has an integrated flow monitor. Digital versions use M12 cables of 1.5, 5 or 10 m, and several digital sensors on an AQUIS touch need a digiLine hub with an external supply. Analog versions connect to the AQUIS 500 AS or the published dTRANS AS 02. Typical locations are swimming pools, drinking-water disinfection, cooling-tower and process water treatment, and bottling plants in hot regions. Sensors should not see pressure fluctuations. See the liquid analysis sensors category for further disinfectant sensors.

Send the target gas (chlorine dioxide or ozone), the measuring range, the water temperature and pH, and any chlorine or ozone that may also be present, because the cross-sensitivity factors differ between standard and chemical-resistant versions. State the analog or digital connection, the cable length for digital versions, and the instrument that will evaluate the signal. The sensor is supplied with a PTFE or elastomer membrane, both of which need regular replacement. A single stock version, the 2 mg/l ozone sensor with 4 to 20 mA output, is available within three working days, while other versions follow the production lead time stated by the manufacturer.

Both measurands are unstable, so sampling should be fast and close to the injection point, with the flow rate held constant in the fitting. A stable inflow, a clean membrane and a correct zero reading after first start-up of about one hour are the main factors for reliable readings.

Documents and quotation

The hosted document is JUMO data sheet 202634 (17 pages, English). Choose the exact extension and range, and confirm membrane type for your chemicals before ordering. Seven Star LLC is an independent supplier in Muscat; send the order code and application details for a quotation.
