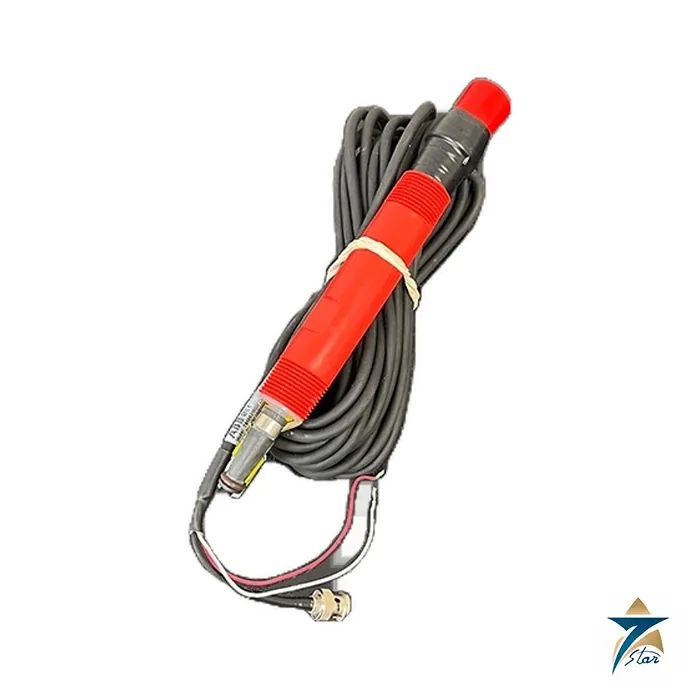

ABB TB556.1.3.1.15.T.05 pH/ORP Sensor

Overview

ABB TB556.1.3.1.15.T.05 is a genuine ABB TB556 series Kynar-body pH/ORP (redox) sensor, engineered for continuous in-line water quality monitoring in demanding industrial process environments. Renowned for ruggedness, longevity and measurement accuracy, the TB(X)5 sensor family from ABB outperforms conventional glass-bodied sensors in aggressive chemical dosing, wastewater and process water applications, making the ABB TB556.1.3.1.15.T.05 a preferred choice for plants that cannot tolerate frequent sensor replacement or calibration drift.

Backed by manufacturer datasheet documentation, Seven Star LLC proudly supplies genuine ABB TB556.1.3.1.15.T.05 pH/ORP sensors to industrial plants throughout Oman and the GCC. Every sensor shipped from our Muscat-based facility is sourced directly through ABB’s trusted supply channel, ensuring authentic Kynar body construction, correct glass electrode chemistry and full compatibility with existing ABB AX400, AW500 and AWT series analyzer transmitters already installed across regional water treatment and process facilities.

Measurement Principle

The ABB TB556.1.3.1.15.T.05 measures pH or oxidation-reduction potential using a glass measuring electrode paired with a reference electrode, both housed within a chemically resistant Kynar (PVDF) body. When immersed in process liquid, the glass membrane develops a small electrochemical potential proportional to the hydrogen ion activity of the solution, which is compared against the stable reference electrode potential to generate a millivolt signal that the connected analyzer converts into a calibrated pH or ORP reading.

Because the sensing element relies on electrochemical equilibrium rather than mechanical or optical measurement, the TB556.1.3.1.15.T.05 delivers fast response times and stable readings even in fouling-prone or chemically aggressive process streams. The Kynar body construction resists attack from acids, caustics and oxidizing chemicals encountered in dosing, neutralization and effluent treatment applications, extending sensor service life well beyond that of standard glass or epoxy-bodied alternatives and reducing the frequency of costly sensor replacement.

Engineering Design of the ABB TB556.1.3.1.15.T.05

The sensor combines a precision glass pH or ORP measuring element with ABB’s solid-state Next Step reference cell, both integrated into a rugged Kynar housing that resists cracking, swelling and chemical attack under continuous submersion. The 3/4 in. NPT process connection fits standard insertion assemblies, flow chambers and submersion holders, allowing straightforward retrofit into existing ABB sensor housings without piping modification.

Electrical connection is made via a shielded, low-noise cable terminated for direct interface with ABB AX400, AW500 series analyzers, with cable length and connector configuration selected to match the specific installation. The sensor is rated for continuous immersion service across typical process water temperature and pressure ranges, and its design supports both submersion and flow-through insertion mounting configurations commonly used in water treatment and chemical dosing skids.

Reference System and Process Ratings

The ABB TB556.1.3.1.15.T.05 uses ABB’s solid-state Next Step reference, in which the potassium chloride (KCl) electrolyte sits in a solid inner chamber rather than a refillable liquid reservoir, contacting the process through a wood or PTFE junction in flush or notched style. Sealing to the process line is by external O-ring, offered in Viton, EPDM, silicone or Kalrez to suit solvents and strong oxidisers, and temperature compensation is integral, with 3 kΩ Balco and Pt100 variants alongside an uncompensated build for redox duty. ABB rates the series for 0 to 100 °C and 690 kPa (100 psi) at 80 °C, an envelope that covers typical Gulf water treatment line conditions.

The 3/4 in. NPT process connection and insertion depths from 27.9 mm to a maximum of 127 mm let the sensor be set at the correct immersion depth in pipe tees, flow chambers and open tanks without adapters, and the factory-potted cable — 1.5 m (5 ft) as standard, to 9 m (30 ft) on request, terminated as BNC or tinned pin leads — removes a common ingress path in wet installations. Buyers cross-referencing part numbers should note that the TBX556 variant, unlike the TB556.1.3.1.15.T.05, carries a solution ground rod in 316 stainless steel, titanium or Hastelloy B2 for glass- and reference-impedance diagnostics, so plants specifying predictive electrode diagnostics must confirm which body style their analyzer expects.

Key Features

The ABB TB556.1.3.1.15.T.05 pH/ORP sensor delivers dependable performance around the following capabilities:

• Chemically resistant Kynar (PVDF) body withstands aggressive acids, caustics and oxidizing process chemicals.
• Solid-state Next Step reference with a wood or PTFE junction resists fouling and coating drift in demanding process water.
• Fast, stable electrochemical response supports accurate real-time pH and ORP control loops.
• Direct compatibility with ABB AX400 and AW500 series analyzer transmitters simplifies system integration.
• Rugged construction extends service life and reduces sensor replacement frequency versus standard glass sensors.
• 3/4 in. NPT process connection fits common insertion assemblies, flow chambers and submersion holders.
• Shielded low-noise cable minimizes signal interference in electrically noisy plant environments.
• Field-proven TB(X)5 series design backed by decades of documented reliability in tough applications.

Industrial Applications

The ABB TB556.1.3.1.15.T.05 is deployed across wastewater neutralization, cooling tower water treatment, RO desalination pretreatment and chemical dosing control loops where continuous, reliable pH or ORP measurement is essential to process stability. In Oman’s municipal and industrial water treatment facilities, as well as district cooling plants and petrochemical effluent systems across Muscat, Sohar and Salalah, the TB556 sensor provides the accuracy and chemical resistance needed to maintain compliant discharge and process water quality around the clock.

Working closely with plant engineers in the region, Seven Star LLC supplies TB556.1.3.1.15.T.05 sensors on request to water treatment operators, EPC contractors and instrumentation maintenance teams throughout the region, with lead time confirmed at quotation. Facilities across Sohar’s industrial port zone and Salalah’s free zone depend on Seven Star LLC for genuine ABB analytical sensors with confirmed calibration data and traceable sourcing.

Technical Specifications

Request a Quote for ABB TB556.1.3.1.15.T.05 pH/ORP Sensor

Seven Star LLC invites facility engineers and procurement teams across Oman and the GCC to submit a formal RFQ for the ABB TB556.1.3.1.15.T.05 pH/ORP sensor. With fast quotation turnaround and technical support, we supply on request with lead time confirmed at quotation, provide technical datasheets on request, and offer direct access to our analytical instrumentation division for sizing and cross-reference support.
