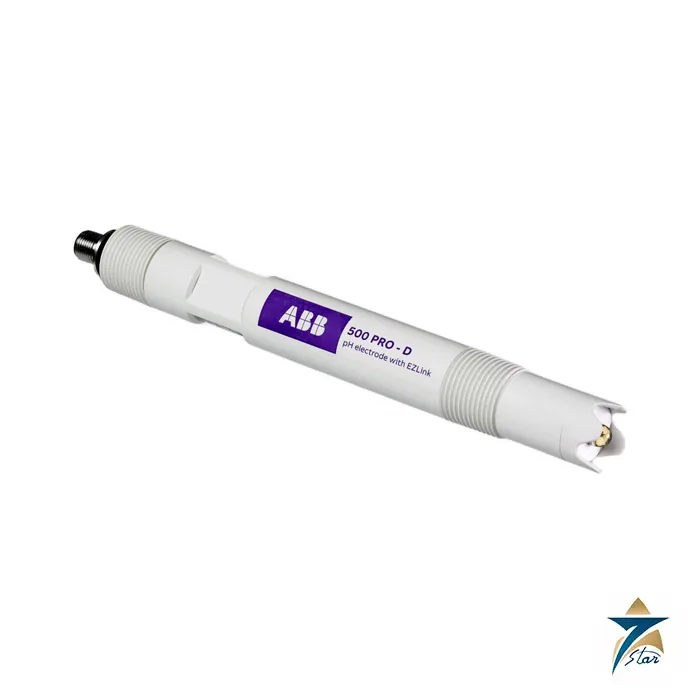

ABB 500 PRO-D pH/ORP digital sensor

Overview

The ABB 500 PRO-D is a digital pH/ORP sensor positioned at the top of ABB’s pH/ORP sensor range, built with smart digital technology in contrast to the analog output of the 100-series sensors (100 GP, 100E, and 100 ULTRA). Its digital signal path, on-board calibration memory, and support for hot-tap installation combine to deliver faster, more stable measurement with proactive diagnostics that the analog-output sensors in ABB’s lineup do not offer.

Seven Star LLC supplies the ABB 500 PRO-D sensor to industrial operators across Oman and the wider GCC as an experienced supply partner for genuine ABB instrumentation. Every unit is supplied on request with manufacturer documentation, and supported locally with configuration and technical support.

Operating Principle

The 500 PRO-D measures pH or ORP using its electrochemical sensing element, but digitizes the signal at the sensor itself rather than transmitting a raw millivolt signal to a remote transmitter. This digital-at-source approach gives the sensor superior immunity to electrical noise over long cable runs, since the signal traveling to the control system is already a stable digital value rather than a sensitive analog millivolt signal susceptible to interference.

Automatic temperature compensation and on-board calibration memory are stored directly in the sensor, so calibration data travels with the sensor itself – useful when sensors are rotated between measurement points or sent out for bench calibration and returned to a different installation location. Real-time diagnostics continuously evaluate sensor condition and transmit that health data alongside the process measurement.

Engineering Design of the ABB 500 PRO-D

Built with robust construction and high chemical resistance, the 500 PRO-D is suited to water treatment plants, chemical processing, pharmaceuticals, and food and beverage industries that need both premium measurement performance and design that resists fouling and scaling over long deployment periods. Its compact design and smart connectivity options integrate cleanly with modern digital process control systems.

The sensor also supports hot-tap installation, allowing removal and replacement without system downtime – a capability shared with ABB’s dedicated TBX Series retractable sensor line, but built directly into the 500 PRO-D’s own design rather than requiring a separate retractable housing. This combination of digital signal quality and service-without-shutdown capability positions the 500 PRO-D as the premium option in ABB’s pH/ORP sensor range.

Key Features

• Digital pH/ORP measurement with superior noise immunity over long cable runs
• On-board calibration memory travels with the sensor
• Automatic temperature compensation
• Real-time diagnostics with proactive maintenance data
• Supports hot-tap installation for service without downtime
• Robust construction with high chemical resistance
• Resists fouling and scaling for extended, consistent measurement
• Smart connectivity for integration with modern digital control systems

Industrial Applications

The 500 PRO-D is used across municipal water quality management, chemical plant production optimization, pharmaceutical manufacturing, and food and beverage processing – applications that benefit from the digital sensor’s proactive diagnostics and hot-tap serviceability where measurement reliability and minimized downtime both carry significant operational value.

Across Oman’s municipal water, chemical, and pharmaceutical sectors, and throughout the wider GCC, Seven Star LLC supplies the 500 PRO-D as a trusted supplier of ABB products to facilities in Muscat, Sohar, and Salalah that require dependable, factory-genuine digital pH/ORP sensors with full local support.

Technical Specifications

When a Digital pH/ORP Sensor Pays Off

A digital sensor is not automatically the right answer for every pH point. The 500 PRO-D earns its place where at least one of these conditions applies:

• The distance between sensor and transmitter is long, or the cable runs through areas with heavy electrical noise such as motor control centres and drive rooms.
• The measurement feeds a critical control loop or a compliance record, where early warning of sensor ageing prevents a bad batch or an off-spec discharge.
• Many sensors are maintained by a small team, so pre-calibrating in a workshop and swapping sensors in the field saves time on site.
• The process cannot be stopped easily, and service without shutdown matters.

For simple, short-cable dosing points in a compact panel, an analog sensor such as the 100E may be enough.

Workshop Calibration and Sensor Rotation

Because calibration data is held in the sensor, sites can run a rotation scheme: calibrate a spare sensor under controlled conditions in the workshop or laboratory, take it to the field, and exchange it with the installed unit. The removed sensor goes back for cleaning, inspection and recalibration. This moves delicate work out of hot, dusty process areas and keeps the measurement point offline for only a few minutes. Label each sensor and keep a simple log of its calibration history so that the diagnostic data can be compared over time.

Commissioning Points

• Confirm that the transmitter or analyser in the plant supports the digital sensor before installation; a digital sensor does not connect to a millivolt analog input.
• Follow the hot-tap procedure and the retraction assembly instructions closely, and observe the pressure and temperature limits of the fitting in use.
• Set diagnostic alarm limits in the control system so that warnings reach the maintenance team, not only the local display.
• Verify the first readings against a portable reference meter or a grab sample.

Using the Diagnostics

The value of the diagnostics comes from acting on the trend. A steadily falling slope, a rising reference impedance or a lengthening response time shows that the sensor needs cleaning or replacement, and allows the work to be scheduled before the reading becomes unreliable.

Applications in Oman and the GCC

In the Gulf the 500 PRO-D suits municipal and desalination product water monitoring, effluent discharge points at industrial estates, chemical injection control, and hygienic processes in food and pharmaceutical plants. Seven Star LLC can supply sensors and spare units for a rotation scheme, and will confirm the matching transmitter, fittings, lead time and documentation from your process details.

Request a Quote for ABB 500 PRO-D pH/ORP digital sensor

Contact Seven Star LLC for a quotation on the ABB 500 PRO-D digital pH/ORP sensor, with manufacturer documentation and local support across Oman and the GCC.
