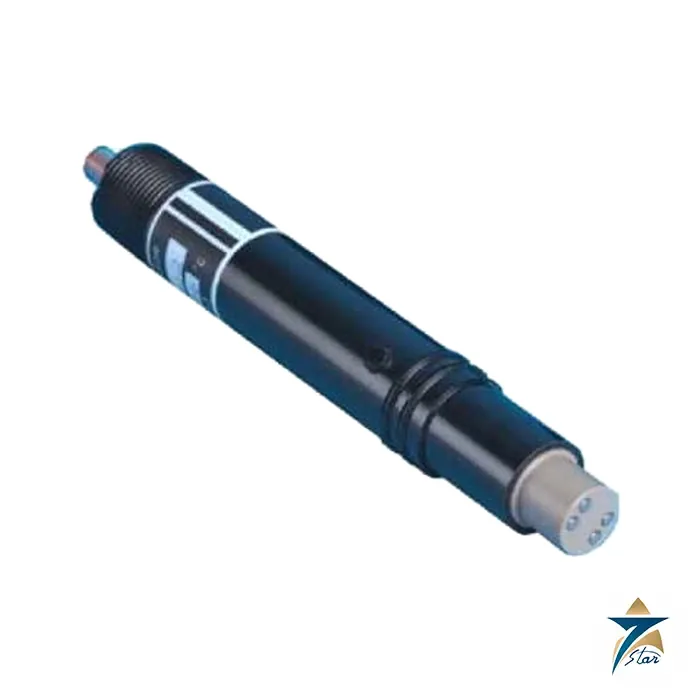

ABB In-line or submersion type, stainless steel electrodes TB454

Overview

The ABB TB454 electrode is a two-electrode contacting conductivity sensor built around a twist-lock receptacle mount, designed for fast, tool-free electrode replacement in continuously operating water systems. Its Ryton (PPS) body and 1-inch NPT twist-lock fitting let maintenance staff swap the sensor element in seconds without disturbing the process piping or receptacle.

Part of ABB’s TB4 conductivity family, the TB454 is purpose-built for cooling towers, wastewater treatment, and packaged water systems where routine electrode servicing needs to be quick and low-skill. Seven Star LLC supplies the TB454 to facilities operations teams across Oman and the GCC.

Operating Principle

The TB454 applies an AC voltage across its two stainless steel electrodes and measures the resulting current through the process fluid, which is proportional to its conductivity. The twist-lock receptacle keeps the electrical connection and process seal intact in the fixed housing while allowing the electrode cartridge itself to be removed and replaced independently — useful when periodic descaling, cleaning, or electrode replacement is part of routine maintenance.

Engineering Design of the ABB TB454

The TB454’s Ryton (PPS) body is chemically resistant and dimensionally stable across a wide operating range, making it well suited to the caustic and scale-forming conditions common in cooling water and wastewater applications. Its 1-inch NPT twist-lock receptacle mount is the sensor’s defining feature: rather than unscrewing a full process fitting, technicians rotate and withdraw the electrode cartridge directly from the fixed receptacle, minimizing downtime and spill risk during servicing. Wetted electrodes are stainless steel, with a PEEK insulator isolating the electrode leads from the body.

Key Features

• Two-electrode contacting conductivity measurement technology
• Twist-lock receptacle mount for tool-free electrode replacement
• 1-inch NPT twist-lock process connection
• Ryton (PPS) body for chemical and thermal stability
• Stainless steel electrodes
• PEEK insulator for reliable electrical isolation
• Fast field servicing without draining or isolating the line
• Compatible with ABB AquaMaster/AX400-series conductivity transmitters
• Purpose-built for cooling tower and wastewater duty

Industrial Applications

The TB454 is widely specified for cooling tower conductivity control in commercial and industrial facilities across Muscat, Sohar, and Salalah, where blowdown must be managed against a conductivity setpoint to control scale and corrosion. Its twist-lock design lets facilities-maintenance staff replace fouled or scaled electrodes quickly during routine rounds, without specialized tools or process shutdown.

Across the GCC’s utilities and packaged-water-treatment sectors, the TB454 is also used in wastewater treatment plants and packaged water systems where reliable, low-maintenance conductivity monitoring supports dosing control, dilution verification, and general water-quality tracking in continuously running equipment.

Technical Specifications

Choosing the TB454 for Water Systems

The TB454 is selected mainly for its twist-lock receptacle design, which lets a technician remove and refit the sensor element without disturbing the pipework. It is a practical choice for utility water duties rather than hygienic or highly corrosive service. Before ordering, confirm whether the receptacle is already installed on site or needs to be supplied, the conductivity range of the water, and the transmitter that will read the sensor.

• Cooling tower blowdown control based on conductivity (cycles of concentration).
• Boiler feedwater and make-up water monitoring.
• Reverse osmosis permeate and reject water checks.
• Wastewater and effluent monitoring points.

Installation and Commissioning

Install the receptacle where the electrode area stays fully wetted and flow is steady, for example in a side stream or on the lower side of a horizontal pipe, away from pump discharge turbulence and air pockets. Keep the sensor cable separate from power cables in the tray to reduce electrical noise. At commissioning, set the cell constant and temperature compensation in the transmitter, check the reading against a portable meter, and set blowdown or alarm setpoints based on the water treatment programme.

Maintenance and Troubleshooting

Cooling tower and raw water often carry scale, biological growth and suspended solids, all of which coat electrodes and pull readings down over time. The twist-lock design makes it easy to take the sensor out for inspection during a routine round. Clean scale with a suitable mild acid solution, rinse well, then verify the reading. If the value is erratic, check for air bubbles, damaged cable or water in the connector before replacing the sensor.

Recommended Routine

Set an inspection interval based on water quality, typically more frequent in summer when cooling tower load and fouling are highest in the Gulf climate, and keep a spare sensor so the measurement point can be restored immediately.

Applications in Oman and the GCC

The ABB TB454 electrode suits district cooling plants, hotels and commercial buildings, desalination and water treatment facilities, and industrial utility systems across Oman and the GCC, where high ambient temperatures make cooling tower chemistry control a daily task.

Spare Parts Planning

For sites with several cooling towers or treatment trains, standardising on one sensor model and one transmitter family keeps the spares list short. Hold at least one spare sensor per plant area and record the installation date of each sensor so replacement can be planned before readings become unreliable.

Sourcing from Seven Star LLC

Seven Star LLC supplies the TB454, spare sensors and compatible ABB transmitters, and helps facilities teams choose a configuration that suits their water treatment programme.

Request a Quote for ABB In-line or submersion type, stainless steel electrodes TB454

Contact Seven Star LLC to request a quotation for the ABB TB454 twist-lock conductivity sensor or to confirm receptacle compatibility with your existing installation. Our engineering team, serving Oman and the GCC, can advise on the correct TB4-family electrode and receptacle combination for your cooling water or wastewater application.
