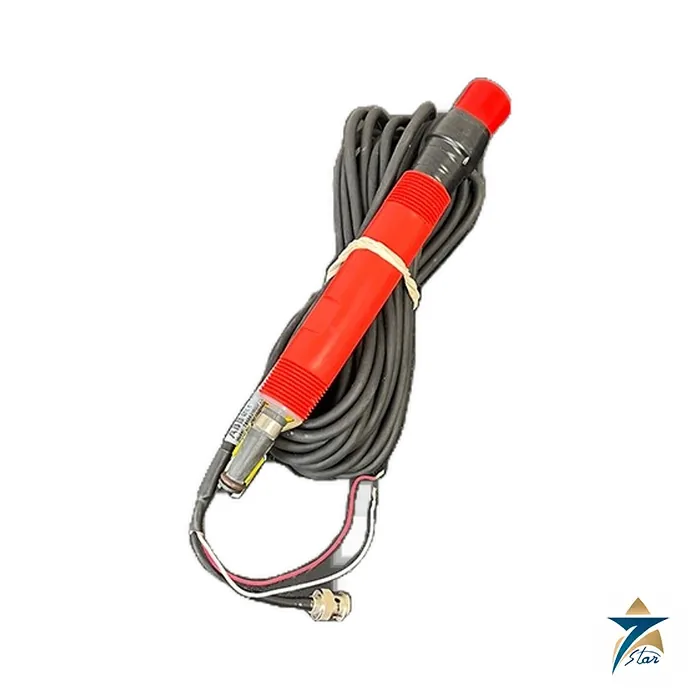

ABB TB556.1.3.D15.T30 Kynar pH/ORP Sensor

Overview

The ABB TB556.1.3.D15.T30 is an industrial Kynar-bodied pH/ORP combination sensor from ABB’s TB(X)556 family, engineered for continuous, in-line water quality monitoring across the toughest process applications in municipal and industrial water treatment. Built on ABB’s field-proven glass electrode and reference technology, the sensor combines chemical resistance, mechanical ruggedness, and long calibration stability into a single submersible or in-line probe.

With engineering support in Muscat, Seven Star LLC supplies the ABB TB556.1.3.D15.T30 on request with manufacturer documentation. Water treatment plants and process facilities across Muscat, Sohar, and Salalah rely on Seven Star LLC to source authentic ABB analytical sensors, avoiding the drift-prone and short-lived counterfeit probes that circulate through untrusted supply channels in the region.

Measurement Principle

The ABB TB556.1.3.D15.T30 measures pH using a glass membrane electrode that develops a millivolt potential proportional to hydrogen ion activity in the process fluid, referenced against a stable internal reference electrode housed in the same probe body. For ORP (oxidation-reduction potential) measurement, a platinum (Pt) metal electrode responds directly to the redox activity of the solution, and both signals are transmitted to a compatible ABB analyzer for linearization, temperature compensation, and display.

Because the reference junction and glass membrane are protected within a chemically resistant Kynar body, the sensor resists fouling and chemical attack far better than standard PVC-bodied probes, extending calibration intervals and electrode life in aggressive process streams. The practical consequence for plant chemists is fewer manual recalibrations, more stable control loop performance, and a lower total cost of ownership across the sensor’s operating life compared to lower-grade alternatives.

Engineering Design of the ABB TB556.1.3.D15.T30

The ABB TB556.1.3.D15.T30 uses a one-piece Kynar (PVDF) sensor body that resists a wide range of acids, caustics, and oxidizing chemicals encountered in water and wastewater treatment, combined with a built-in temperature element for automatic temperature compensation of the pH and ORP readings. The order code identifies the specific electrode combination, cable length, and connector configuration, allowing the sensor to be matched precisely to the host ABB analyzer and installation fitting.

Installation is typically via a submersible mount, flow-through fitting, or insertion assembly depending on the process configuration, with a shielded cable run back to the transmitter to preserve signal integrity over distance. The sensor’s rugged construction and pin-lead cable termination make it straightforward to replace like-for-like during routine maintenance, minimizing loop downtime on continuously monitored process streams.

Key Features

The ABB TB556.1.3.D15.T30 combines chemical durability with measurement stability, and the following features summarize why plant chemists specify it for demanding water quality duty:

• Chemically resistant Kynar body withstands aggressive acids, caustics, and oxidizers found in industrial process streams.
• Combined pH/ORP electrode design reduces the number of penetrations and fittings required on the process vessel or pipe.
• Built-in temperature compensation element maintains measurement accuracy across varying process temperatures.
• Extended calibration stability reduces manual recalibration frequency compared to standard PVC-bodied probes.
• Compatible with ABB’s full range of continuous water analyzers for seamless system integration.
• Submersible, insertion, and flow-through mounting options accommodate diverse installation configurations.
• Shielded cable construction preserves signal integrity over longer transmitter cable runs.
• Tinned pin-lead cable termination lands directly on the terminal blocks of ABB TB82, TB84, 4630/35 and AX46 transmitters.

Industrial Applications

The ABB TB556.1.3.D15.T30 is deployed across municipal water and wastewater treatment plants, cooling tower water chemistry monitoring, and industrial process pH/ORP control loops where continuous, stable measurement is essential for regulatory compliance and process control. In Oman’s industrial base, this sensor family is commonly specified for RO desalination pretreatment pH control, district cooling water chemistry monitoring, and petrochemical wastewater treatment neutralization loops.

Backed by manufacturer datasheet documentation, Seven Star LLC distributes the TB556 sensor family to EPC contractors and utility maintenance teams throughout the Sohar and Salalah economic zones, as well as to hospitality chains and hospital complexes across Muscat that operate their own water treatment and cooling water chemistry programs. The sensor’s chemical resistance and calibration stability make it a preferred choice for continuous monitoring applications across the GCC’s water and process industries.

Order Code Breakdown of the ABB TB556.1.3.D15.T30

Every field of the ABB TB556.1.3.D15.T30 order code is defined in ABB data sheet DS/TBX5 Rev. E, and reading it correctly is the difference between a drop-in replacement and a probe that will not fit the existing fitting. TB556 designates the Kynar-bodied, threaded, in-line and submersible (immersion) pH/Redox sensor assembly. The digit 1 selects the flat-glass measuring electrode, which ABB rates 0 to 14 pH over 10 to 100°C and specifies for high-particulate duty with the sensor fitted at 90° to the flow. The digit 3 specifies an integral Pt100 thermocompensator with tinned leads, rather than the 3kΩ Balco alternative or no compensator at all. The letter D selects a wood, notched Next Step reference junction. 15 sets a 1.5 in. insertion depth, and T30 specifies a tinned/pin-lead integral cable 30 ft (approximately 9 m) long for direct termination onto the terminal blocks of ABB TB82, TB84, 4630/35 and AX46 instruments.

That junction choice is worth confirming against the process chemistry before an order is placed. ABB recommends the hardwood junction for general-purpose duty, particularly where resistance to coating matters, but promotes the PTFE junction instead for continuous service above 11.0 pH or in streams containing known wood delignifiers such as strong caustics, bleaches and other oxidizers. Notched junctions, as fitted here, extend beyond the junction to form an integral protection guard around the electrode, which is why ABB associates them with retractable and immersion installations; flush junctions are the self-cleaning alternative for in-line, heavy-fouling duty.

Kynar Body Variant and Process Ratings

ABB builds the TB(X)5 series in two body materials, Kynar (PVDF) and Ryton (PPS), and the TB556 line is specifically the PVDF-bodied, threaded member of that family, distinct from the Ryton-bodied TB551 twist-lock sensors and from the hot-tap retractable TB557. The mounting thread is 3/4 in. NPT, and ABB rates the Kynar TB(X)556 assembly at 100 psi at 90°C and 40 psi at 140°C, so the allowable working pressure falls as process temperature rises and both figures must be checked against the sample line before installation. In this particular build the flat-glass electrode, not the body, sets the narrower limit: 10 to 100°C, with an electrode impedance of 650 MΩ at 25°C.

The reference system is what separates the ABB TB556.1.3.D15.T30 from conventional gel- or liquid-filled probes. ABB uses its solid-state Next Step reference, a totally solid inner reference element that removes the liquid reservoir found in traditional designs and, with it, the poisoning, plugging and dry-out failure modes that shorten probe life in dirty water and wastewater service. Insertion depth is selectable at 1.1 in., 1.5 in. or 5.0 in. on the TB556, and integral cable can be ordered from 1 ft up to 30 ft; ABB extension cables then allow up to 30 m (100 ft) between sensor and instrument without an external preamplifier, which is useful where the analyser cabinet sits well away from the sample point.

Technical Specifications

The table below summarizes the key operating parameters of the ABB TB556.1.3.D15.T30 pH/ORP sensor.
