ABB Tri-clamp type, stainless steel electrodes TB457

Overview

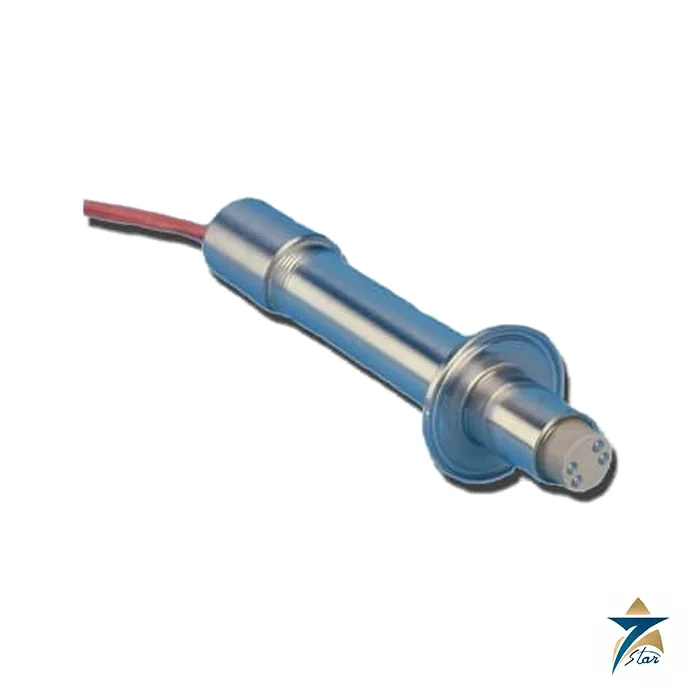

The ABB TB457 electrode is an all-stainless-steel, steam-sterilizable tri-clamp two-electrode contacting conductivity sensor engineered for the most demanding hygienic and pharmaceutical processes. Its 316 stainless steel body, flange, and electrodes, paired with FDA-approved silicone-potted seals, allow the TB457 to withstand repeated steam sterilization cycles without degradation.

As the premium member of ABB’s TB4 sanitary conductivity family, the TB457 targets applications where full metal construction and pharmaceutical-grade materials are mandated. Seven Star LLC supplies the TB457 to food, beverage, and pharmaceutical manufacturers across Oman and the GCC.

Operating Principle

The TB457 applies an AC voltage across its two 316 stainless steel electrodes and measures the resulting current through the process fluid, proportional to conductivity. Its factory-calibrated cell constant enables a paired transmitter to output accurate conductivity readings for verifying CIP rinse completion, confirming product-to-water interface changeover, or monitoring purified water and water-for-injection systems in pharmaceutical manufacturing.

Engineering Design of the ABB TB457

The TB457’s all-316-stainless-steel construction — body, tri-clamp flange, and electrodes — eliminates the plastic components found in the TB451/TB454 variants, giving it superior mechanical durability and steam-sterilization tolerance. The tri-clamp flange integrates a ½-inch NPT electrode fitting for tool-free installation and removal. Seals use EPDM o-rings with FDA-approved silicone potting around the electrode leads, meeting food-contact and pharmaceutical material requirements. The sensor is rated to 861 kPa (125 psi) at 175°C, suitable for in-place steam sterilization (SIP) cycles.

Key Features

• Two-electrode contacting conductivity measurement technology
• All-316-stainless-steel body, tri-clamp flange, and electrodes
• Sanitary tri-clamp mount with ½-inch NPT electrode fitting
• EPDM o-ring seals with FDA-approved silicone potting
• Rated to 861 kPa (125 psi) at 175°C for SIP steam sterilization
• Designed for pharmaceutical and food/beverage hygienic standards
• Compatible with ABB AquaMaster/AX400-series conductivity transmitters
• Tool-free tri-clamp installation and removal
• Superior durability versus plastic-bodied sanitary variants

Industrial Applications

The TB457 is specified for pharmaceutical manufacturing, biotech, and high-end food and beverage production across Muscat, Sohar, and Salalah, where full stainless steel construction and steam sterilization tolerance are process requirements rather than conveniences. It is commonly used on purified water and water-for-injection loops, where validated conductivity monitoring is part of regulatory compliance.

Across the GCC’s pharmaceutical and premium food and beverage sectors, the TB457 also supports CIP/SIP rinse-water verification and product/water interface detection on lines that undergo frequent steam sterilization, where a plastic-bodied sensor would degrade faster under repeated thermal cycling.

Technical Specifications

Selecting the TB457 for Hygienic Service

The TB457 is chosen when a specification calls for an all-metal wetted construction rather than a polymer body. Before ordering, confirm the tri-clamp ferrule size on the process line, the expected conductivity range of the product and cleaning solutions, and the transmitter that will read the sensor. Matching the cell constant to the measuring range is the most important selection step: a cell constant that is too high or too low for the fluid reduces resolution at the values that matter.

• Check the ferrule size and gasket material approved for your site.
• Confirm the conductivity range for product, rinse water and CIP chemicals.
• Confirm the cable length needed between the sensor and the transmitter.
• Check that the transmitter model is compatible with TB4 series sensors.

Installation and Commissioning

Mount the sensor where the electrodes stay fully immersed and the flow sweeps the measuring area, avoiding the top of horizontal pipes where air can collect. Use a hygienic tee or instrument port designed for sanitary sensors so no dead leg is created. After installation, enter the cell constant and temperature compensation settings in the transmitter, then compare the reading with a calibrated reference or conductivity standard before releasing the loop for production.

Steam Sterilization Considerations

Because the TB457 is designed for repeated steam sterilization, it suits SIP cycles on fermenters, purified water loops and product transfer lines. Allow the sensor to cool and stabilise after each sterilization cycle before relying on the reading for product decisions, and inspect clamp gaskets at regular intervals, since gaskets usually need renewal well before the sensor itself.

Maintenance and Troubleshooting

A reading that drifts slowly is usually caused by film or deposits on the electrodes; a sudden low reading often points to air entrapment or a cable fault. Clean electrodes with a suitable cleaning solution, check the cable and connector for moisture, and verify with a standard solution. Record calibration results so that trends in sensor performance can be seen over time.

Applications in Oman and the GCC

In Oman and the GCC the ABB TB457 electrode is a good fit for dairy and juice plants, bottled water producers, pharmaceutical manufacturing and hospital sterile services, where CIP phase detection, interface detection between product and rinse water, and purified water monitoring are routine duties.

Sourcing from Seven Star LLC

Seven Star LLC supplies the TB457 and matching ABB transmitters, and can help confirm the ferrule size, cell constant and cable length so the ABB TB457 electrode is delivered ready for your line.

Request a Quote for ABB Tri-clamp type, stainless steel electrodes TB457

Contact Seven Star LLC to request a quotation for the ABB TB457 all-stainless sterilizable conductivity sensor for your pharmaceutical or food-grade process. Our engineering team, serving Oman and the GCC, can confirm tri-clamp size and validation documentation requirements for your application.
