JUMO dTRANS p35 IO-Link Pressure Sensor

Name: JUMO dTRANS p35 IO-Link Pressure Sensor | Seven Star LLC
Brand: JUMO
SKU: dTRANS p35

Description

A compact welded pressure sensor that speaks IO-Link

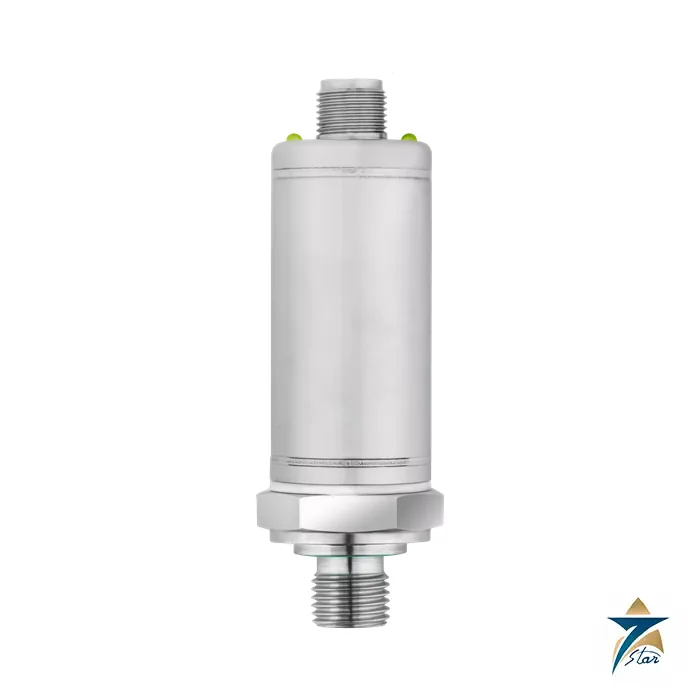

The JUMO dTRANS p35 (type 402058) is a stainless-steel, fully welded pressure sensor with an IO-Link 1.1 interface for liquids and gases. Through any IO-Link master it exchanges process data, parameters, diagnostics and status messages, and the same sensor can run in standard IO mode with up to two configurable switching outputs, p-switching or n-switching. Two green LEDs show supply and IO-Link communication. The range list covers relative pressure from -400 mbar to 600 bar and absolute pressure up to 100 bar. JUMO lists process automation, machines for food and beverage, and general machine and apparatus engineering as the main uses, and offers options for medium temperatures to 200 °C, UL approval and mobile hydrogen applications with test pressure up to 1050 bar.

Technical specifications

Parameter	Specification
Type	402058 JUMO dTRANS p35; 000 standard; 004 raised medium temperature; 999 special version
Relative ranges	-400 to +400 mbar; -1 to +1, +2.5, +5, +12, +30, +100, +250, +400, +600 bar
Absolute ranges	0 to 1, 2.5, 5, 12, 30 and 100 bar
Accuracy	Linearity 0.2 to 0.5 % of span; accuracy at 20 °C 0.5 to 0.7 %; -20 to +80 °C 1.0 to 2.0 %; long-term stability up to 0.3 % per year
Overload and burst	From 1 bar overload and 1.5 bar burst (400 mbar range) up to 1200 bar overload and 2500 bar burst (600 bar range)
Interface	IO-Link device V 1.1 (compatible with 1.0), COM3 230.4 kBaud, minimum cycle 2 ms, cable up to 20 m unshielded
Switching outputs	Two in SIO mode, PNP or NPN, hysteresis or window, up to 100 mA each, drop 2 V max., response 7 ms, delay 0 to 100 s
Supply	IO-Link DC 18 to 32 V; switch operation DC 9.6 to 32 V; 24 V nominal; 10 to 12 mA idle/IO-Link, up to 250 mA with two outputs
Medium temperature	-40 to +125 °C (type 004: -40 to +200 °C; extra code 1160: -40 to +120 °C); CIP/SIP max. 135 °C for under 1 h/day
Ambient and storage	Ambient -40 to +85 °C; storage -40 to +85 °C; climate class 3K7
Protection	IP65/IP67 (absolute versions), IP65 (relative versions); vibration 10 g (10 to 2000 Hz); shock 20 g/11 ms, 50 g/1 ms
Materials	Membrane and welding ring 316L; high-pressure sensor 630 above 100 bar; connection 316L or 316Ti; housing 304; weight about 160 g
Process connections	G 1/4 (502), G 1/2 (504), 1/4-18 NPT (511), 521, 523, front-flush G 3/4 and G 1/2 (571, 574, 575), DIN 11851 (603 to 607), clamp (612, 613, 616), JUMO PEKA (997)
Extra codes	061 UL approval; 100 custom configuration; 591 choke; 631 improved moisture/vibration protection; 1160 H2 ready
Electrical connection	Round plug M12 x 1; Ra 0.8 µm hygienic surfaces (0.4 µm on request)

How to specify a p35

The code is 402058/ extension – input – output – process connection – material – electrical connection / extra code. A full example from the datasheet is 402058/000-526-458-504-20-36/061, a 0 to +12 bar relative sensor with IO-Link, G 1/2 connection and UL approval. Output 458 is always IO-Link measured value transmission including the digital output. Note the limits: the front-flush and PEKA connections are only for ranges up to 100 bar, DIN 11851 DN 20 to 40 only up to 40 bar, DN 50 and clamp 25 to 40 up to 25 bar, and clamp DN 50 up to 16 bar. The raised-temperature type 004 excludes inputs 447, 449, 488, 490, 508, 509 and 516, and the H2-ready extra code 1160 is limited to connections 502, 504 and 511. The IODD description files (00681036 and 00681037) are accessories; the IO-Link masters, four- or eight-channel, can also be sourced from JUMO.

When IO-Link makes sense

IO-Link replaces analog wiring with a digital link that carries parameters, so a replaced sensor can be re-parameterised automatically from the master. That pays off in OEM skids, compact process skids and machines with many sensors where cabinet wiring is the main cost. The measuring-range overflow and underflow events are configurable and appear in the process value as an error value rather than a misleading reading. Typical GCC use cases are water-treatment skids, hydraulic and lubrication units, CIP stations and gas-handling frames. The same family offers a digital temperature probe with IO-Link, the published dTRANS T1000. For analog-only needs see the dTRANS p30 or browse the pressure instrumentation category.

For an enquiry, state the pressure range, relative or absolute, the medium and its cleaning temperature up to 135 °C for CIP and SIP, and the process connection with its sealing type. Specify whether the device will run only in IO-Link mode or also in SIO mode with PNP or NPN switching outputs. The master port should supply 18 to 32 V DC in IO-Link operation. Extra codes cover UL approval, custom configuration, a choke and improved protection against moisture and vibration, so please list any that your site requires. The surface roughness is 0.8 micrometres, and 0.4 micrometres can be requested.

The IO-Link interface lets a PLC read pressure and also parameterise the device without opening the cabinet, which supports fast replacement of a faulty unit. Typical installations are dairy and beverage lines, CIP return circuits and compressor monitoring on packaging machines.

Documents and quotation

The hosted document is JUMO data sheet 402058 (15 pages, English). Confirm range, process connection and the temperature option against the limits above before ordering. Seven Star LLC is an independent supplier in Muscat; send the code and process data for a quotation.

Datasheets & Documents

Datasheet JUMO dTRANS p35 data sheet 402058 (EN) Download
