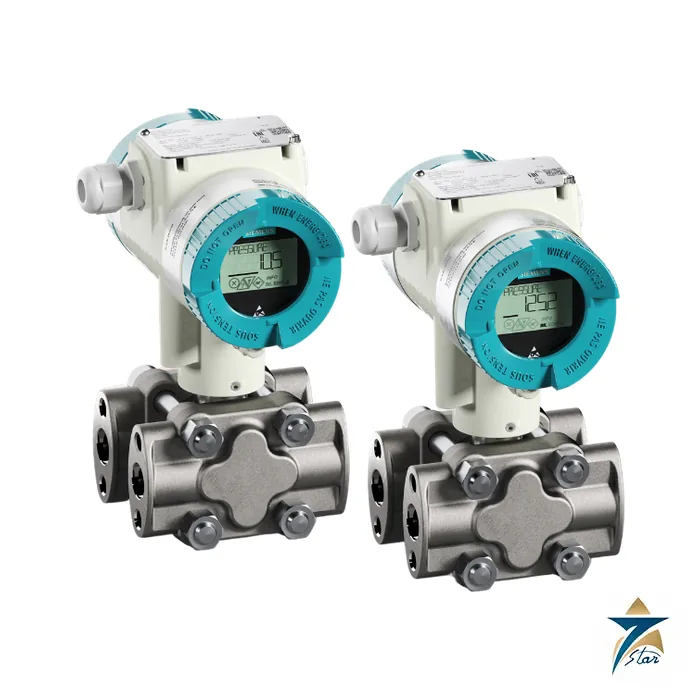

Siemens SITRANS P320 Digital Pressure Transmitter
Overview
The Siemens SITRANS P320 is a robust digital pressure transmitter engineered for gauge, absolute, and differential pressure measurement across chemical, petrochemical, and general process industries. Building on the proven SITRANS P DS III platform, the P320 introduces Remote Safety Handling, letting engineers read values, configure devices, perform maintenance, and support SIL proof-test workflows directly from the control room, which cuts field visits, downtime, and personnel exposure to hazardous areas.
With engineering support in Muscat, Seven Star LLC supplies the SITRANS P320 pressure transmitter to refineries, petrochemical complexes, and industrial utilities across the Sultanate. Every unit shipped from our Muscat-based inventory is genuine Siemens factory stock, fully warranted, and backed by regional commissioning and loop-check support for process instrumentation upgrades.
Measurement Principle
The SITRANS P320 measures pressure using a piezoresistive sensing cell that converts applied process pressure into a proportional electrical signal, which onboard digital electronics linearize, temperature-compensate, and convert into a 4–20 mA/HART, PROFIBUS PA, or PROFINET-over-Ethernet-APL output. The transmitter achieves accuracy up to 0.065% of span and response times down to 105 milliseconds, with long-term stability of ≤0.125% over five years, making it suitable for tight process control loops as well as custody-critical measurement points.
An innovative three-barrier design underpins the SITRANS P320’s safety architecture: if two protective barriers fail and the sensor itself is compromised, the transmitter triggers an alarm while the third barrier helps prevent hazardous gas from escaping to atmosphere. This layered protection, combined with diagnostics compliant with NAMUR NE107, gives operators clear device status information and early warning of developing faults — translating directly into fewer unplanned shutdowns and safer operation in overpressure or corrosive process conditions.
Engineering Design of the Siemens SITRANS P320
The SITRANS P320 is housed in a rugged, field-mountable enclosure rated for measured medium temperatures from –40°C up to +100°C, with a large local display and four-button interface for straightforward on-site setup, diagnostics, and guided commissioning. The transmitter supports proof-test intervals of up to 15 years, substantially reducing scheduled maintenance visits compared to conventional pressure transmitters that require more frequent manual verification.
Communication options span the full range of modern plant architectures: 4–20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus, and PROFINET over Ethernet-APL, the last of which delivers 10 Mbit/s data rates over distances up to 1,000 meters on simple two-wire cabling that carries both power and data. This flexibility allows the SITRANS P320 to be specified into brand-new Ethernet-APL infrastructure or retrofitted directly into existing 4–20 mA/HART loops without redesigning the surrounding control architecture.
Wetted parts on the process-facing side of the Siemens SITRANS P320 are specified from stainless steel 1.4571 for the process connection and 1.4404 for the measuring diaphragm, with FPM (FKM) O-rings as standard and a choice of silicone or FDA-compliant filling fluid behind the diaphragm depending on the application – a combination that gives the transmitter broad resistance to the aggressive hydrocarbons and cleaning chemicals found in refinery and petrochemical service. The transmitter communicates over HART 7 and accepts a standard load resistance of 230 to 1,100 Ω for conventional HART communicators, or 230 to 600 Ω for PC-based configuration tools, and three independent write-protection methods – a hardware jumper, a user PIN, and a physical button lock – let plant instrumentation teams lock down calibration settings against accidental or unauthorized changes on safety-critical loops. The housing itself carries an IP66 degree of protection as standard, and the local four-button interface allows on-site damping, zero, and span adjustment on the SITRANS P320 without removing the cover or interrupting the loop.
Key Features
The Siemens SITRANS P320 delivers high-accuracy pressure measurement with safety and diagnostic capability built in from the ground up:
- Measures gauge, absolute, and differential pressure from 10 mbar to 700 bar depending on version.
- Achieves accuracy up to 0.065% of span with response times as fast as 105 milliseconds.
- Supports IEC 61508 SIL 2/3 applications with proof-test intervals extending up to 15 years.
- Enables Remote Safety Handling for control-room configuration, maintenance, and SIL validation.
- Features a three-barrier design that helps prevent gas escape under sensor failure conditions.
- Offers NAMUR NE107-compliant diagnostics for clear, actionable device status information.
- Supports HART, PROFIBUS PA, FOUNDATION Fieldbus, and PROFINET over Ethernet-APL communication.
- Carries ATEX, IECEx, FM, CSA, and NEPSI approvals for global hazardous-area deployment.
Industrial Applications
The SITRANS P320 is widely specified across refineries, petrochemical plants, and gas processing facilities for process pressure monitoring, level measurement via hydrostatic head, and volume and mass flow inference in demanding chemical and hydrocarbon service. Its SIL 2/3 capability and long proof-test interval make it a preferred choice for safety instrumented systems protecting reactors, separation columns, and pressure vessels where unplanned shutdowns carry significant cost.
Backed by genuine manufacturer documentation, Seven Star LLC distributes the SITRANS P320 to EPC contractors, refineries, and industrial operators throughout Muscat, the Sohar and Salalah economic zones, and the wider Sultanate of Oman. Our direct sourcing ensures genuine Siemens factory calibration, full documentation for SIL-rated loops, and local technical support for control system integration.
Technical Specifications
The table below summarizes the key operating parameters of the Siemens SITRANS P320 pressure transmitter:
| Parameter | Specification |
|---|---|
| Model | Siemens SITRANS P320 |
| Measured Parameter | Gauge, absolute, and differential pressure |
| Accuracy | Up to 0.065% of span |
| Measuring Range | 10 mbar to 700 bar (version dependent) |
| Response Time | Down to 105 ms |
| Long-Term Stability | ≤0.125% / 5 years |
| Safety Rating | IEC 61508 SIL 2/3 |
| Communication | 4–20 mA/HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL |
| Operating Temperature | –40°C to +100°C (measured medium) |
| Certifications | ATEX, IECEx, FM, CSA, NEPSI |
| Proof-Test Interval | Up to 15 years |
Request a Quote for Siemens SITRANS P320 Digital Pressure Transmitter
Seven Star LLC supplies the Siemens SITRANS P320 digital pressure transmitter on request across Oman and the GCC, with lead time confirmed at quotation. Contact our instrumentation division for a formal RFQ, a technical datasheet download, or application engineering support for your process pressure measurement or SIL loop upgrade project. Working closely with plant engineers in the region, Seven Star LLC supplies the transmitter on request with the manufacturer datasheet and local technical support.
Seven Star LLC supplies the Siemens SITRANS P320 on request across Oman for refinery and petrochemical SIL loop upgrades. Specify the Siemens SITRANS P320 with confidence, backed by genuine Siemens factory calibration and local support.
Request a Siemens SITRANS P320 quotation today to secure regional lead times ahead of your next turnaround.
