JUMO DELOS SI Hygienic Pressure Switch and Transmitter

Name: JUMO DELOS SI Hygienic Pressure Transmitter | Seven Star LLC
Brand: JUMO
SKU: DELOS SI

Description

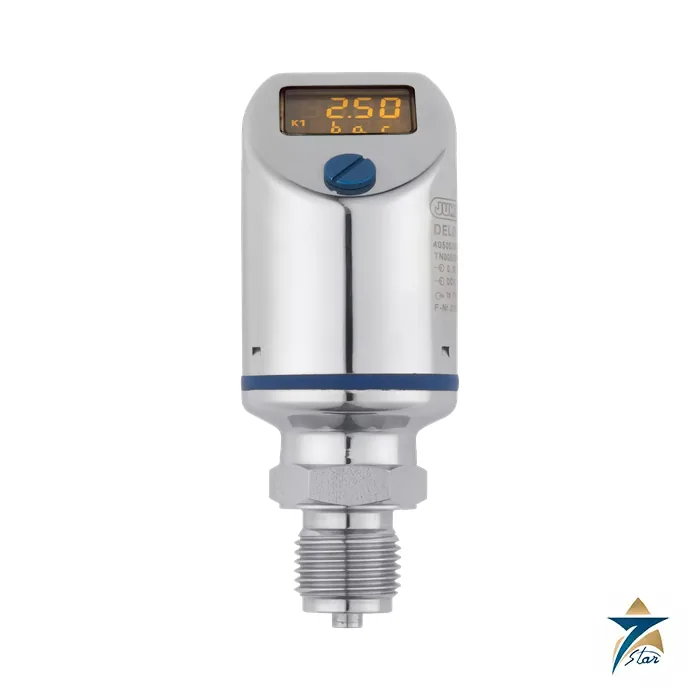

A hygienic pressure switch with analog output and a rotating display

The JUMO DELOS SI (type 405052) is an electronic pressure switch and transmitter for processes where cleanability matters. Its measuring system is front-flush and seal-free, with parts in contact with the medium made of stainless steel 316L and no dead zones where microbes could collect. Factory ranges run from 400 mbar to 60 bar and can be rescaled 1:4, so one device can cover several tasks. Outputs are one or two PNP switching outputs, or one PNP output plus a 4 to 20 mA, 0 to 20 mA or 0 to 10 V analog signal. A two-colour, positively lit LC display shows pressure, the housing turns 160 degrees either way, and the display rotates 180 degrees in software for overhead mounting. A high-temperature variant handles media up to 200 °C for CIP and SIP cleaning.

Technical specifications

Parameter	Specification
Type	405052/000 standard; /004 high-temperature (medium up to 200 °C); /999 special version
Measuring ranges	Relative: 0 to 0.4, 1, 4, 10, 25, 60 bar; -0.4 to +0.4, -1 to +1, -1 to +3, -1 to +9, -1 to +24 bar; absolute: 0 to 0.4, 1, 4, 10, 25, 60 bar
Accuracy	Linearity 0.1 % (4 bar and above) or 0.15 % (0.4 and 1 bar); accuracy 0.25 to 0.35 % at 20 °C; 0.5 to 0.7 % over -20 to +75 °C; long-term stability 0.2 % per year (up to 0.4 bar range)
Overload and burst	From 1.6 bar overload/2 bar burst (0.4 bar range) to 240 bar overload/300 bar burst (60 bar range); vacuum-proof
Sensor system	Silicon sensor with stainless-steel separating diaphragm; silicone oil or FDA-compliant oil filling; more than 10 million load cycles
Outputs	470 one PNP; 471 two PNP; 475 PNP plus 4-20 mA; 476 PNP plus 0-20 mA; 477 PNP plus 0-10 V; scaling 1:4, damping 0 to 99.99 s, T90 100 ms or less
Switching outputs	PNP, 250 mA, voltage drop 2 V max., response time 20 ms, short-circuit proof, more than 10 million cycles
Supply	DC 12 to 30 V (14 to 30 V for voltage output), 24 V nominal; reverse-polarity protected; SELV limited-energy circuit
Process connections	G 1/2 (504), 1/4-18 NPT (511), G 1/4 (521), G 1/2 (523), front-flush G 3/4 (571, 575), G 1 (576), DIN 11851 (603 to 607), Clamp (612, 613, 616), DN 25 flange (623), tank connections (652, 653), JUMO PEKA (997), diaphragm-seal screw connection (998)
Medium temperature	-25 to +100 °C (basic type 004: -25 to +200 °C); ambient -25 to +75 °C; storage -40 to +85 °C
Materials	Process connection, diaphragm and housing 316L (Ra 0.8 µm); FPM, VMQ or EPDM seals depending on connection; VMQ housing seal FDA-compliant
Environmental	IP67 with mating plug; vibration 20 g (10 to 2000 Hz); shock 50 g/11 ms; humidity 100 % in operation
Approvals	EHEDG EL Class 1 (certificate EHEDG-C2000058, 2020-11-06) for clamp DN 25/32/40/50 (613, 616) and JUMO PEKA (997)
Electrical connection	M12 x 1, 4-pin, A-coded round plug; weight about 200 g (G 1/2)
Stock example	405052/000-459-475-504-20-36-01/000, part no. 00520630 (0 to 10 bar, PNP plus 4-20 mA, G 1/2)

Reading the order code

The code is 405052/ basic type – input range – output – process connection – connection material – electrical connection – filling medium / extra codes, for example 405052/000-459-471-504-20-36-01/000. Input 459 is 0 to 10 bar relative, 461 is 0 to 25 bar and 463 is 0 to 60 bar; 486 to 506 are the absolute ranges. Filling 01 is silicone oil and 12 is FDA-compliant oil. Extras include 374 and 871 (inspection certificates 3.1 for material and accuracy), 452 (electropolished wetted parts), 591 (restrictor in the pressure channel), 624 (free of oil and grease), 634 (TAG number), 691 (improved humidity and vibration protection), 769 (calibration certificate) and 100 (customised setting). High-temperature units can only be ordered with front-flush or hygienic connections, such as 571, 575, 576, 603 to 607, 612, 613, 623, 652, 653 and 997. Stock versions from 0.4 to 25 bar plus -1 to +1 bar are listed with part numbers 00528746, 00527029, 00528156, 00520630, 00528994 and 00523317.

Where it fits

JUMO lists food and pharma, CIP and SIP systems, machine and plant construction, and air-conditioning and refrigeration. The welded, seal-free front-flush connection avoids elastomer crevices in pipes that carry milk, syrup or cleaning chemicals, and the high-temperature option tolerates steam sterilisation cycles. In hot-climate dairies, bottling and pharmaceutical utilities, the local display and two switch points allow pump protection and tank pressure monitoring without a separate gauge. Setup is by the encoder under the screw plug or with the DELOS CD program via the PC interface cable (00456352); cable connectors and the combination tool are accessories. Compare the published dTRANS p30 and the hygienic dTRANS p31, or browse the pressure instrumentation category.

When enquiring, give the pressure range and whether it is gauge or compound, the medium and its temperature, the output combination from the 470 to 477 family, and the process connection. For hygienic plants list the clamp or front-flush size, the seal material and the cleaning cycle, since the EHEDG certificate refers to certain clamp connections. State whether the high-temperature basic type for media up to 200 °C is needed. The unit accepts DC 12 to 30 V, so a standard 24 V loop is suitable. A stock example with a 0 to 10 bar range, a PNP switching output and a 4 to 20 mA signal is listed on the datasheet.

Documents and quotation

The hosted document is JUMO data sheet 405052 (13 pages, English). Confirm range, output, connection, filling medium and temperature variant before ordering. Seven Star LLC is an independent supplier in Muscat; send the full code and process conditions for a quotation.
