JUMO MIDAS S21 Ex Pressure Transmitter for Ex Areas

Name: JUMO MIDAS S21 Ex Pressure Transmitter | Seven Star LLC
Brand: JUMO
SKU: MIDAS S21 Ex

Description

Intrinsically safe pressure transmitter for zones 1 and 2

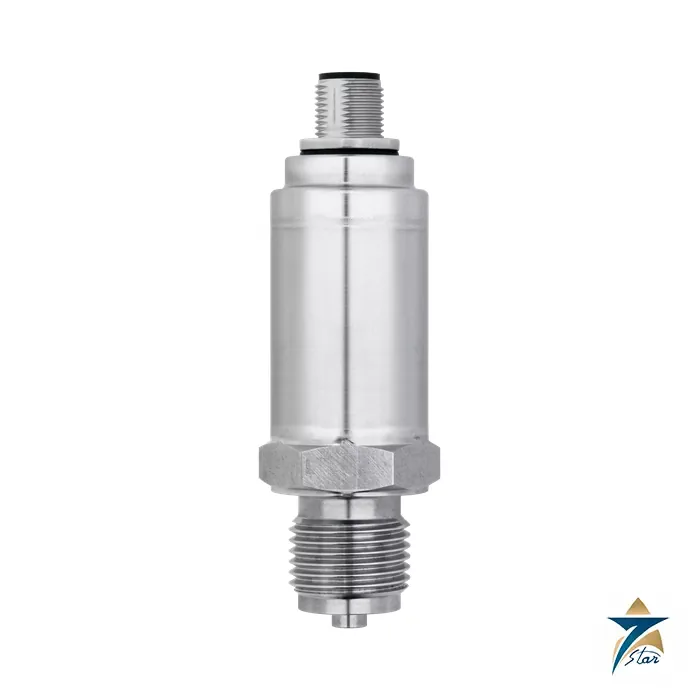

The JUMO MIDAS S21 Ex (type 404710) is a compact, welded-system pressure transmitter for gases, vapours and liquids in potentially explosive areas, with a two-wire 4 to 20 mA output. It carries intrinsic safety Ex ib marking for device group II zones 1 and 2 and group III zones 21 and 22, and it builds on the sensor technology of the MIDAS series.

JUMO lists oil, fuel and natural gas, paint shops and paint robots, process technology, plant engineering, testing and laboratory technology, and chemical plants as areas of application. Ranges run from 0.25 to 100 bar relative and from 0.6 to 25 bar absolute, and static and dynamic measurements are both supported.

Technical specifications

Parameter	Specification
Data sheet type	404710
Sensor	Silicon sensor with stainless steel membrane; synthetic oil transfer medium
Ranges (relative)	0 to 0.25 up to 0 to 100 bar; compound ranges down to -1 bar
Ranges (absolute)	0 to 0.6 up to 0 to 25 bar
Output	4 to 20 mA, two-wire
Supply	DC 16 to 28 V (DC 21 to 24 V with DNV approval); nominal DC 24 V; up to 23 mA
Process connections	G 1/4, G 3/8, G 1/2 (standard) DIN EN 837; 1/4-18 NPT, 1/2-14 NPT; G 1/4 and G 1/2 DIN 3852-11
Ex marking as printed	ATEX II 2G Ex ib IIC T6…T4 Gb; II 2D Ex ib IIIC T70…T100 C Db; UKEX equivalents
Temperature classes	T4 up to +85 C; T5 up to +70 C; T6 up to +55 C ambient
Medium temperature	-40 to +85 C; storage -40 to +100 C
Protection	IP65
Electrical connection	Attached cable, loose wires, M12 plug, line socket
Weight	About 170 g with G 1/2 connection
Certificates as printed	ATEX SEV 09 ATEX 0101 X; UKEX EPS 22 UKEX 1 088 X (extra code 085); DNV TAA0000211 (extra code 062); H2-ready KIWA P000415366HGV19

Choosing the version

Ex pressure transmitters are chosen by hazardous-area class first: confirm the zone, the gas or dust group and the temperature class against the Ex marking above, and match the ambient temperature to T4, T5 or T6. The supply must come from an intrinsically safe circuit, so an Ex-i repeater power supply or barrier is required; the supply range is narrower with the DNV extra code.

The order code builds from type 404710, the range (451 to 464 and 475 to 485 relative, 487 to 495 absolute, 998 and 999 special), output 405, process connection and electrical connection, and extra codes for the UKEX (085), DNV (062) and other options. Check which extra codes apply to M12 and line-socket versions.

Installation and use

Mount in any position; calibration is done upright with the process connection down. Because accuracy, long-term stability and overload are tabulated per range in the data sheet, select the range so the working pressure sits well inside the span. For viscous or crystallising media a standard seal-less measuring cell is not advisable; contact the manufacturer for a diaphragm seal solution.

The data sheet remarks that its application recommendations come from long experience but may not apply in every case.

Documents and quotation

Open the attached JUMO MIDAS S21 Ex data sheet 404710 (EN) for the complete data and dimension drawings. Before you place an order, confirm the Ex zone, temperature class and extra codes with the system designer, then submit your request with the exact code; our team prepares the quotation. Related items are listed under Pressure Instrumentation.
