Gedik GKF-50 Electrode Drying Oven with Digital Thermostat (50 Packages)

Overview

The Gedik GKF-50 is the largest cabinet in the Gedik Welding range of electrode drying ovens with digital thermostat. Gedik Welding, the Turkish manufacturer of welding consumables and equipment, rates it for 50 packages of covered electrodes, which its datasheet expresses as 5000 rods spread over ten trays. The oven combines two functions in a single insulated cabinet: a high-temperature stage for re-drying electrodes that have picked up moisture, and a low-temperature holding stage that keeps them dry until they are issued to welders. For a project with many welders working on pressure parts or structural steel, that means one central point of control for electrode condition.

Seven Star LLC supplies the Gedik GKF-50 to fabrication contractors, consumable stores and quality departments in the Sultanate of Oman and across the GCC, with engineering support in Muscat. We can help size an electrode control setup around the oven, combining it with smaller holding ovens and portable quivers so that dry electrodes travel all the way from the store to the joint.

Why Electrode Drying Matters

As general welding knowledge, the flux coating of covered electrodes, and especially of basic low-hydrogen types such as E7018, absorbs moisture from humid air. During welding that moisture breaks down into hydrogen, which can dissolve in the weld metal and heat-affected zone and contribute to hydrogen-induced cold cracking, porosity and reduced toughness. Codes and welding procedures therefore usually require low-hydrogen electrodes to be stored, re-dried and held according to the electrode manufacturer’s instructions. In coastal and Gulf climates with high humidity, this control is not optional; it is part of passing inspection.

The Gedik GKF-50 datasheet describes a treatment cycle in which electrodes are held at 300 °C for two hours, after which the thermostat is lowered to 130 °C and no further treatment is applied. In other words, the oven provides a high-temperature shock for drying, then preserves the heat at a lower temperature. The exact temperature and time for any specific electrode should always be taken from that electrode’s own data sheet, and the oven’s 0 to 400 °C digitally controlled range gives room to follow those instructions.

Engineering Design of the Gedik GKF-50

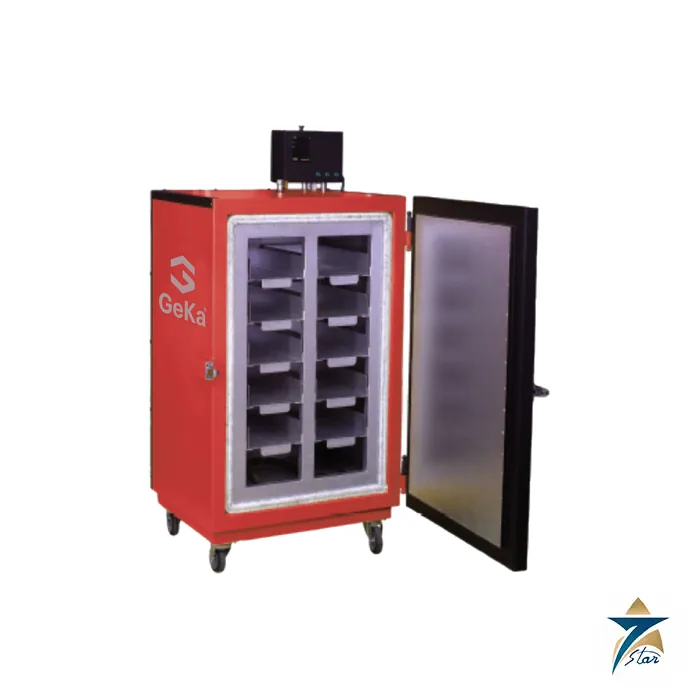

The cabinet is built as a heavy, insulated box on castor wheels with a full-height side-hinged door. Inside, the published internal dimensions are 23 × 50 × 96 cm, and the ten trays each measure 22 × 45 × 7 cm. The external dimensions are published as 150 × 115 cm for height and 67 × 77 cm for the outer footprint, and the oven weighs 160 kg, so it is meant to stand in a store or a workshop corner rather than be carried around. The digital controller is mounted on top of the cabinet where it is easy to read.

Electrically, the Gedik GKF-50 is a three-phase appliance: it runs on 380 to 400 V, draws 21 A and has an operating capacity of 4500 W. Heat insulation is fitted as standard to keep the internal temperature stable and the outer surfaces cooler. A single order code, 6051700008, covers the complete unit with all its standard equipment, which simplifies purchasing and spares identification.

Some general handling practices help any large drying oven perform as intended. Electrodes are usually spread in shallow layers rather than packed tightly, so that heat reaches every rod; different electrode classes are kept on separate trays and labelled; and the start and end of each drying cycle is logged for the quality file. Many electrode producers also limit how many times a batch may be re-dried, which is another reason to keep simple records next to the Gedik GKF-50.

Key Features

The Gedik GKF-50 offers the following benefits for central electrode control:

• The capacity of 50 packages, or about 5000 rods, supports large projects with many welders drawing from one store.
• Ten trays of 22 × 45 × 7 cm keep different electrode types and batches separated.
• Digitally controlled heating up to 400 °C covers both re-drying and holding temperatures.
• The datasheet cycle of two hours at 300 °C followed by holding at 130 °C is supported in one cabinet.
• A 4500 W heater on a 380 to 400 V three-phase supply gives the power needed for a fully loaded oven.
• Insulation is fitted as standard for stable temperatures and safer outer surfaces.
• Castor wheels allow the 160 kg cabinet to be positioned within a store or workshop.
• A single order code, 6051700008, identifies the complete oven.

Industrial Applications

In Oman the Gedik GKF-50 belongs in the electrode store of large construction and shutdown projects: refinery and petrochemical turnarounds in Sohar, gas plant expansions, power and desalination plant construction, storage tank farms and structural steel yards. On such jobs a welding inspector will typically check that low-hydrogen electrodes come from a controlled oven and that drying records are kept, and a single large digitally controlled cabinet makes that control much easier to demonstrate.

Fabrication shops building pressure vessels, heat exchangers and pipe spools for oil and gas projects use a Gedik GKF-50 as their main re-drying oven, then pass electrodes on to smaller holding ovens and portable quivers next to the welders. Seven Star LLC supplies the oven as part of a complete electrode handling chain, and coordinates delivery to sites in Muscat, Sohar, Duqm and Salalah and across the GCC.

Technical Specifications

The table reproduces the general data for the Gedik GKF-50 from the manufacturer’s datasheet attached on this page.

Pair the oven with the arc welding equipment it serves, such as the Lincoln Electric Power Wave S500 or the ESAB Rebel EMP 285ic, and with consumables like the Lincoln Electric SuperArc L-59 ER70S-6 Solid MIG Welding Wire; other ovens are grouped in our Electrode Drying Ovens category.

Call To Action

To request a quotation for the Gedik GKF-50, tell Seven Star LLC the number of welders and electrode types on your project and the available three-phase supply at the store. Our Muscat team will confirm the configuration, share the datasheet attached on this page and arrange delivery anywhere in Oman and the GCC.
