Brand: GCE

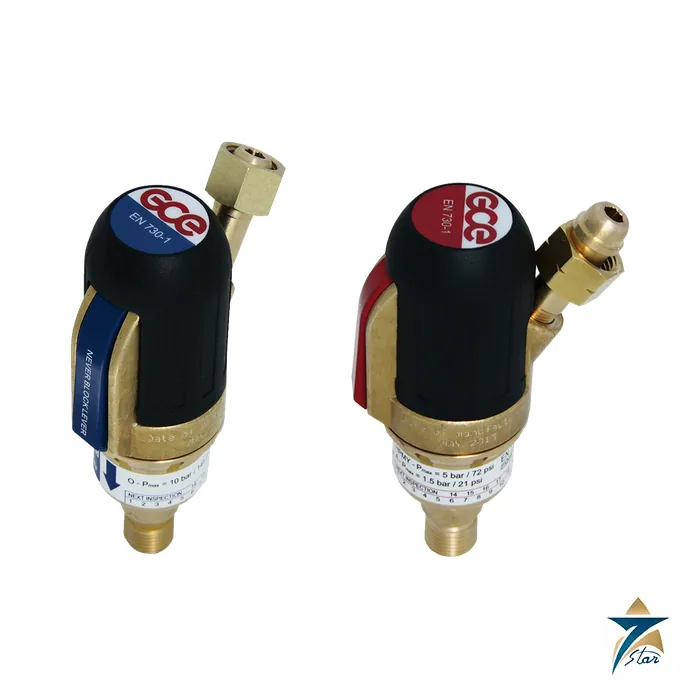

GCE SAFE-GUARD-5 Flashback Arrestor
Description
Five safety functions in one regulator-mounted flashback arrestor
The GCE SAFE-GUARD-5 is a 5-function flashback arrestor for oxy-fuel installations. GCE designed it to give the maximum level of protection required by ISO 5175-1, stopping a flashback before it reaches the regulator and the cylinder supply. It is fitted at the regulator outlet, in versions for oxygen and for fuel gases with European, American and French or Chinese connection threads.
Every unit is flame-tested in production for flashback resistance. A high-visibility trip and reset lever shows when the arrestor has operated and can be reset quickly even when pressurised; an angled inlet reduces hose strain, and the body label has space for marking inspection dates.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | GCE / SAFE-GUARD-5 |
| Standard | ISO 5175-1 |
| Safety functions | Flame arresting element (FA), non-return valve (NV), pressure-sensitive cut-off valve (PV), temperature-sensitive cut-off valve (TV), reset mechanism (RM) |
| Oxygen service pressure | 10 bar |
| Fuel gas service pressure | Acetylene 1.5 bar; hydrogen, propane, methane, natural gas, MPS and MAPP 5 bar |
| Flow conversion factors | Oxygen x 0.95, hydrogen x 3.75, acetylene x 1.04, propane x 0.8, methane x 1.33, ethylene x 1.02 |
Article numbers and connections
| Art. Nr. | Gas | Inlet / outlet | Region |
|---|---|---|---|
| 0764456 | Fuel | G3/8 in LH F / G3/8 in LH M | Europe |
| 0764457 | Oxygen | G3/8 in F / G3/8 in M | Europe |
| 0764458 | Oxygen | G1/4 in F / G1/4 in M | Europe |
| 0764461 | Fuel | 9/16 in UNF LH F / M | America |
| 0764462 | Oxygen | 9/16 in UNF F / M | America |
| 0764463 | Oxygen | M16x1.5 F / M | France, China |
| 0764464 | Fuel | M16x1.5 LH F / M | France, China |
How the five functions protect the installation
The sintered flame-arresting element quenches a flame front travelling back from the torch. The non-return valve stops reverse gas flow, which prevents an explosive mixture forming in the hose or regulator. The pressure-sensitive valve closes on the pressure wave of a flashback, and the temperature-sensitive valve shuts off the gas if the unit heats up, for example from a sustained backfire. The reset lever then shows clearly that the device has tripped; the cause should be found before resetting and continuing work.
An oxygen unit and a fuel unit are needed for each regulator pair, with left-hand threads on the fuel side. The flow charts in the GCE brochure show flow against pressure drop for fuel gas, oxygen and acetylene at several inlet pressures, and the brochure gives conversion coefficients for other gases. Check that the expected torch flow can pass the arrestor without an excessive pressure drop, especially with large heating nozzles. The arrestors suit cutting, welding and heating torches such as the GCE X511 Original cutting torch.
Documents and quotation
The GCE SAFE-GUARD-5 brochure (Art. Nr. 735100000698) is attached under Datasheets & Documents. Related equipment is listed in our Oxy-Fuel Cutting category.
For a quotation, list the article numbers or the gas and thread type for each regulator, with quantities.
Datasheets & Documents
- Brochure GCE SAFE-GUARD-5 flashback arrestor brochure (Art. Nr. 735100000698) Download
Reviews (0)
About brand
GCE is a manufacturer of gas control equipment for industrial, medical and specialty gases, with its global headquarters in Steinhausen, Switzerland. The GCE Group was founded in 1987 as a maker of gas equipment. Since 2018 GCE has been part of ESAB.
Seven Star LLC is an independent supplier in Muscat. We list the X511 Original oxy-fuel cutting torch and source GCE gas welding and cutting equipment on request.
GCE equipment for welding and cutting
For gas welding and cutting the manufacturer offers cutting and welding sets, combination torches and hand cutting torches such as the X11 and X511 ranges, cutting nozzles, cylinder regulators and line regulators. Outside welding, GCE supplies equipment for medical gases and for high-purity specialty gases. Products are documented with instructions for use and declarations of conformity.
Ordering GCE torches and regulators: what we need
Give the GCE article number, or the product range with length, head angle and inlet threads. State the fuel gas, acetylene or propane, because the nozzle type depends on it, together with the plate thickness you cut and the safety devices required on site.
Related products
Frequently Asked Questions
Which standard does the SAFE-GUARD-5 meet?
GCE designed it to the maximum protection level of ISO 5175-1.
What are the five functions?
Flame arresting element, non-return valve, pressure-sensitive cut-off, temperature-sensitive cut-off and a reset mechanism.
What is the maximum oxygen service pressure?
10 bar for the oxygen version.
Can it be used with propane?
Yes. The fuel versions are rated 5 bar for propane, and 1.5 bar for acetylene.
Can the SAFE-GUARD-5 be reset after tripping?
Yes, with the trip and reset lever, which can be operated even when pressurised.
