Gedik GKF-1A Portable Electrode Oven with Thermostat (1 Package)

Overview

The Gedik GKF-1A is the smallest oven in the Gedik Welding electrode oven range: a slim, portable tube that holds a single package of covered electrodes, around 100 rods, and keeps them warm right beside the welder. Gedik states that its main function is to keep electrodes at the desired temperature between 60 °C and 200 °C at the points of application, and that it can easily be used with all types of electrodes. In practice this is the personal unit a welder carries up a scaffold, into a vessel or along a pipeline, so the last few metres between the warm store and the arc are covered too.

Seven Star LLC supplies the Gedik GKF-1A to welding contractors, pipeline crews, shutdown teams and fabrication shops in the Sultanate of Oman and across the GCC, with engineering support in Muscat. Customers often order these portable ovens in sets, one per welder, together with larger cabinet ovens for re-drying.

How a Personal Electrode Oven Helps

As general welding knowledge, low-hydrogen electrodes are only as dry as the place they were last kept. A rod that has been properly re-baked in the store can absorb moisture again within hours if it lies in the open on a humid day. Many welding procedures and electrode producers therefore limit the time low-hydrogen electrodes may spend outside a heated container. A personal oven solves this by letting each welder take a limited quantity, keep it at a controlled temperature, and draw out one electrode at a time.

The Gedik GKF-1A does this with a thermostat that holds the contents between 60 and 200 °C, the range given in the manufacturer’s datasheet. The correct holding setting for a given electrode should come from that electrode’s own data sheet. Because the oven is filled from a larger drying oven at the start of a work period, it does not replace re-drying; it protects electrodes that have already been conditioned.

Engineering Design of the Gedik GKF-1A

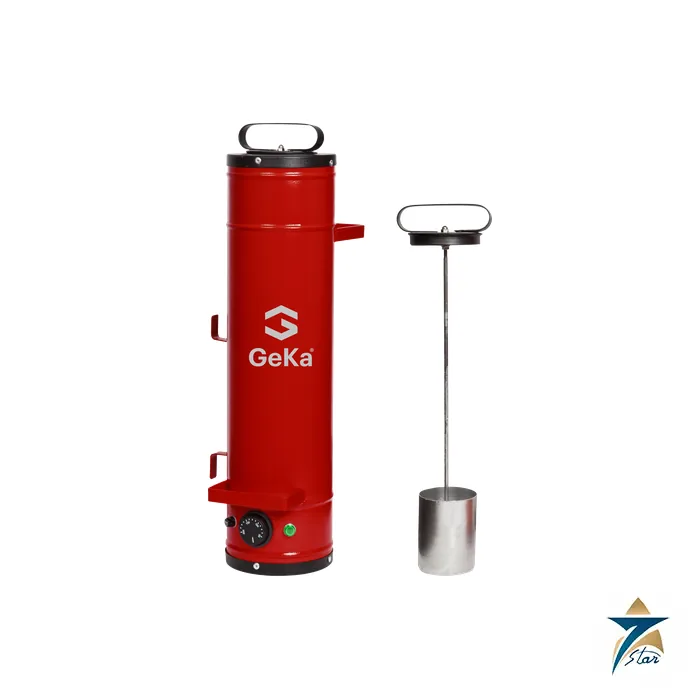

The oven is a tubular body 65 cm long with an external diameter of 10 cm and a weight of 5 kg, according to the datasheet. The product photograph shows a top carrying handle, side brackets that allow the tube to be hooked or stood securely, a removable lid fitted with a rod-holder insert, and a small control area at the base with a thermostat knob and an indicator lamp. This upright tubular shape lets electrodes stand vertically and makes it easy for a welder with gloves to pull out a single rod.

The Gedik GKF-1A runs on a standard single-phase 220 to 240 V supply. The datasheet lists an operating capacity of 20 W and an operating current of 1 A, a very modest load that can be taken from ordinary site power. The complete unit with its standard equipment is ordered under the single code 6051700005, which keeps procurement and replacement straightforward when a project needs a number of identical units.

Key Features

The main practical benefits of the Gedik GKF-1A at the work point are:

• Its capacity of one package, around 100 rods, suits a single welder for a working period.
• A thermostat keeps electrodes between 60 and 200 °C as specified by Gedik.
• The manufacturer states it can easily be used with all types of electrodes.
• The 65 cm by 10 cm tubular body holds electrodes upright for easy one-at-a-time removal.
• At 5 kg the oven is light enough to carry onto scaffolds, into tanks and along pipe routes.
• A 220 to 240 V single-phase connection and low power demand allow use on normal site supplies.
• The lid with rod-holder insert and side brackets shown in the product photograph aid handling at height.
• One order code, 6051700005, covers the complete oven.

Industrial Applications

In Oman the Gedik GKF-1A is used wherever welders work at a distance from the electrode store: tie-ins on cross-country oil, gas and water pipelines, piping erection on refinery and petrochemical units in Sohar, tank and vessel repairs during shutdowns, and structural steel erection at power, desalination and industrial projects in Duqm and Salalah. Placing one at each welder’s position helps contractors satisfy inspector checks on electrode exposure time, which are common on code-controlled work.

Fabrication shops in Muscat also hand a Gedik GKF-1A to each welder in a booth, refilled from a GKF cabinet oven, to keep the workflow orderly. Seven Star LLC supplies these portable ovens in the quantities a crew needs, together with cabinet ovens, welding machines and consumables, and delivers across Oman and the GCC.

Choosing Between the GKF-1A and the GKF-4Y

Gedik offers two work-point ovens. The Gedik GKF-1A carries one package, about 100 rods, weighs 5 kg and is meant to travel with an individual welder. The GKF-4Y holds four packages, about 400 rods, weighs 20 kg, uses a 600 W heater and suits a fixed position shared by a small crew. Many contractors use both: a GKF-4Y at the base of a work front and a GKF-1A with each welder climbing to the joint.

Technical Specifications

The following general data for the Gedik GKF-1A is quoted from the manufacturer’s datasheet attached on this page.

The oven is commonly ordered with arc welding equipment such as the Lincoln Electric Power Wave S500 and the ESAB Rebel EMP 285ic, plus consumables like the Lincoln Electric SuperArc L-59 ER70S-6 Solid MIG Welding Wire. Larger cabinet ovens are listed in our Electrode Drying Ovens category.

Call To Action

For a quotation on the Gedik GKF-1A, tell Seven Star LLC how many welders you need to equip and the electrode types you use. Our Muscat team will confirm quantities, share the attached datasheet and arrange delivery to your site in Oman or anywhere in the GCC.
