DINSE MQZ 305.neo Liquid-Cooled MIG/MAG Torch
Description
550 A liquid-cooled MIG/MAG torch with a ball joint

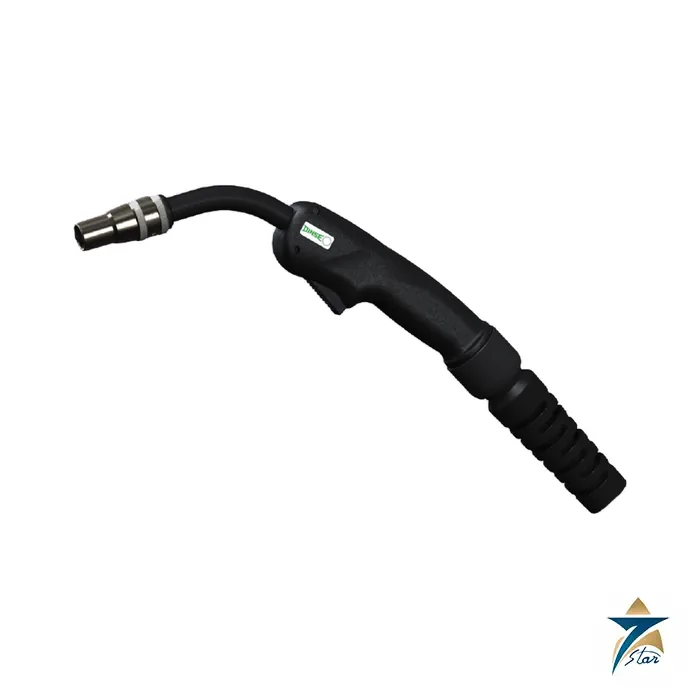

The DINSE MQZ 305.neo is a manual MIG/MAG torch set for heavy-duty welding up to 550 A. It uses DINSE’s dual-circuit liquid cooling, where coolant flows through concentric ducts along the whole torch neck and cools the contact tip and gas nozzle at the same time, and a ball joint on the torch side with kink protection that lets the hose move freely in all directions.
DINSE rates the torch at 550 A with CO2 and 500 A with mixed gas at 60% duty cycle (DIN EN 60 974-7), for wire from 1.2 to 2.0 mm. The catalogue lists non-alloyed and alloyed steels as applications, as well as aluminium, magnesium, copper and nickel alloys. A separate shield gas hose comes as standard on all MQ(Z).neo torch sets to improve gas coverage and avoid gas losses.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | DINSE / DIX MQZ 305.neo (SAZ) (N), up to 550 A |
| Type | Manual MIG/MAG torch set with ball joint, dual-circuit liquid-cooled |
| Duty cycle, CO2 | 550 A at 60% (DIN EN 60 974-7) |
| Duty cycle, mixed gas | 500 A at 60% (DIN EN 60 974-7) |
| Wire diameter | 1.2 – 2.0 mm |
| Cooling | Dual-circuit liquid; open cooling circuit for the gas nozzle |
| Torch neck | 45 degrees, DIX 6-2-305.neo Z 45 (629062350) |
| Torch set 3 m / 4 m / 5 m (Euro-type, SAZ) | 620315631 / 620315641 / 620315651 |
| Torch set 3 m / 4 m / 5 m (without SAZ) | 620315630 / 620315640 / 620315650 |
| Torch set 3 m / 4 m / 5 m (N version) | 620315634 / 620315644 / 620315654 |
| Standard equipment | 1.2 mm steel wire, gas nozzle 17 mm (DIX 1-2-517), contact tip DIX 3-2-1.2 M8, gas diffuser DIX 10-2-305 K, liner DIX DS 4/2.2 |
| Gas nozzles | 17 mm (629010517); 21 mm (629010521); plug-in 17 mm (6290105171) |
| Contact tips | M8 x 28 mm; CR-ZR version; M8 x 90 mm for narrow gap |
| Handle / trigger / micro switch | HS2 (629071038) / S5 (629071147) / 8-2 (629080000) |
| Liners | DIX DS 4/2.2 for 3.5 / 4.5 / 5.5 m: 623000335 / 623000345 / 623000355 |
| Supply hose | Flexible; bend protection at the plug; separate shield gas hose as standard on MQ(Z).neo sets |
Place in the MQ(Z).neo family
The ratings below are taken from the DINSE MQ(Z).neo flyer, with CO2 / mixed gas values at 60% duty cycle.
| Model | Cooling | Duty cycle CO2 / mixed gas | Wire diameter |
|---|---|---|---|
| MQZ 304.neo | Liquid | 500 A / 450 A | 0.8 – 1.6 mm |
| MQZ 305.neo | Liquid | 550 A / 500 A | 1.2 – 2.0 mm |
| MQZ 306.neo | Liquid | 550 A / 500 A | 1.2 – 2.0 mm |
| MQZ 330.neo | Liquid | 400 A / 320 A | 1.0 – 1.2 mm |
| MQ 330.neo | Gas | 300 A / 270 A | 1.0 – 1.2 mm |
| MQZ 230.neo | Liquid | 270 A / 250 A | 0.8 – 1.0 mm |
| MQ 230.neo | Gas | 250 A / 200 A | 0.8 – 1.0 mm |
Selection and compatibility
Choose the length (3, 4 or 5 m) and the machine connection first. The SAZ versions have the machine-side connection fitted as listed, the N versions need a Power Pin or Power Pin set that matches the wire feeder, and the catalogue refers to a Euro-connector variant. Wear parts are compatible within the DINSE 305 series, with gas nozzles of 17 and 21 mm, screw-adapter nozzles of 15, 18 and 21 mm and a narrow gap nozzle of 15 x 125 mm available.
For extreme applications the catalogue notes a cooling jacket with screw adapter DIX SAD 5700 for direct liquid cooling. Use a recessed contact tip where optimum gas coverage is required, and match the liner to the wire diameter and torch length. Check the power source’s cooling unit capacity against a 550 A torch before ordering.
Documents and quotation
The attached DINSE MQ(Z).neo flyer lists the series data; article numbers and wear parts come from the DINSE manual welding catalogue (2022). Other DINSE torches appear under TIG Torches and MIG Guns, including the MZ 304.PLUS.
For a quotation, give the torch set article number or length, the machine connection, wire diameter and material, and the liner and wear parts required.
