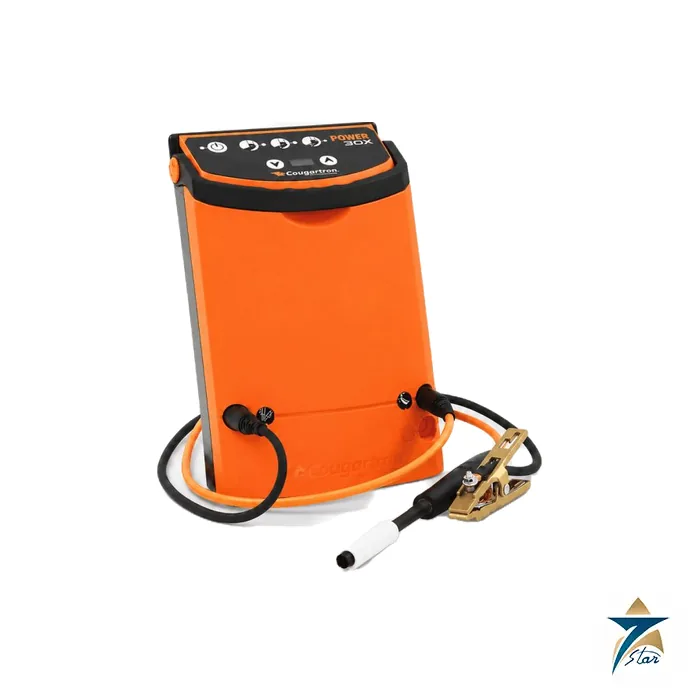

Cougartron Power30X Precision TIG Weld Cleaner

Overview

The Cougartron Power30X belongs to the Cougartron Precision Range and is the more versatile variant of the popular Power30. It is a compact, bench-friendly machine aimed at stainless steel TIG welds, where the bead is narrow and the heat tint band is thin but the finish has to be perfect. Compared with the base Power30, the X version adds integrated polishing, and Cougartron describes a convenient dual output voltage that gives two modes of weld cleaning for removing all types of weld discoloration. Marking is included as well, so one small unit handles cleaning, brightening and identification.

Seven Star LLC supplies the Cougartron Power30X to fabrication workshops, instrument and tubing contractors, and hygienic equipment builders in the Sultanate of Oman and the GCC, with engineering support in Muscat. Our team can recommend the right set, from the Basic Set in a cardboard box to Starter Set C with a marking kit, and match the optional fluid feed system to your production rate.

Operating Principle of the Cougartron Power30X

Generally speaking, TIG welding of austenitic or duplex stainless steel leaves a straw, blue or dark oxide film along the weld toe. That film has less chromium than the base metal, which weakens corrosion resistance precisely where the structure is most sensitive. An electrochemical cleaner removes it by applying a low voltage between the workpiece and a carbon-fibre brush soaked in an electrolyte; the reaction at the brush tip dissolves the oxide and leaves a clean surface that can re-form its natural passive layer.

The Cougartron Power30X cleans on AC between 10 and 14 V, the dual output voltage referred to by the manufacturer, while polishing runs on 10 V DC for a brighter, more reflective result on visible welds. Current is set from 5 to 30 A in 5 A increments for both modes, which is well matched to the narrow beads of TIG work on sheet, tube and thin-wall pipe. A marking mode at 2 to 10 A and 10 V AC lets the operator etch logos, part numbers or traceability codes through a stencil.

Engineering Design

The Cougartron Power30X is housed in a compact upright cabinet 15 inches high with the handle up, 9 inches wide and 7 inches deep, rated IP51 and carrying CE, UL and CSA certification. The control panel is a splash-proof membrane that is easily wiped clean, an important detail on a machine that works with acidic fluids every day. Controls cover power, clean, polish and mark modes, power adjustment and a digital display.

Power input to the Cougartron Power30X is dual voltage, so the same machine runs on a 110 V or 230 V supply; the US datasheet lists 110 V AC, 50/60 Hz at 4 A with a 6 ft input cable. Output cables are 12 ft long, 8 AWG, with x-connectors rated at 50 A. A twist shroud is standard for smart, easy brush length control, and the wand takes a single M6 Power brush. When continuous production justifies it, the Cougartron Power30X integrates easily with the FL10 or FL20 fluid feed systems.

Key Features

The Cougartron Power30X brings the following practical benefits to precision TIG weld cleaning:

• It delivers fast and effective cleaning on all kinds of TIG welds in stainless steel.
• Integrated polishing on DC output brightens visible welds after cleaning.
• Cleaning and polishing current is adjustable from 5 to 30 A in 5 A steps for fine control on thin material.
• Dual output voltage of 10 to 14 V AC provides two modes of weld cleaning.
• Marking from 2 to 10 A supports stencil etching for traceability and branding.
• A twist shroud is supplied as standard for simple brush length adjustment.
• The splash-proof membrane control panel wipes clean easily after use.
• Dual 110 V / 230 V input and a compact body make the unit easy to carry between workstations and sites.

Industrial Applications

A typical home for the Cougartron Power30X in Oman is a workshop that TIG welds thin-wall stainless items: hygienic tube and fittings for food and beverage lines, laboratory and pharmaceutical equipment, kitchen and hospitality fabrication, and instrument tubing for analyser shelters and chemical-injection skids. These jobs need a careful, controlled clean rather than raw power, and the 5 A steps let operators avoid over-etching thin surfaces.

The compact size also makes the Cougartron Power30X useful for field teams who touch up TIG repair welds inside plants in Sohar, Duqm and Salalah, carrying the machine to the job instead of moving parts to a pickling bay. Seven Star LLC supplies the machine together with M6 Power brushes, CGT-550 cleaning and polishing fluid, CGT-N5 neutraliser, marking sets and FL10 or FL20 fluid feed units across Oman and the GCC.

Technical Specifications

All Cougartron Power30X values below come from the manufacturer datasheet attached on this page.

Optional parts include a mobile equipment stand, a mobile workstation, 12 ft extension cables in orange and black, and a replacement twist shroud. For the TIG and MIG power sources that create these welds, see the Lincoln Electric Power Wave S500, the ESAB Rebel EMP 285ic and the Lincoln Electric SuperArc L-59 ER70S-6 Solid MIG Welding Wire, and browse the complete Weld Cleaning & Passivation range.

Call To Action

To get a quotation for the Cougartron Power30X, tell Seven Star LLC which set you prefer, whether you need a fluid feed system and what material thicknesses you weld. Our Muscat team will confirm the package, share the attached datasheet and arrange delivery anywhere in Oman and the GCC.
