Gedik GKF-4Y Electrode Holding Oven with Thermostat (4 Packages)

Overview

The Gedik GKF-4Y is a cylindrical electrode oven with thermostat from Gedik Welding, designed to sit at the point of application rather than in the store. It holds four packages of covered electrodes, which Gedik expresses as 400 rods, and its main function according to the manufacturer is to keep electrodes at the desired temperature level, between 60 and 200 °C, right where the welder is working. Gedik states that it can easily be used with all types of electrodes. The oven bridges the gap between a large drying cabinet in the store and the welder’s hand, so properly conditioned rods do not cool down and re-absorb moisture while a crew is working through a shift.

Seven Star LLC supplies the Gedik GKF-4Y to welding contractors, fabrication shops and plant maintenance teams in the Sultanate of Oman and the GCC, with engineering support in Muscat. We often supply it alongside larger re-drying ovens so that customers can build a complete electrode control chain from receipt to the arc.

Why Electrodes Are Held Warm at the Work Point

As general background, re-drying in a large oven only solves half of the moisture problem. Once electrodes leave the warm store and lie in an open tin or on a steel table, their coating starts to absorb humidity again, and with low-hydrogen basic electrodes that exposure time is usually limited by the electrode producer and by the welding procedure. A heated holding oven such as the Gedik GKF-4Y at the welding position keeps the electrodes above ambient temperature, so the welder can take one rod at a time while the rest stay protected. This is common practice on pressure piping, structural work and any procedure with hydrogen control requirements.

The Gedik GKF-4Y uses an adjustable thermostat to set the holding temperature. The descriptive text of the datasheet gives a working band of 60 to 200 °C at the point of application, while the general data table lists the maximum heating temperature as 60 to 300 °C. The setting chosen should follow the electrode manufacturer’s recommendation for holding temperature, which for many basic electrodes is considerably lower than the re-drying temperature used in the store oven.

Engineering Design of the Gedik GKF-4Y

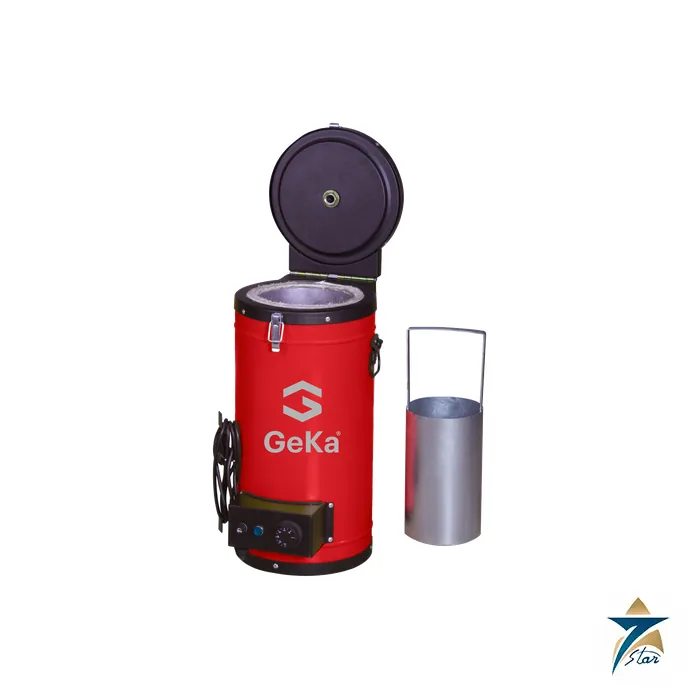

The Gedik GKF-4Y body is an insulated steel cylinder 50 cm high with an external diameter of 27 cm. Inside, the chamber has a diameter of 15 cm and a depth of 49 cm, long enough to hold full-length electrodes upright. The product photograph shows a hinged lid with a latch, a removable inner container with a carrying handle, and a control box on the side with the thermostat knob and supply cable. The complete oven weighs 20 kg, light enough to be moved by hand to the next joint or the next floor of a structure.

Power comes from a standard single-phase 220 to 240 V supply, which is a key difference from the three-phase GKF cabinet ovens. The heater is rated at 600 W and draws 3 A, so the Gedik GKF-4Y can be plugged into a normal site distribution board or welding machine auxiliary outlet where available. Heat insulation is fitted to keep the temperature stable and limit the outer surface temperature. One order code, 6051700001, covers the complete unit.

Key Features

The Gedik GKF-4Y brings these advantages to the welding position:

• A capacity of 4 packages, around 400 rods, supports a welder or small crew for an extended period.
• The adjustable thermostat holds electrodes in the working band of 60 to 200 °C described by Gedik.
• It can be used with all types of electrodes, according to the manufacturer.
• An internal depth of 49 cm accommodates long electrodes standing upright.
• A single-phase 220 to 240 V supply at 3 A allows connection to ordinary site power.
• The 600 W heater is economical for continuous holding during a shift.
• Insulation is fitted to keep the chamber warm and the outer surface safer to handle.
• At 20 kg the oven can be carried to the work location and repositioned as work progresses.

Industrial Applications

On construction sites in Oman, the Gedik GKF-4Y is typically placed next to the welding positions on pipe racks, tank shells and steel structures, where welders are working away from the main store. Tie-in welding during refinery and gas plant shutdowns in Sohar, field joints on water transmission pipelines, and structural repairs at power stations all benefit from having conditioned electrodes within arm’s reach, especially in the humid summer months along the coast.

Fabrication workshops also position a Gedik GKF-4Y at each welding booth, filled from the central drying oven at the start of a shift, which keeps electrode control simple and auditable. Seven Star LLC supplies the oven together with large drying cabinets, welding machines and consumables, and arranges delivery to sites in Muscat, Duqm, Salalah and throughout the GCC.

Technical Specifications

The general data for the Gedik GKF-4Y below is reproduced from the manufacturer’s datasheet attached on this page.

The oven is often supplied with arc welding power sources such as the ESAB Rebel EMP 285ic and the Lincoln Electric Power Wave S500, and with consumables like the Lincoln Electric SuperArc L-59 ER70S-6 Solid MIG Welding Wire. More electrode ovens are available in our Electrode Drying Ovens category.

Call To Action

To request a quotation for the Gedik GKF-4Y, tell Seven Star LLC how many welding positions you need to equip and which electrodes you use. Our Muscat team will recommend quantities, share the attached datasheet and deliver to your site anywhere in Oman or the GCC.
