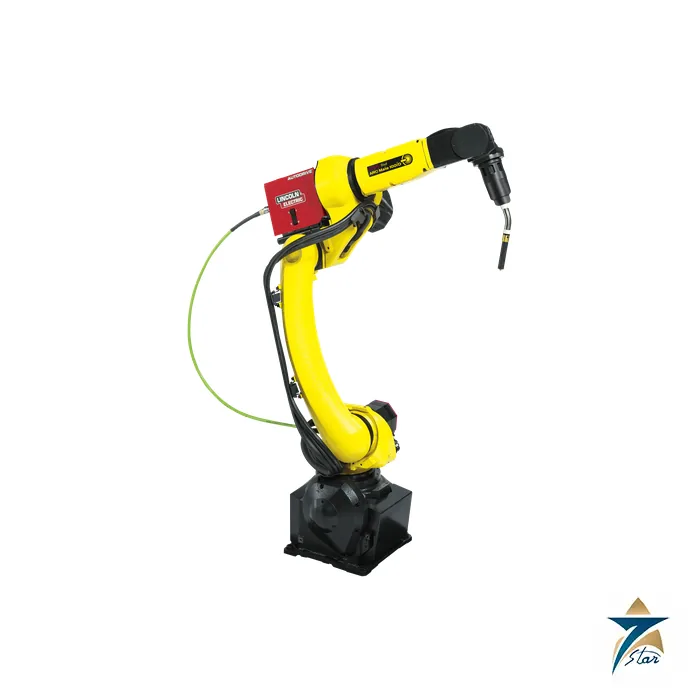

FANUC ARC Mate 100iD Arc Welding Robot

Description

Overview

The FANUC ARC Mate 100iD is a six-axis industrial robot designed specifically for arc welding. It carries 12 kg at the wrist, reaches 1441 mm, and repeats positions to within plus or minus 0.02 mm based on ISO 9283. FANUC describes it as a new generation of arc welding robot that stands out for productivity and rapid integration, with a curved, compact arm that works comfortably inside tight welding cells and a fully integrated welding hosepack and utility cables.

Seven Star LLC supplies the FANUC ARC Mate 100iD to manufacturers and fabricators in Oman and the GCC that are moving from manual to robotic MIG/MAG welding. With engineering support in Muscat, we help customers assess part families, fixture concepts and welding power source compatibility, and we coordinate with qualified integrators when a complete cell is needed.

Working Principle of a Robotic Welding Cell

As general background, a welding robot moves the torch along a programmed path while the welding power source, wire feeder and shielding gas deliver the arc. The robot controller coordinates travel speed, torch angle and weaving with arc start and stop signals so that every part receives the same weld, shift after shift. On the FANUC ARC Mate 100iD the six axes provide the reach and wrist articulation needed to present the torch correctly to fillet, lap and butt joints on complex fabrications.

Seam tracking sensors, vision systems and air lines can be routed with the torch cable through the hollow arm, so the robot can use sensing functions without loose external cables. FANUC pairs the robot with its R-30iB Plus controller, which the manufacturer describes as having an improved user interface and a more flexible appearance. In practice this means programming, weld schedules and diagnostics are handled from one teach pendant.

Engineering Design of the FANUC ARC Mate 100iD

The key mechanical feature is the hollow construction. FANUC states that the wrist has the largest hollow in its class at 57 mm, and that axis 1 uses a 108 mm hollow reducer, so welding dressout, third-party supplies and sensor cables from the flange can be led through the base. Routing the hosepack inside the arm prevents it from snagging on jigs and clamps, allows the wrist to articulate fully into narrow spaces, and improves overall system reliability by reducing cable wear.

The datasheet lists IP54 body protection as standard with IP55 optional, and IP67 protection for the wrist and J3 arm, which matters in a spatter-filled welding environment. Allowable wrist moments are 26 N·m for J4 and J5 and 11 N·m for J6, with inertias of 0.9, 0.9 and 0.3 kg·m² respectively. For the FANUC ARC Mate 100iD, FANUC lists floor, angle and inverted mounting, a 343 by 343 mm footprint and average power consumption of about 1 kW, which keeps the robot easy to place within compact cells.

Planning a Robotic Welding Project

Before ordering a FANUC ARC Mate 100iD, it is worth reviewing a few general points that decide whether a robotic cell will succeed. Parts must be presented consistently, so fixtures and, where needed, positioners should hold joints within the tolerance the welding process can bridge. Joint access must be checked against the robot reach and wrist orientation, which is where the operating space drawing in the datasheet becomes useful. The welding power source, wire feeder and torch must be compatible with the robot interface, and operators need training in programming and in daily maintenance such as nozzle cleaning and contact tip changes. Addressing these points early helps the FANUC ARC Mate 100iD reach its expected output quickly after installation.

Key Features

Engineers shortlisting the FANUC ARC Mate 100iD usually focus on these points.

  • A 12 kg wrist payload carries a welding torch, sensors and collision protection with margin to spare.
  • The 1441 mm reach covers typical fixture-mounted parts and positioner set-ups.
  • Repeatability of plus or minus 0.02 mm (ISO 9283) keeps torch position consistent from part to part.
  • A 57 mm hollow wrist and 108 mm J1 hollow reducer route the hosepack and sensor cables internally.
  • The integrated hosepack reduces interference with peripherals and work cell equipment.
  • IP67 protection on the wrist and J3 arm guards against spatter and dust in welding cells.
  • Floor, angle and inverted mounting give flexibility in cell layout.
  • A larger work envelope, including the backflip area, widens the usable working range.

Industrial Applications

Robotic arc welding pays back fastest on repeated parts with consistent fit-up. In Oman the FANUC ARC Mate 100iD suits manufacturers of steel furniture and racking, trailer and vehicle body builders, producers of cable trays, supports and electrical enclosures, and fabricators of repeat structural brackets for construction and infrastructure projects in Muscat, Sohar and the Salalah free zone. It can also serve training centres that are preparing technicians for automated welding work.

A robot is only as good as its welding process, and Seven Star LLC supplies the equipment around it, such as the Lincoln Electric Power Wave S500 advanced-process power source, the ESAB Rebel EMP 285ic for manual touch-up welding, and Lincoln SuperArc L-59 ER70S-6 solid wire, a common choice for robotic carbon steel MIG. See our welding robots and automation category for related products. Our engineers can help define a FANUC ARC Mate 100iD package around your part mix and output targets.

Technical Specifications

The values below are taken from the FANUC ARC Mate 100iD datasheet, with mounting, footprint and controller details from the FANUC product page.

Parameter Specification
Model FANUC ARC Mate 100iD
Controlled axes 6
Max. payload at wrist 12 kg
Max. reach 1441 mm
Repeatability ±0.02 mm (based on ISO 9283)
Motion range J1 340° (370° on request); J2 235°; J4 380°; J6 900°
Wrist moment / inertia J4 26 N·m / 0.9 kg·m²; J5 26 N·m / 0.9 kg·m²; J6 11 N·m / 0.3 kg·m²
Protection Body IP54 standard / IP55 optional; wrist and J3 arm IP67
Hollow wrist / J1 reducer 57 mm / 108 mm
Mounting Floor, angle, inverted
Footprint 343 mm x 343 mm
Average power consumption 1 kW
Controller R-30iB Plus

Documentation

The attached FANUC ARC Mate 100iD datasheet shows the specification table together with external dimensions and the operating space drawing, which is essential for cell layout. Please plan peripheral equipment so that it does not interfere with the robot operating space shown in that drawing.

How to Order

To request a quotation for the FANUC ARC Mate 100iD, send Seven Star LLC drawings or photos of the parts you plan to weld, your expected volumes and the welding process you use today. Our Muscat engineering team will review the application and help define the robot, power source and consumables for automated welding in Oman and the GCC.
