Brand: Pandjiris

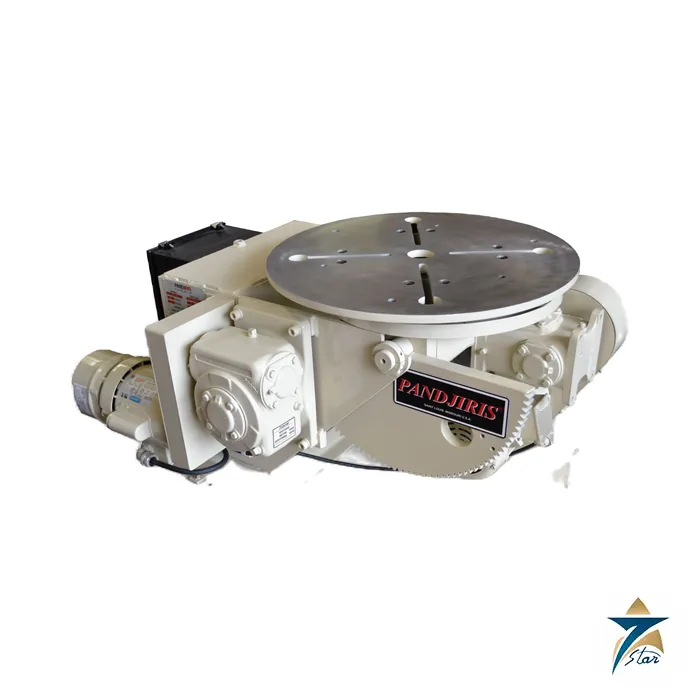

Pandjiris 15-4 1,500 lb Welding Positioner
Description
Compact 1,500 lb positioner for bench-height weldments
The Pandjiris 15-4 MVRHTFB is a 1,500 lb welding positioner that turns and tilts small to medium weldments so the joint can be welded in the flat or horizontal position. Rotation is motor driven and variable from 0.08 to 1.60 RPM with Forward-Stop-Reverse switching and dynamic braking, while the 24 in square table is tilted by hand crank through 135 degrees. The fixed base holds the table at 23-1/4 in, low enough for full tilt, and the unit runs from a 115 V single-phase supply.
Two further versions use the same rotation drive. The 15-4 MVRMTAB adds a motorized tilt and an adjustable base with three pinned heights, giving a 20 to 33 in swing radius at 90° tilt. The 15-4 MVRMT-VPL has a vertical power lift on an acme jack screw and linear rail guides, setting the table anywhere between 26 and 38 in above the floor.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Pandjiris / 15-4 |
| Versions | MVRHTFB fixed base, hand-crank tilt; MVRMTAB adjustable base, motorized tilt; MVRMT-VPL vertical power lift |
| Load capacity | 1,500 lb, 4 in overhung from table face, 4 in eccentricity |
| Rotation drive | 1/2 HP DC motor, variable 0.08 – 1.60 RPM |
| Rotation torque | 6,000 in-lb |
| Tilt | 0 – 135°; hand crank (MVRHTFB) or 1/2 HP AC brakemotor, 135° in 22 s (MVRMTAB) |
| Tilt torque (motorized) | 12,000 in-lb inherent |
| Table | 24 in square, 4 T-slots for 1/2 in ANSI T-nuts, 2 in pilot hole x 1 in deep, 3/4 in through hole |
| Swing radius at 90° tilt | 20 in (fixed base); 20 – 33 in (adjustable base, 3 positions); 19 – 32 in (VPL) |
| Table height | 23-1/4 in fixed base; 26 – 38 in VPL |
| Input power | 115 V, single phase, 60 Hz, 10 A (MVRMTAB draws 20 A) |
| Control | Plug-in hand pendant on 25 ft cable: Forward-Stop-Reverse-Weld/Rapid-E-Stop and speed potentiometer; 24 VAC control |
| Overall dimensions | 30-1/4 in wide x 45-3/4 in long; tilt axis height 19-1/2 in |
| Approximate shipping weight | 750 lb |
Overhung load, options and installation notes
Pandjiris derates the 15-4 as the load’s centre of gravity moves away from the table face: 1,500 lb from 0 to 4 in, 1,200 lb at 6 in, 750 lb at 12 in, 429 lb at 24 in, 353 lb at 30 in, 300 lb at 36 in and 261 lb at 42 in. Add the fixture weight to the part weight and check the combined centre of gravity before choosing this model over a larger frame such as the 30-6.
The drawing shows a rotation offset of 3 in and an inherent overhang of 4 in. Pin positions on the adjustable base give table heights from 23-1/2 in to 37-1/2 in. The equipment is high-frequency protected, so it can be used with TIG welding without disturbing the speed control.
Optional items listed by Pandjiris include Forward/Stop/Reverse and variable-speed foot switches, a preset digital tachometer, the Dialweld meter that sets table RPM from the weld diameter and travel speed, tach feedback, 600 PT and 1200 PT copper welding grounds, a 24 in round table, a pendant with tilt buttons, wireless foot switch or pendant, and the OS-15 outboard support stand of 1,500 lb capacity for the adjustable-base unit.
Documents and quotation
The Pandjiris 15-4 specification sheet is attached under the documents tab. See Welding Robots & Automation for related equipment, including the heavier Pandjiris 30-6 welding positioner.
For a quotation, state the base version, the supply voltage available on site, the load weight and its centre-of-gravity distance, and any accessories required.
Datasheets & Documents
- Datasheet Pandjiris 15-4 positioner specification sheet Download
Reviews (0)
About brand
Pandjiris, Inc. of St. Louis, Missouri, has built weld positioning and welding automation equipment for more than 75 years. Its range includes welding positioners, manipulators, turning rolls, self-centring grippers, seam welders, slides and swivels, head and tailstocks, turntables and weld controllers. Seven Star LLC, an independent supplier in Muscat, lists the Pandjiris 30-6 positioner and sources Pandjiris positioning equipment for fabrication shops.
Pandjiris positioners and automation
Standard positioners run from small fixed-base and pinned-tilt units to power-elevating models for heavy loads, and drop-centre or gas-chambered versions are built to order. Pandjiris often combines positioners with manipulators to form mechanised cells for MIG (GMAW) and submerged arc work on pressure vessels, pipe, tanks and structural parts.Ordering Pandjiris equipment: what we need
Give the model, base type and input voltage. For new applications, send the workpiece weight, its centre of gravity from the table face and its largest swing diameter. We check the rating against the Pandjiris specification sheet and provide it on request.
Related products
Frequently Asked Questions
What load does the Pandjiris 15-4 carry?
1,500 lb with the centre of gravity 4 in from the table face and 4 in eccentricity. At 12 in the rated load falls to 750 lb.
What power supply does the 15-4 need?
The fixed-base MVRHTFB runs on 115 V single phase, 60 Hz, 10 A. The motorized-tilt adjustable-base version draws 20 A.
How is the table tilted?
The MVRHTFB uses a hand crank through 0 to 135 degrees. The MVRMTAB and MVRMT-VPL versions have a 1/2 HP AC brakemotor that tilts 135 degrees in 22 seconds.
What is the rotation speed range?
Rotation is variable from 0.08 to 1.60 RPM via a 1/2 HP DC motor with Forward-Stop-Reverse switching and dynamic braking.
Can the OS-15 outboard stand be used with the fixed base?
Pandjiris states the fixed-base 15-4 is too low for the OS-15 stand; it is intended for the adjustable-base version unless the positioner is mounted on a riser.
