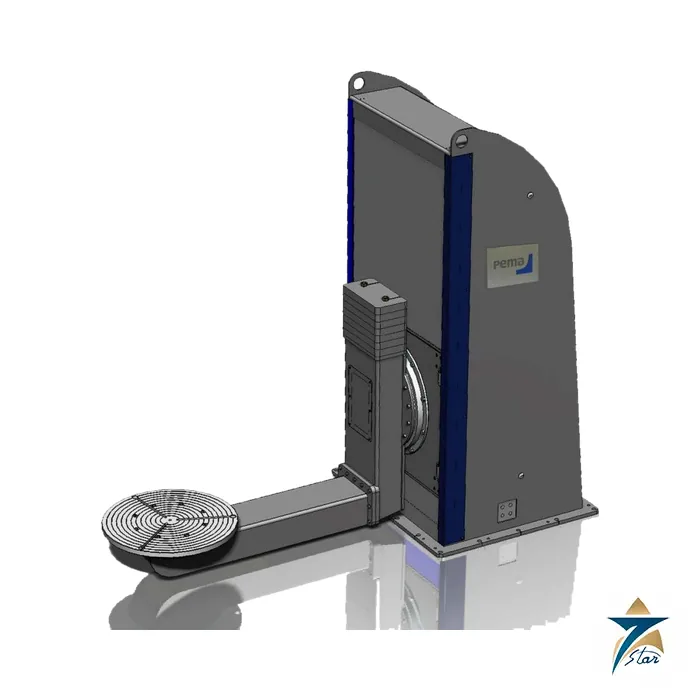

Pemamek SPSi 1500 Skyhook PRO Welding Positioner, 1,500 kg

Name: Pemamek SPSi 1500 Welding Positioner – Datasheet & Quote
Brand: Pemamek
SKU: SPSi 1500

Description

A tilt-and-rotate positioner for small and medium fabrications up to 1,500 kg

The Pemamek PEMA SPSi 1500 is the entry size of the Skyhook PRO range that Pemamek builds in Loimaa, Finland. It carries 1,500 kg on a 700 mm table plate, rotates it at 0.07 to 1.3 rpm and tilts it at 0.1 to 1 rpm, while a motorised height axis moves the tilting axle between 850 and 1,650 mm. That combination lets a welder bring seams, flanges and nozzles on skids, pump bases, small pressure parts and fabricated frames to a comfortable down-hand position.

Pemamek explains that optimal and repeatable positioning improves ergonomics and safety and that the PRO software stores movements so the same workpiece is turned the same way each time. The positioner is supplied with the durable wired RC32H remote control; the PRO application runs in a web browser over WiFi on a phone, tablet or laptop and covers programming of the positioner, machine diagnostics, a maintenance log and note-taking.

Technical specifications

Parameter	Specification
Series	Skyhook PRO, model PEMA SPSi 1500
Maximum load	1,500 kg
Rotation speed	0.07-1.3 rpm
Maximum rotational torque	1,000 Nm
Maximum tilting torque	3,000 Nm
Tilting speed	0.1-1 rpm
Lifting time	65 s
Tilting axle height, min-max	850-1,650 mm
Offset distance	400 mm
Maximum workpiece rotation diameter	2,400 mm
Table plate diameter and T-slots	700 mm; 3 x M12 DIN508
Integrated grounding, maximum current	700 A
Dimensions (W x L x H)	1,160 x 2,980 x 2,500 mm
Weight	2,260 kg
Mains supply	3 x 400 VAC + N + PE, 50 Hz; 20 A; 12 m supply cable
Remote control	Wired RC32H included
Options printed	Tablet for the PRO application, foot pedal, external control of rotation, wireless remote control

Load capacity and workpiece selection

The datasheet carries two load diagrams that matter when choosing a size. The 1,500 kg rating is available while the centre of gravity stays close to the table: rotational torque of 1,000 Nm limits how far the centre of gravity can sit from the rotation axis, and the 3,000 Nm tilting torque limits the distance from the table surface. Multiply the workpiece mass by each distance to check both torques before specifying the unit, and compare against the diagrams in the datasheet rather than the headline load alone.

Workpiece diameter up to 2,400 mm can be rotated, and the 400 mm offset sets the position of the centre of gravity relative to the tilt axis. For heavier or longer loads move up the range; the series is listed by Pemamek from 750 kg to 15,000 kg. Other sizes in the Skyhook PRO range:

Model	Description
SPSi 750	Smallest Skyhook PRO; series range starts at 750 kg
SPSi 1500	1,500 kg; rotational torque 1,000 Nm; tilting torque 3,000 Nm
SPSi 3500	3,500 kg class; rotational torque 2,800 Nm; tilting torque 6,000 Nm; table 950 mm
SPSi 5000	5,000 kg; rotational torque 6,000 Nm; tilting torque 10,000 Nm; table 1,100 mm
SPSi 10000	10,000 kg; rotational torque 18,000 Nm; tilting torque 20,000 Nm; table 1,490 mm

Ordering and what to confirm before ordering

Pemamek lists the SPSi 1500 by model name and does not print a stock code on its datasheet; quotation is by specification. Please state the heaviest workpiece, its centre-of-gravity distances, the largest rotating diameter, the supply voltage, the welding power source for the integrated grounding path and whether wireless control or a foot pedal is required.

The unit is rated for a 400 V, 50 Hz three-phase supply with neutral and earth, so confirm the site supply and floor loading (2,260 kg net weight). For lighter work on the site compare the Pandjiris 15-4 positioner, or browse all Welding Robots & Automation.

Datasheets & Documents

Datasheet Pemamek PEMA SPSi 1500 datasheet Download
