Pemamek APSi 3500 Skymaster PRO Hydraulic Welding Positioner

Name: Pemamek APSi 3500 Welding Positioner – Datasheet & Quote
Brand: Pemamek
SKU: APSi 3500

Description

A hydraulic three-axis positioner for extra-heavy fabrications

The Pemamek PEMA APSi 3500 is a Skymaster PRO positioner. Where the Skyhook PRO uses motorised rotation, tilting and height adjustment, the Skymaster offers broad hydraulic three-axis movement: the height, tilt and rotation of the workpiece are adjustable and programmable. The APSi 3500 is rated at 35,000 N (the load diagram shows 3,500 kg), has a hydraulic tilt through 135 degrees in 30 seconds, and a 950 mm table plate with four M20 DIN508 T-slots.

Height covers 980 to 1,750 mm in a footprint of only 1,030 mm by 2,340 mm and 1,700 kg of weight, which makes it compact for its capacity. Its main features per Pemamek are remotely programmable movements with a memory function, a library of stored work cycles and handling positions, always-correct welding positions, a quick learning period for new employees and comprehensive diagnostics. The positioner is supplied with the durable wired RC32H remote control; the PRO application runs in a web browser over WiFi on a phone, tablet or laptop and covers programming of the positioner, machine diagnostics, a maintenance log and note-taking.

Technical specifications

Parameter	Specification
Series	Skymaster PRO, model PEMA APSi 3500
Maximum load	35,000 N (load diagram marked 3,500 kg)
Rotation speed	0.06-1.3 rpm
Maximum rotational torque	2,800 Nm
Tilting torque	7,500 Nm
Tilting	Hydraulic, 135 degrees; 0 to maximum angle in 30 s
Height, min-max	980-1,750 mm
Table plate diameter and T-slots	950 mm; 4 x M20 DIN508
Integrated grounding, maximum current	700 A
Dimensions (W x L)	1,030 x 2,340 mm
Weight	1,700 kg
Mains supply	3 x 400 VAC + N + PE, 50 Hz; 16 A; 12 m supply cable
Remote control	Wired RC32H included
Options printed	Tablet for the PRO application, foot pedal, external control of rotation, wireless remote control

Skymaster compared with Skyhook, and the sibling sizes

Select a Skymaster when the job needs continuous, large-angle tilting with hydraulic smoothness in a compact base, for example turning a box girder or nozzle-heavy shell from horizontal through 135 degrees. The Skyhook PRO uses motorised rotation, tilting and height adjustment, so check both ranges against the workpiece. Compare the offered sizes in the Skymaster PRO range:

Model	Description
APSi 1500	Load 15,000 N; rotational torque 1,000 Nm; tilting torque 3,000 Nm; tilt time 25 s
APSi 3500	Load 35,000 N; rotational torque 2,800 Nm; tilting torque 7,500 Nm; tilt time 30 s
APSi 7000	Load 70,000 N; rotational torque 9,000 Nm; tilting torque 14,000 Nm; tilt time 55 s
APSi 10000	Load 100,000 N; rotational torque 13,000 Nm; tilting torque 40,000 Nm; tilt time 110 s

Pemamek states that the Skymaster PRO series spans 750 kg to 35,000 kg across the full catalogue.

Ordering and what to confirm before ordering

The datasheet describes the model by name, not a stock code, so quotation is by specification. Please state the workpiece mass and centre-of-gravity distances in line with the two diagrams, the largest diameter, the arc process, and the supply. A hydraulic unit needs a suitable place for the pump and service access, and the 700 A grounding rating should be matched to the power source in use.

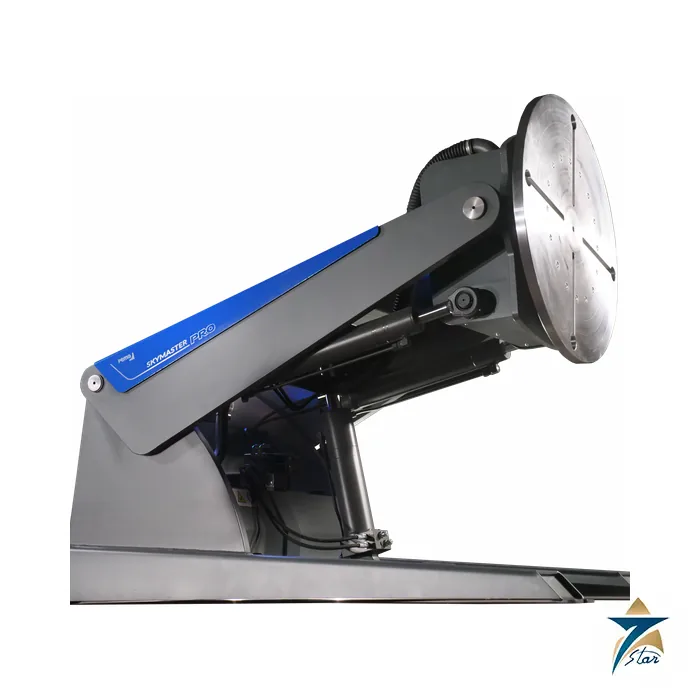

The photo on this page is the series image of the Skymaster PRO range, cropped at the base in the official source. For a smaller manual alternative compare the Pandjiris 15-4 positioner, or browse all Welding Robots & Automation.

The APSi 3500 is the smaller of the two Skymaster sizes covered here. At 1,700 kg it is light enough for many existing floors, but confirm the slab condition, cable routing for the 12 m supply, hydraulic service access and the clearance needed for the 135 degree tilt around the workpiece.
