Brand: Promotech

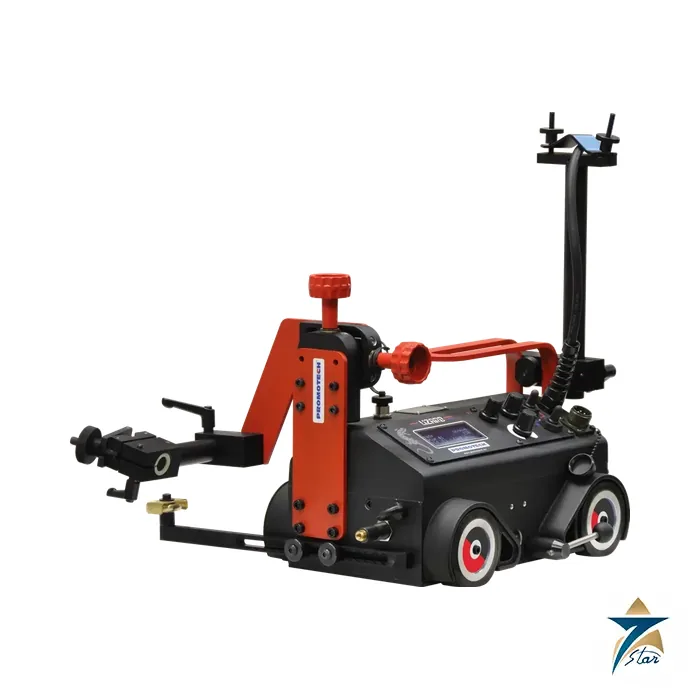

Promotech LIZARD Programmable Welding Tractor
Description
A programmable carriage for stitch and multi-pass fillet welding
The Promotech LIZARD is a portable, trackless welding tractor with a program memory. It runs on four magnetic drive wheels, follows the joint with roller guide arms and switches the welding arc on and off together with travel. Unlike a simple constant-speed carriage, it can be programmed for continuous welds or for stitch welds with set weld lengths, gaps and end treatment, and it travels at full speed between stitches.
Up to 40 complete programs are stored in non-volatile memory, so a procedure qualified for one joint can be recalled exactly for the next. It is used in trailer, tank, transformer and shipbuilding work where intermittent or long fillet welds are repeated many times.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Promotech / LIZARD |
| Supply voltage | 1~ 115–230 V, 50–60 Hz or 42 V, 50–60 Hz |
| Power | 25 W |
| Welding positions (EN ISO 6947 / AWS) | PA/1F/1G, PB/2F, PC/2G, PD/4F, PE/4G; PF and PG 3F/3G with optional oscillator |
| Programmable variables | tractor speed, weld length, skip, crater fill, backweld, total length |
| Program memory | up to 40 |
| Horizontal / vertical speed | 0–130 cm/min / 0–120 cm/min |
| Pulling force | 220 N horizontal; 150 N vertical |
| Torch diameter | 16–22 mm; up to 35 mm option |
| Minimum curve radius | 1,500 mm |
| Minimum workpiece thickness / ground clearance | 5 mm / 5 mm |
| Limit switches | both sides |
| Weight | 14 kg (31 lb) |
| Order numbers | WOZ-0754-10-20-02-0 (EU plug); WOZ-0754-10-10-03-0 (UK plug); WOZ-0784-10-42-01-0 (42 V) |
Programming the weld sequence
A LIZARD program is built from four stages: weld length, crater fill, backweld and skip, repeated until the set total length is reached. Crater fill holds the arc at the end of each stitch, and backweld reverses a short distance to tie in the crater. Programming is done with two-function buttons on the LCD panel, and the menu is available in English, French, German, Polish, Portuguese, Russian, Spanish and Turkish.
Oscillator and guiding options
The optional pendulum oscillator ZSP-0477-10-00-00-0 adds weaving for vertical-up fillets and butt joints. It swings 0–11°, gives 1–30 mm amplitude at a 150 mm radius, 7–164 cycles/min at 10 mm amplitude and 0–5 s dwell at each side, draws 12 W and weighs 2.6 kg. Two torches can be carried without oscillation using the dual torch mount. Guide arms in 20 x 20 mm section are available as low, high, edge-following, adjustable, magnet and track-following pairs, and a 36 mm flexible track can be used where no guiding edge exists.
The shipping set includes standard guide arms, a short-rod torch holder with 16–22 mm clamp, cable anchor, 6.5 m dual arc-ignition cable, 4 mm hex wrench, plastic box and manual.
Documents and quotation
The Promotech LIZARD product sheet is available on this page; further mechanised welding equipment is under Welding Robots & Automation.
For a quotation, state the supply voltage and plug, whether the oscillator is required, the torch diameter and the joint positions.
Datasheets & Documents
- Datasheet Promotech LIZARD product sheet (EN, rev. 25.12) Download
Reviews (0)
About brand
Promotech is a Polish manufacturer of portable machine tools for the metal industry, delivering machinery since 1987 from its own design and production facility in Poland. Its range covers magnetic drilling machines, plate and pipe bevelling machines, welding and cutting tractors and welding automation. Seven Star LLC, an independent supplier in Muscat, lists the Promotech PRO-5 PB portable pipe beveller and sources Promotech machines for fabrication and maintenance teams.
Promotech product groups
The catalogue is organised into drilling and punching machines, plate and pipe bevellers, welding and cutting tractors with their tracks and accessories, welding and cutting automation, and wire feeder booms. Several machines can also be run from the Cordless Alliance System (CAS) battery platform. The PRO-5 PB listed here is an ID-clamping pipe beveller for small-bore pipe and tube, offered with electric, pneumatic or battery drive.
Ordering Promotech machines: what we need
Give the exact model, the drive you want and, for electric machines, the site voltage. For bevellers, add the pipe inside and outside diameters, the wall thickness, the material and the bevel profile, because mandrels, spindle discs and tool bits depend on them. For spare parts, send the Promotech part number or a nameplate photo.
Related products
Frequently Asked Questions
How many programs can the Promotech LIZARD store?
Up to 40 complete welding programs in non-volatile memory.
Can the LIZARD make stitch welds?
Yes. Weld length, skip, crater fill and backweld are programmable, and it travels at full speed between stitches.
Can the LIZARD weld vertical-up?
Yes, with the optional pendulum oscillator ZSP-0477-10-00-00-0.
What is the LIZARD travel speed?
0–130 cm/min horizontally and 0–120 cm/min vertically.
How heavy is the LIZARD?
14 kg (31 lb); the optional oscillator adds 2.6 kg.
