Brand: Crowcon

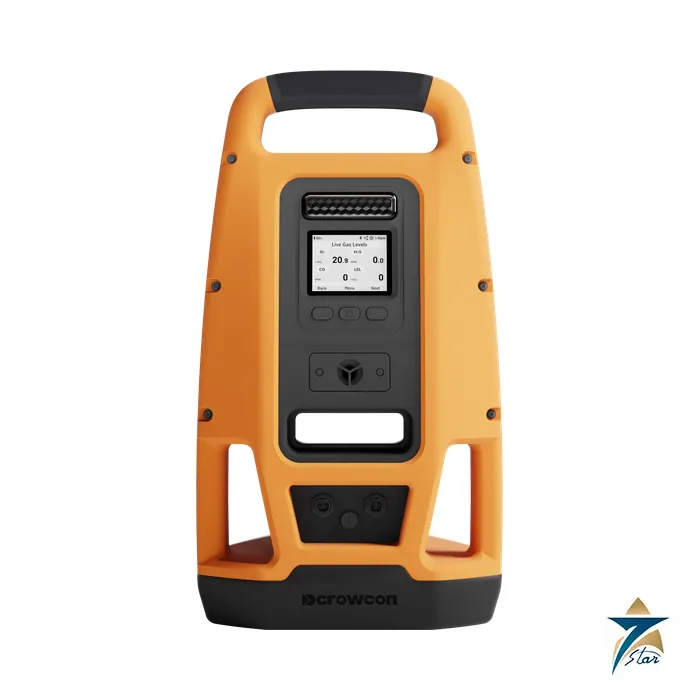

Crowcon DetectiveIQ Configurable Area Gas Monitor
Description
A rugged area monitor for turnarounds and temporary worksites
The Crowcon DetectiveIQ is a configurable multi-gas area monitor for temporary worksites: turnaround and shutdown work, hot-work maintenance, confined-space entry and other places where fixed detectors are impractical. It detects up to seven gases at once, with interchangeable sensor slots for electrochemical, PID, infrared, MPS, pellistor and long-life O2 sensors, and Crowcon quotes up to 15 weeks of runtime on one charge with an 8-hour recharge.
Units can pass alarms to each other over Bluetooth Mesh (up to 250 devices in 10 groups of 25, covering 2.5 km per group at 100 m spacing) and link to the Crowcon Connect cloud application for real-time alarms, compliance dashboards and location tracking. An optional pumped module samples up to 30 m (100 ft). The housing is rated IP66 and IP68 and the monitor floats.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Crowcon, DetectiveIQ configurable area monitor |
| Gases | Up to 7 simultaneously; display shows 1 to 8 active channels |
| Carbon monoxide | 0-500 ppm, 1 ppm |
| CO and H2S dual sensor | 0-500 ppm CO (1 ppm); 0-100 ppm H2S (0.1 ppm) |
| Carbon dioxide | 0-5% volume, 0.1% |
| Hydrogen sulfide | 0-100 ppm, 0.1 ppm |
| Methane / propane | 0-100% LEL, 1% LEL |
| MPS (ATEX or UL, 5-pin) | 0-100% LEL, 1% LEL |
| Oxygen | 0-25% volume, 0.1% |
| VOC (PID) | 0-2000 ppm, 1 ppm |
| Response time (T90) | Below 20 s |
| Alarms | Visual, audible 97 dB at 30 cm, low/high, TWA, STEL |
| Display | Colour LCD, three-button navigation |
| Data logging | Up to 8,640 event logs |
| Battery | 101+ days (up to 15 weeks); 8-hour recharge |
| Sampling | Diffusion; optional pumped module up to 30 m (100 ft) |
| Connectivity | Bluetooth and Mesh to the Crowcon Connect app; radio approvals RED/FCC/IC |
| Size / weight | 298 x 536 x 268 mm; 8.1 kg |
| Material | ASA and Pebax |
| Ingress protection | IP66 and IP68 |
| Operating temperature / humidity | -20 to +55 C (-4 to +131 F); 0-95% RH |
| Approvals | ATEX Ex II 1G Ex ia da IIC T4 G; IECEx Ex ia da IIC T4 Ga; CSA US Class I Div 1 Groups A-D Ex ia da IIC T4 (pending); INMETRO (pending) |
| Calibration | 6 monthly calibrations |
| Accessories | Bump flow plate; pumped flow plate; communication and power cables; water trap and tubing (pumped kit) |
| Manufacturer warranty | 2 years (sensor warranty separate) |
Using DetectiveIQ for fenceline and perimeter work
For perimeter monitoring Crowcon supports fenceline deployment with up to 25 interconnected devices, so a gas alarm at one unit is repeated at the others and workers are warned wherever they are on site. Choose the sensor set to the work: LEL, O2, CO and H2S for entry and hot work, PID where VOCs from solvents or fuels are expected, and infrared or MPS where catalytic poisons are present.
What to confirm before ordering
Give the gas set, whether the pumped module is needed, the number of units for mesh deployment, approval scheme (ATEX, IECEx, CSA and INMETRO items are marked pending or listed individually in the datasheet), and calibration gas supply. Note the datasheet lists a 2-year warranty on the unit with sensor warranty separate.
Documents and quotation
The attached Crowcon datasheet lists the detectable gases, ranges and specifications. Send the sensor set, quantities and certification need for a quotation. See more fire and gas detectors.
Datasheets & Documents
- Datasheet Crowcon DetectiveIQ datasheet (EN) Download
Reviews (0)
About brand
Crowcon has made gas detection instruments since 1970 and is based in Abingdon, United Kingdom. The company builds portable detectors worn or carried by workers and fixed detectors and control panels for plant areas, covering flammable gases, toxic gases and oxygen. Seven Star LLC sources and supplies Crowcon portable gas detectors, sensors and accessories for sites in Oman, including the Gas-Pro and Gasman listed on this page.
Crowcon portable detectors listed here
The Gasman is a single-gas personal detector, worn by one person to warn of one hazard such as hydrogen sulfide, carbon monoxide, flammable gas or low oxygen. The Gas-Pro is a multi-gas detector for confined space entry that monitors up to five gases and can be ordered with an internal pump for pre-entry sampling. In both cases the sensor fit is chosen at the time of order.
Ordering Crowcon detectors: what we need
Send the gases and ranges you need, the alarm levels if they differ from the manufacturer's defaults, and for a Gas-Pro if the pumped version is wanted. For spare sensors, send the detector model, serial number and the gas. Add chargers, sampling kits or test accessories to the same inquiry. Contractors in the GCC should state the approval marking their site permit system asks for.
Browse Crowcon products by category: Fire & Gas Detector.
Related products
Frequently Asked Questions
How many gases can the DetectiveIQ monitor?
Up to seven gases at the same time, using interchangeable electrochemical, PID, infrared, MPS, pellistor and long-life O2 sensors.
How long does the battery last?
Crowcon quotes up to 15 weeks (101+ days) on a single charge, with an 8-hour recharge.
How do units share alarms?
Built-in Bluetooth Mesh alarm passing connects up to 250 devices in 10 groups; each group of 25 covers 2.5 km at 100 m spacing.
Can it sample at a distance?
Yes, an optional pumped module samples up to 30 m (100 ft).
What protection and approvals does it have?
IP66 and IP68, ATEX Ex ia da IIC T4 and IECEx Ex ia da IIC T4 Ga; CSA US and INMETRO approvals are marked pending in the datasheet.
