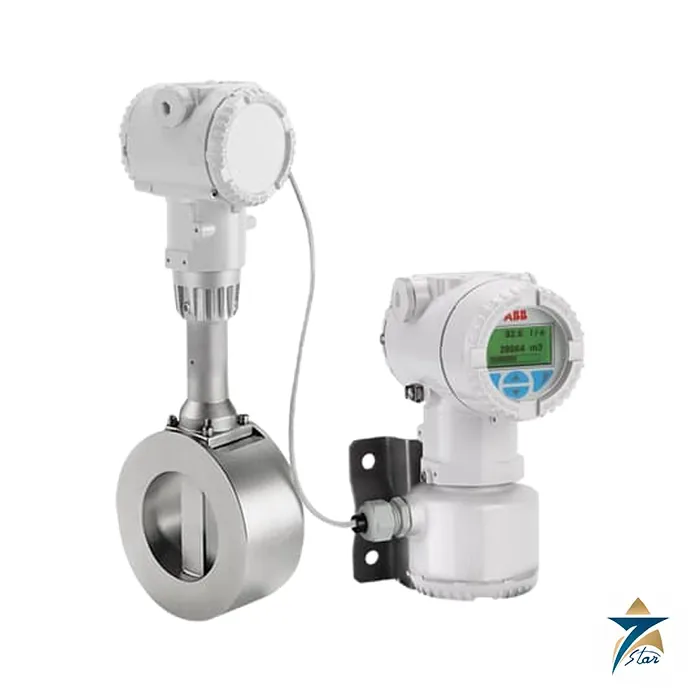

ABB Vortex flowmeter VortexMaster FSV450
Overview
The ABB VortexMaster FSV450 is a vortex-shedding flowmeter for gases, liquids, and steam – a measurement technology fundamentally different from every differential pressure device in ABB’s compact flowmeter family, since it has no orifice, no impulse lines, and no primary-element pressure drop to manage. As the advanced member of the FSV430/FSV450 vortex platform, the FSV450 adds analog inputs for direct mass and energy flow calculation, a capability the base FSV430 does not offer.
Seven Star LLC supplies the VortexMaster FSV450 as a trusted supplier of ABB products across Oman and the GCC, specifying it for customers who need mass or energy flow output without deploying a separate flow computer alongside the meter.
Operating Principle
A bluff body positioned across the pipe bore sheds alternating vortices downstream at a frequency directly proportional to fluid velocity – the same physical phenomenon behind the Karman vortex street seen behind a bridge pier in a river. A sensor in the meter body detects this shedding frequency and converts it to a volumetric flow rate with no moving parts in the flow path to wear or foul.
On the FSV450, additional analog inputs accept pressure, temperature, and density signals directly, allowing the meter itself to compute mass or energy flow internally rather than exporting a raw volumetric signal to an external flow computer for compensation. The meter delivers a wide 1:20 turndown ratio, though reliable low-end measurement depends on the pipeline Reynolds number staying above a minimum threshold that scales with line size – roughly 20,000 for a DN15 meter and up to 128,000 for a DN200 unit – a factor ABB’s sizing software accounts for when selecting the correct meter bore for a given process flow rate.
Engineering Design of the VortexMaster FSV450
The meter body is constructed in robust stainless steel to withstand high pressures and temperatures in demanding process conditions, and is offered in flange-mount sizes from DN15 to DN300 (½ to 12 inches) or wafer-type from DN25 to DN150 (1 to 6 inches), covering a wide range of pipeline sizes from a single measurement platform.
ABB’s SmartSensor design stores calibration data and process configuration internally, so the sensor module can be replaced or upgraded without a full recalibration in the field. Accuracy is rated at ±0.65% of rate for liquids and ±0.9% of rate for gases and steam, with communication over 4–20mA/HART 7, Modbus RTU, and Modbus TCP or Profinet via Ethernet-APL, plus an optional Smart HMI with Bluetooth configuration through ABB’s My Device Manager app. Process temperature is rated from -55°C to 280°C in standard design, extending to 400°C in the optional high-temperature configuration, while the transmitter electronics operate across an ambient range of -20°C to 85°C standard, or -40°C to 85°C in the extended-range option – comfortably covering both Oman’s high ambient temperatures and cold or cryogenic-adjacent process duty. Pressure ratings span PN 10 to PN 40 (DIN) or ASME Class 150/300 on flanged versions, with PN 64 or equivalent ASME ratings available on wafer-type meters, and higher ratings available on request for specialized high-pressure applications.
Key Features
- Vortex-shedding measurement with no moving parts in the flow path
- Accuracy of ±0.65% of rate (liquids) and ±0.9% of rate (gases/steam)
- Additional analog inputs for direct mass or energy flow calculation, unlike the base FSV430
- SmartSensor calibration data storage for recalibration-free sensor replacement
- Flange-mount DN15–300 or wafer-type DN25–150 size range
- 4–20mA/HART 7, Modbus RTU, and Modbus TCP/Profinet via Ethernet-APL connectivity
- ATEX, IECEx, cFMus, and NEPSI hazardous area certifications, SIL2 per IEC 61508
- Optional Smart HMI with Bluetooth configuration via My Device Manager app
Industrial Applications
The VortexMaster FSV450 is used for steam, gas, and liquid flow measurement in chemical processing, power generation, and HVAC utility systems across Muscat, Sohar, Salalah, and the wider GCC, particularly where mass or energy flow reporting is required directly from the meter without an external flow computer.
Seven Star LLC, as a trusted ABB supplier, positions the FSV450 as the technology choice over an orifice-based device when the pipeline cannot tolerate the ongoing maintenance of impulse lines, or when the application specifically calls for compensated mass/energy output. The wide process temperature range, from cryogenic-adjacent service up to 400°C in the high-temperature option, also makes the FSV450 a fit for superheated steam metering at power generation and district cooling energy plants across the region, applications where the primary element must survive process conditions a standard differential-pressure meter’s impulse lines would struggle with.
Technical Specifications
| Model | ABB VortexMaster FSV450 |
|---|---|
| Technology | Vortex shedding, no moving parts |
| Accuracy | ±0.65% of rate (liquids), ±0.9% of rate (gas/steam) |
| Size range | DN15–300 flange-mount / DN25–150 wafer |
| Communication | 4–20mA/HART 7, Modbus RTU/TCP, Profinet (Ethernet-APL) |
| Certification | ATEX, IECEx, cFMus, NEPSI, SIL2 (IEC 61508) |
| Process temperature | -55°C to 280°C standard; up to 400°C optional |
| Ambient temperature | -20°C to 85°C standard; -40°C to 85°C extended |
| Pressure rating | PN 10-40 (DIN), ASME Class 150/300; PN 64 wafer-type |
| Turndown ratio | 1:20 |
| Media | Gases, liquids, steam |
Request a Quote for ABB Vortex flowmeter VortexMaster FSV450
Contact Seven Star LLC to specify an ABB VortexMaster FSV450 for gas, liquid, or steam flow measurement with direct mass/energy output in Oman and the GCC.
