ABB Swirl flowmeter SwirlMaster FSS450
Overview

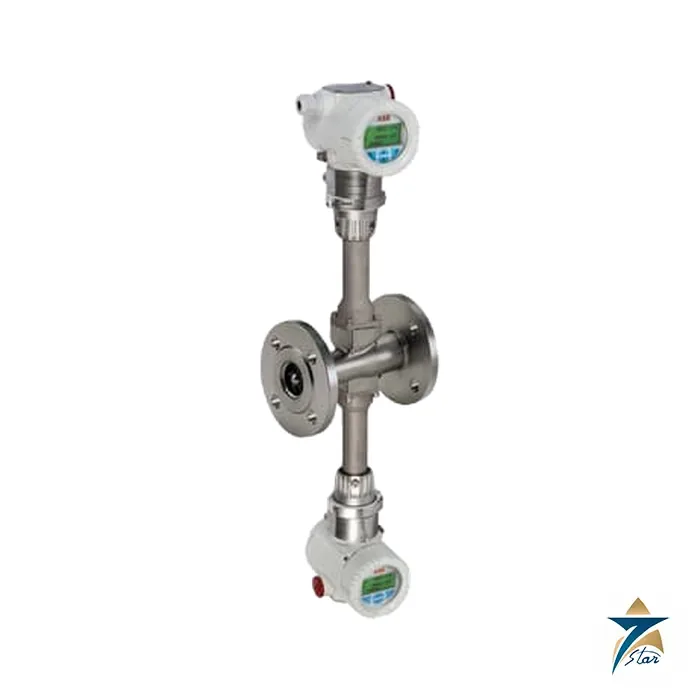

The ABB SwirlMaster FSS450 is the advanced model in ABB’s swirl flowmeter platform, built on the same fixed-vane, no-moving-parts swirl technology as the FSS430 but adding integrated energy calculation for steam and thermal applications. Where the FSS430 outputs volumetric flow only, the FSS450 computes mass and energy flow internally from onboard pressure and temperature compensation.
Seven Star LLC supplies the SwirlMaster FSS450 across Oman and the GCC, specifying it for steam and thermal energy metering applications where a separate flow computer would otherwise be required to derive energy flow from a volumetric signal.
Operating Principle
As with the FSS430, fluid passing through the FSS450’s fixed guide vanes develops a swirling rotation whose precession frequency downstream is directly proportional to velocity, detected using leading-edge DSP processing with strong vibration compensation and no moving parts to wear or foul.
The FSS450 additionally accepts pressure and temperature inputs, applying steam table or gas compensation internally so the meter itself reports compensated mass flow and thermal energy flow rather than exporting a raw volumetric pulse for external computation – consolidating what would otherwise be a meter-plus-flow-computer arrangement into one device.
Engineering Design of the SwirlMaster FSS450
The FSS450 shares the FSS430’s flange size range of DN15 to DN400 (½ to 16 inches) and its space-saving internal geometry that can cut required straight pipe run by up to 75% compared with conventional flow technologies, so the energy-calculation capability is added without sacrificing the installation-space advantage of the swirl platform.
Accuracy is rated at ±0.5% of rate, and the meter communicates over 4–20mA/HART 7, Modbus RTU-RS485, and Modbus TCP or Profinet via Ethernet-APL, matching the connectivity options of the base FSS430 and the rest of ABB’s DSP-based flow measurement family. Process temperature is rated from -55°C to 280°C, with ambient transmitter operation from -20°C to 85°C standard or -40°C to 85°C extended, and pressure ratings spanning PN 10 through PN 160 on DIN flanges or ASME Class 150 through 900, covering everything from low-pressure utility steam to high-pressure process piping. A typical measuring span of 1:25 gives the meter a wide usable flow range from a single line-size selection.
Key Features
- Swirl-shedding measurement with no moving parts in the flow path
- Integrated mass and energy flow calculation, unlike the volumetric-only base FSS430
- Onboard pressure and temperature compensation, eliminating a separate flow computer
- Accuracy of ±0.5% of rate
- Saves up to 75% of the straight pipe run needed by conventional flowmeters
- Flange sizes from DN15 to DN400 (½ to 16 inches)
- 4–20mA/HART 7, Modbus RTU, and Modbus TCP/Profinet via Ethernet-APL connectivity
- Purpose-built for steam and thermal energy metering
- Process temperature rating of -55°C to 280°C, covering cryogenic-adjacent to high-temperature process duty.
- Pressure ratings from PN 10 to PN 160 (DIN) or ASME Class 150 to 900.
- Typical measuring span (turndown ratio) of 1:25.
Industrial Applications
The SwirlMaster FSS450 is used for steam flow and thermal energy metering in refineries, power plants, and process utilities across Muscat, Sohar, Salalah, and the wider GCC, where the plant needs a compensated energy value directly from the meter rather than raw volumetric data requiring external calculation.
Seven Star LLC recommends the FSS450 specifically when energy or mass flow reporting is the requirement, and the simpler FSS430 (see related product) when volumetric flow alone is sufficient. The meter’s wide pressure rating range, from PN 10 utility duty up to PN 160 or ASME Class 900 high-pressure service, also makes the FSS450 suitable for high-pressure steam distribution and district energy metering across Sohar, Salalah, and Muscat’s growing district cooling infrastructure, where compensated energy output and installation-space savings are both genuine requirements.
Technical Specifications
| Model | ABB SwirlMaster FSS450 |
|---|---|
| Technology | Swirl shedding, fixed guide vanes, no moving parts |
| Accuracy | ±0.5% of rate |
| Size range | DN15–400 (½–16 in.), flange |
| Communication | 4–20mA/HART 7, Modbus RTU/TCP, Profinet (Ethernet-APL) |
| Media | Liquids, gases, steam |
| Process temperature | -55°C to 280°C |
| Ambient temperature | -20°C to 85°C standard; -40°C to 85°C extended |
| Pressure rating | PN 10-160 (DIN); ASME Class 150-900 |
| Turndown ratio | 1:25 typical |
| Function | Integrated mass and energy flow calculation |
Selection Checklist
A swirl meter is sized on flow velocity rather than line size, so the meter may be smaller than the pipe. To specify the ABB SwirlMaster FSS450 correctly, the following process data is needed:
- Medium (saturated steam, superheated steam, gas or liquid) and its composition
- Minimum, normal and maximum flow rates
- Operating and design pressure and temperature
- Required output: volume, mass or energy, and the units the plant reports in
- Pipe size, flange standard and pressure rating
- Communication needed by the control system: HART, Modbus or Profinet via Ethernet-APL
Checking the normal flow against the 1:25 span helps avoid choosing a meter that runs near the bottom of its range for most of the year.
Installation and Commissioning
Although the swirl principle needs much less straight pipe than vortex or orifice meters, good practice still matters. Install the meter where the pipe is full for liquids, drain condensate upstream on steam lines, and avoid mounting the transmitter directly above hot insulation. Pressure and temperature sensing must be installed as the configuration requires, so that the compensated mass and energy values are based on real process conditions. At commissioning, check the configured medium, reference conditions and output scaling, and compare the reading with a plant balance or a reference meter where one is available.
Maintenance and Troubleshooting
With no moving parts, routine maintenance is limited to inspection. Where readings drift, the usual causes are:
- Wet steam or condensate slugs on a poorly drained line
- Deposits on the guide vanes in dirty service
- Incorrect medium or reference condition settings after a configuration change
- Strong pipe vibration outside the range the filter can compensate
The built-in diagnostics and HART or Modbus access let technicians check the status without removing the meter.
Energy Metering in Oman and the GCC
Energy accounting of steam between process units, cogeneration plants and district cooling schemes is becoming a standard requirement in the region, and a meter that reports energy directly simplifies the audit trail.
Sourcing from Seven Star LLC
Seven Star LLC reviews the process data sheet with you before ordering to confirm size, rating and options.
Request a Quote for ABB Swirl flowmeter SwirlMaster FSS450
Contact Seven Star LLC to specify an ABB SwirlMaster FSS450 for steam or thermal energy metering in Oman and the GCC.
