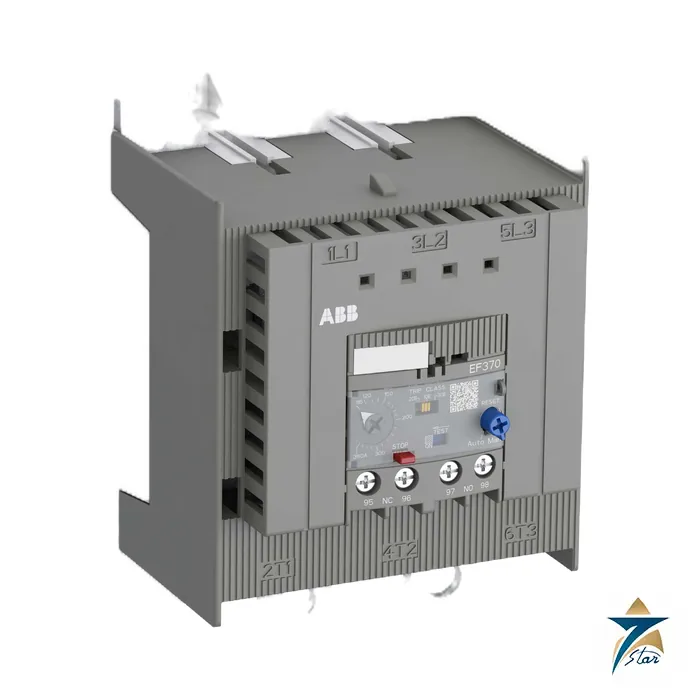

ABB EF370-380 Electronic Overload Relay 115-380 A

Name: ABB EF370-380 Overload Relay 115-380 A | Seven Star LLC
Brand: ABB
SKU: EF370-380

Description

EF370-380: top-of-range electronic overload relay

EF370-380 is the highest-rated ABB EF relay in the data sheet, with a setting range of 115 to 380 A. The ABB e-catalogue pairs it with AF265 to AF370 contactors, including the AF265-30-11-13 and AF370-30-11-13 on this site.

It is self-supplied, rated 1000 V AC and provides one N.C. trip and one N.O. signal contact with automatic or manual reset selectable.

Technical specifications

Parameter	Specification
Type designation / order code	EF370-380 / 1SAX611001R1101 (EAN 4013614442216)
Device type	Self-supplied three-pole electronic overload relay, no external supply needed
Current setting range	115…380 A
Trip class	10E, 20E or 30E, selectable
Protection features	Overload and phase-loss sensitivity; temperature compensation; trip-free mechanism; STOP and TEST function; status indication
Reset	Automatic or manual, selectable
Contacts	1 N.C. (95-96, trip) + 1 N.O. (97-98, signal)
Rated operational voltage / insulation	1000 V AC; Ui 1000 V; Uimp 8 kV
Short-circuit protective device	1600 A gG fuse (UL: 800 A class L or T, SCCR 18 kA)
Connection (main)	Bar connection, torque 28 Nm
Suitable contactors	AF265 … AF370 per ABB e-catalogue
Dimensions / weight	105 mm wide x 187.6 mm high x 122.8 mm deep; 1.338 kg
Auxiliary circuit	600 V AC/DC; 6 A gG fuse for the contacts
Ambient temperature	Operation -25…+70 C (temperature compensated); storage -50…+85 C
Standards	IEC/EN 60947-1, 60947-4-1, 60947-5-1; UL 60947 series

Protecting 90-200 kW motors

A 115 to 380 A scale covers motors from roughly 55 kW to 200 kW at 400 V. IEC short-circuit protection is a 1600 A gG fuse, and the UL table gives an 800 A class L or T fuse with 18 kA SCCR. Tightening torque for the bar connection is 28 Nm.

The relay is 105 mm wide, 187.6 mm tall and 122.8 mm deep, weighing 1.338 kg. ABB states a high accuracy and a wide operating temperature range, with temperature compensation from -25 to +70 C.

Practical selection notes

Select the trip class from the starting time: 10E for normal, 20E or 30E for heavy starts such as large fans or crushers. Trip class is selected on the front, so it can be changed during commissioning.

If the motor current is below 115 A the EF205-210 gives better resolution; above 380 A this relay is outside its range and a different protection arrangement is required.

Remember the general rule printed in ABB’s EF data sheets: the relay must itself be protected against short-circuit, so the 1600 A gG fuse (or the UL fuse in your region) belongs in the feeder design. The data sheet also lists the 1000 V rated operational voltage and conformity to the RoHS Directive 2011/65/EU, which can be quoted in tender submittals.

Documents and quotation

The linked file is ABB EF205 and EF370 electronic overload relays data sheet 2CDC107040C0201. Seven Star LLC supplies the EF370-380 on request from Muscat, with availability and lead time confirmed in the quotation. Related motor-starter parts are in the Contactors and Overload Relays category, including the ABB TA25DU1.4 thermal overload relay.

Confirm before ordering: motor full-load current and the trip class your process needs, the contactor frame it will mount on, and the short-circuit device in your feeder.

Datasheets & Documents

Datasheet ABB EF205 and EF370 electronic overload relays data sheet 2CDC107040C0201 Download
