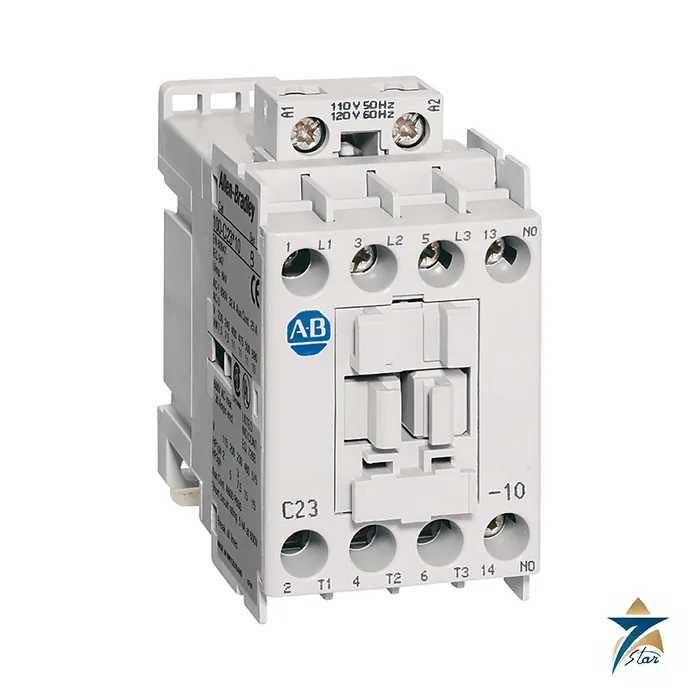

Allen-Bradley 100-C23D10 23 A IEC Contactor
Description
100-C contactor rated 23 A in AC-3
Specified for 23 A motor starting duty, the 100-C23D10 comes from the 100-C contactor series of Allen-Bradley. It is fitted with a 110V 50 Hz / 120V 60 Hz AC coil. Reading the catalog number: 100-C is the IEC contactor series, 23 is the 23 A frame, D selects the 110V 50 Hz / 120V 60 Hz AC coil, and the last two digits give 1 N.O. auxiliary contact (the final “10”).
The datasheet gives 7.5 / 11 / 13 / 10 kW (230 / 400-415 / 500 / 690V, AC-3) and 32 A in AC-1 for this frame.
In horsepower terms Rockwell rates this frame at 2 (115V 1-ph), 3 (230V 1-ph), 5 (200V 3-ph), 7-1/2 (230V 3-ph), 15 (460V), 15 (575V).
Technical specifications
| Parameter | Specification |
|---|---|
| Catalog no. | 100-C23D10 |
| Type | Allen-Bradley 100-C IEC contactor, 3 poles |
| Current, AC-3 | 23 A |
| Current, AC-1 | 32 A |
| Power in kW at 230 / 400-415 / 500 / 690V | 7.5 / 11 / 13 / 10 |
| Coil | D: 110V 50 Hz / 120V 60 Hz AC coil |
| Auxiliary contact | 1 N.O. auxiliary contact |
| Coil voltage range of series | 20 to 500V, 50/60 Hz and DC |
| North American hp | 2 (115V 1-ph), 3 (230V 1-ph), 5 (200V 3-ph), 7-1/2 (230V 3-ph), 15 (460V), 15 (575V) |
| Documents | 100C-IN005 and 100-TD013Q |
A 110/120V coil and the horsepower table
The D coil is rated 110V at 50 Hz and 120V at 60 Hz, a common control-transformer secondary in panels built to North American practice. If a project imports skids from that market, a D coil matches the control voltage already in the design.
For motor starting, the datasheet lists 7.5 kW at 230V, 11 kW at 400/415V, 13 kW at 500V and 10 kW at 690V, and horsepower values from 2 hp on 115V single-phase to 15 hp at 460V and 575V.
The 23 A frame in the C09 to C23 group
At 23 A this is the largest frame sharing the compact mounting footprint with the 9 A and 16 A sizes. Its AC-1 rating is 32 A, the same as the smaller two, so the extra capacity appears in AC-3 motor duty rather than in resistive loads.
Treat the AC-1 value as the limit for heaters and lighting. For motor circuits, use the AC-3 value and confirm the protection coordination tables. The installation instruction 100C-IN005 is hosted here.
Ordering and documents
Order 100-C23D10 in full. Check the coil voltage, the auxiliary contact needed and whether line-side or load-side coil terminals are required; surge suppressors, auxiliary blocks and overloads are separate catalog numbers. The hosted document is 100C-IN005 (100-C09 to C23 installation instructions); rating data come from technical data 100-TD013Q.
Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.
To quote 100-C23D10, send the motor nameplate, the supply voltage, the control voltage, the starting method and the protective devices already in the panel. The device is only one part of a starter, and a short list of the other components lets us check the combination before ordering (23 A three-pole IEC contactor, 110V 50 Hz / 120V 60 Hz AC coil).
Browse more items in Contactors & Overload Relays on our site, or send us the part number for a quotation.
