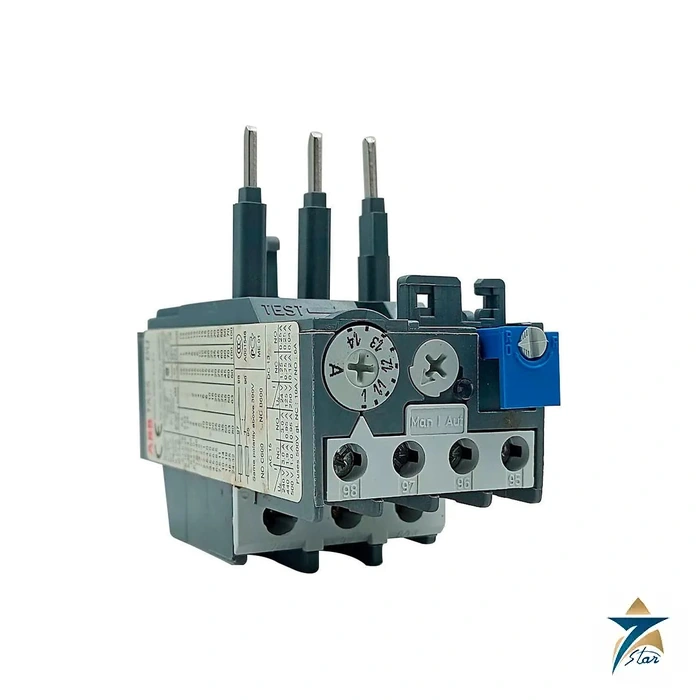

ABB TA25DU1.4 Thermal Overload Relay

Name: ABB TA25DU1.4 Thermal Overload Relay | Seven Star LLC
Brand: ABB
SKU: TA25DU1.4

Description

Motor overload protection with an adjustable current setting

The ABB TA25DU1.4 is a thermal overload relay with a published adjustment range of 1.0–1.4 A. ABB identifies this execution by order code 1SAZ211201R1023. The current range and full order code distinguish it from other TA25DU relays that share a similar housing.

Select the relay setting from the motor nameplate and the applicable installation instructions. A motor-power figure alone does not establish the correct overload range: supply voltage, motor current and starter arrangement also matter.

Technical specifications

Parameter	Specification
Manufacturer	ABB
Model	TA25DU1.4
Order code	1SAZ211201R1023
Product type	Thermal overload relay
Current adjustment range	1.0–1.4 A

Match the installed starter

For a replacement, record the contactor reference, relay mounting arrangement, existing setting and auxiliary-circuit wiring. Check the complete starter assembly rather than substituting a different overload family because its adjustment range appears similar.

An overload relay forms part of the motor-protection arrangement. Specify the associated contactor and short-circuit protective equipment separately according to the installation design.

Manufacturer documents and enquiries

The ABB motor-control catalogue includes the TA25DU1.4 ordering entry and its adjustment range. Send Seven Star LLC the model, order code, quantity, motor nameplate current and contactor reference with the enquiry.

Browse Contactors & Overload Relays for related starter components.

Datasheets & Documents

Catalog ABB Motor Control Catalogue — May 2010 Download
