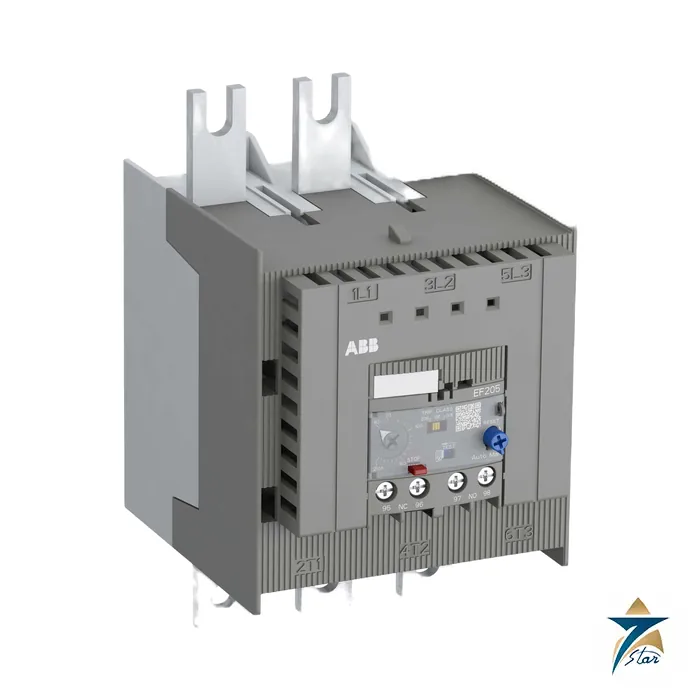

ABB EF205-210 Electronic Overload Relay 63-210 A

Name: ABB EF205-210 Overload Relay 63-210 A | Seven Star LLC
Brand: ABB
SKU: EF205-210

Description

EF205-210: overload relay for the AF205 contactor frame

EF205-210 offers a wide 63 to 210 A setting range, so one relay covers motors from about 30 kW to 110 kW at 400 V. ABB specifies it for the AF190 and AF205 contactors, including the AF205-30-11-13 on this site, whose AC-3 current is 205 A.

The ABB data sheet for the EF205 and EF370 stresses the wide range, high accuracy and high operating temperature of these relays, along with selectable trip classes 10E, 20E, 30E, automatic or manual reset and a STOP and TEST function.

When replacing an older thermal relay, compare the load current and the contactor type before ordering. Send the order code 1SAX531001R1101 together with the contactor designation and the motor full-load current, so that the quotation covers the right relay.

Technical specifications

Parameter	Specification
Type designation / order code	EF205-210 / 1SAX531001R1101 (EAN 4013614442223)
Device type	Self-supplied three-pole electronic overload relay, no external supply needed
Current setting range	63…210 A
Trip class	10E, 20E or 30E, selectable
Protection features	Overload and phase-loss sensitivity; temperature compensation; trip-free mechanism; STOP and TEST function; status indication
Reset	Automatic or manual, selectable
Contacts	1 N.C. (95-96, trip) + 1 N.O. (97-98, signal)
Rated operational voltage / insulation	1000 V AC; Ui 1000 V; Uimp 8 kV
Short-circuit protective device	1250 A gG fuse (UL: 400 A R5/RK5 or class J, SCCR 10 kA/100 kA)
Connection (main)	Bar connection, torque 18 Nm
Suitable contactors	AF190 … AF205 per ABB e-catalogue
Dimensions / weight	105 mm wide x 171 mm high x 122.8 mm deep; 1.256 kg
Auxiliary circuit	600 V AC/DC; 6 A gG fuse for the contacts
Ambient temperature	Operation -25…+70 C (temperature compensated); storage -50…+85 C
Standards	IEC/EN 60947-1, 60947-4-1, 60947-5-1; UL 60947 series

High-current wiring and protection

At this size the relay is connected directly to the contactor by bars, with an 18 Nm tightening torque, and its housing is 105 mm wide and 171 mm high. The short-circuit protective device listed for the IEC rating is a 1250 A gG fuse, far larger than for the small EF types, and the UL data lists a 400 A fuse with 10 kA or 100 kA SCCR depending on fuse type.

The auxiliary contacts are rated 600 V AC/DC and need a 6 A gG fuse. Operation is up to 15 operations per hour without early tripping; heavy starting duty may need trip class 30E.

Choosing between EF205 and EF370

EF205-210 covers 63 to 210 A, EF370-380 covers 115 to 380 A; both share a 105 x 122.8 mm footprint and differ in height (171 mm versus 187.6 mm). Pick EF205-210 when the motor current is between 63 and 210 A and the contactor is AF190 or AF205.

Keep the setting inside the range rather than at its end for better accuracy.

Documents and quotation

The linked file is ABB EF205 and EF370 electronic overload relays data sheet 2CDC107040C0201. Seven Star LLC supplies the EF205-210 on request from Muscat, with availability and lead time confirmed in the quotation. Related motor-starter parts are in the Contactors and Overload Relays category, including the ABB TA25DU1.4 thermal overload relay.

Confirm before ordering: motor full-load current and the trip class your process needs, the contactor frame it will mount on, and the short-circuit device in your feeder.
