Brand: Carlo Gavazzi

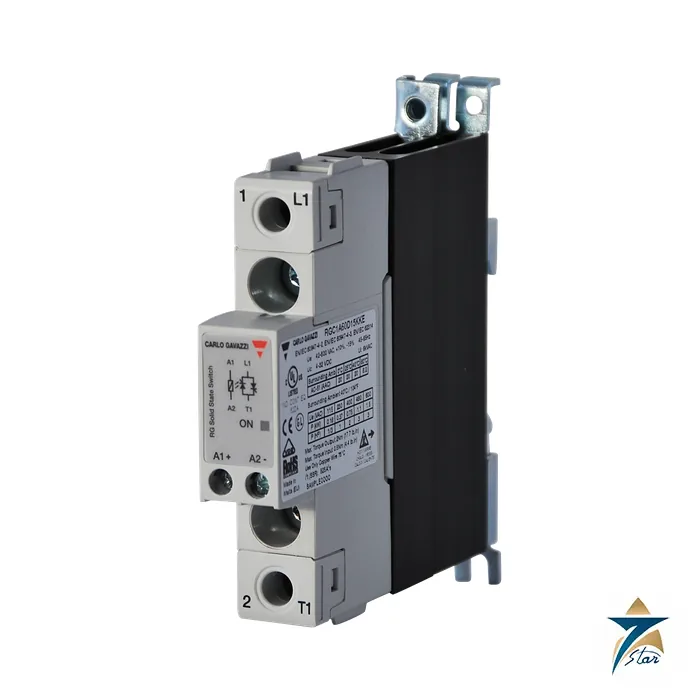

Carlo Gavazzi RGC1A60D25KKE 25 A Solid State Contactor
Description
A 17.5 mm solid state contactor with built-in heatsink
The Carlo Gavazzi RGC1A60D25KKE is a single-pole, zero-cross solid state contactor for resistive and slightly inductive AC loads. It belongs to the RGC family of slim solid state contactors with an integrated heatsink, so no heatsink calculation is needed. This version switches up to 25 AAC at 40 C in a body only 17.5 mm wide with a low-depth heatsink, is controlled by 4 to 32 V DC, and has screw terminals for both power and control. The code reads RGC (solid state relay with heatsink), 1 (one pole), A (zero cross), 60 (voltage class with 1200 V peak blocking), D (DC control), 25 (25 A), KK (screw control and power terminals) and E (contactor configuration).
The output is protected against overvoltage by an integrated varistor and a green LED shows the control input. The datasheet lists conformance to railway standards, a 100 kArms short-circuit current rating according to UL 508 and a design that supports UL 508A control panel requirements.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / series | Carlo Gavazzi, RGC solid state contactors, E-type connection |
| Part number | RGC1A60D25KKE |
| Switching | 1 pole, zero cross (ZC) |
| Rated current at 40 C (AC-51) | 25 AAC; 30 AAC at 25 C |
| Rated current AC-53a at 40 C | 5 AAC |
| Operational voltage class | Blocking voltage 1200 Vp; internal varistor 625 V; output table lists 42 to 600 VAC (order code key quotes 660 VAC) |
| Operational frequency | 45 to 65 Hz |
| Minimum operational current | 250 mAAC |
| Leakage current at rated voltage | Below 3 mAAC |
| Repetitive overload current (UL 508, 40 C) | 51 AAC (1 s on, 9 s off, 50 cycles) |
| Non-repetitive surge current ITSM (10 ms) | 600 Ap |
| I2t for fusing (10 ms), min. | 1800 A2s |
| Motor starts per hour (x=6, 6 s, 50%, 40 C) | 30 |
| Critical dV/dt | 1000 V/us |
| Power factor | Above 0.5 at rated voltage |
| Control voltage | 4 to 32 V DC |
| Pick-up / drop-out voltage | 3.8 V DC / 1.0 V DC |
| Maximum reverse voltage | 32 V DC |
| Response time on / off (24 V DC) | 0.5 cycle + 500 us / 0.5 cycle + 500 us |
| Isolation | Input to output and to case 4000 Vrms |
| Overvoltage category | III, 6 kV impulse withstand |
| Motor rating at 230 V / 400 V / 600 V | 1 HP 0.37 kW / 2 HP 0.75 kW / 3 HP 1.5 kW |
| Housing material | PA66 or PA6, UL 94 V0, RAL 7035 |
| Touch protection | IP20 |
| Operating / storage temperature | -40 to +80 C / -40 to +100 C |
| Relative humidity | 95% non-condensing at 40 C; pollution degree 2 |
| Installation altitude | 0 to 1000 m; derate 1% of FLC per 100 m up to 2000 m |
| Vibration resistance | 2 g per axis (2 to 100 Hz) |
| Width / height / weight | 17.5 mm / 110 mm / about 260 g |
| Approvals and standards listed | EN/IEC 60947-4-2 and 60947-4-3, UL 508 (E172877), cUL C22.2 No. 14, VDE 0660-109; RoHS compliant |
| Mounting | DIN rail (panel mounting also possible) |
Using the current rating correctly
The 25 AAC figure applies at a surrounding temperature of 40 C; at 25 C the datasheet allows 30 AAC, and the current derating curves in the datasheet show how the allowed current falls as the ambient temperature rises. In a panel with several devices side by side, derate for the actual enclosure temperature and spacing. A zero-cross device switches on near the zero of the AC wave, which keeps electrical noise low for heaters and lamps, while motor use is limited to the AC-53a rating of 5 AAC. Protect the output with fast fuses or a type B miniature circuit breaker chosen with the 1800 A2s I2t value.
Installation and ordering notes
Heat from the integrated heatsink leaves by natural convection, so keep free space above and below. Connect PE to the heatsink earth point where your installation rules require it; the datasheet notes that the PE screw is not supplied. Other variants in the family use 3 to 32 V DC or 20 to 275 VAC control, pluggable spring-loaded control terminals (M), box clamp power terminals (G) or higher currents up to 85 AAC, so confirm the exact suffix before ordering.
Documents and quotation
The attached Carlo Gavazzi datasheet covers the full RGC family with the order code, selection guide, derating curves, short-circuit data and dimensions. For a quotation on RGC1A60D25KKE, send the quantity, the load type and current, the load voltage, the control signal and the enclosure temperature. Related items are listed under Contactors & Overload Relays.
Datasheets & Documents
- Datasheet Carlo Gavazzi RGC datasheet (EN) Download
Reviews (0)
About brand
Carlo Gavazzi is an international group that designs, manufactures and markets electronic control components for building and industrial automation. The company was founded in Milan in 1931, and the publicly quoted holding company is headquartered in Steinhausen, Switzerland. Seven Star LLC, an independent supplier in Muscat, lists Carlo Gavazzi sensors, solid state contactors, energy meters and monitoring relays for panels and machines.
Carlo Gavazzi product families
The portfolio published by the group covers sensors, solid state relays, energy meters and analyzers, monitoring relays, soft starters, timers, power supplies and safety devices. Each family has a datasheet with ordering keys, ratings and dimensions, so an exact part number can be checked before ordering.
Ordering Carlo Gavazzi products: what we need
Send the complete part number, the quantity, the supply or load voltage and current, the mounting style and any approvals needed. For energy meters add the system type and communication port, and for solid state relays add the load type and the ambient temperature at the panel.
Related products
Frequently Asked Questions
What does the RGC1A60D25KKE switch?
Single-phase AC loads up to 25 AAC at 40 C, with zero-cross switching and a 1200 Vp blocking voltage.
What control signal does it need?
4 to 32 V DC, with a pick-up level of 3.8 V DC and a drop-out level of 1.0 V DC.
Does it include a heatsink?
Yes. The RGC has an integrated heatsink and mounts on DIN rail, or on a panel.
How wide is it?
17.5 mm wide with a low-depth heatsink, about 110 mm high and 260 g.
What short-circuit rating is listed?
The datasheet lists a 100 kArms short-circuit current rating according to UL 508.
