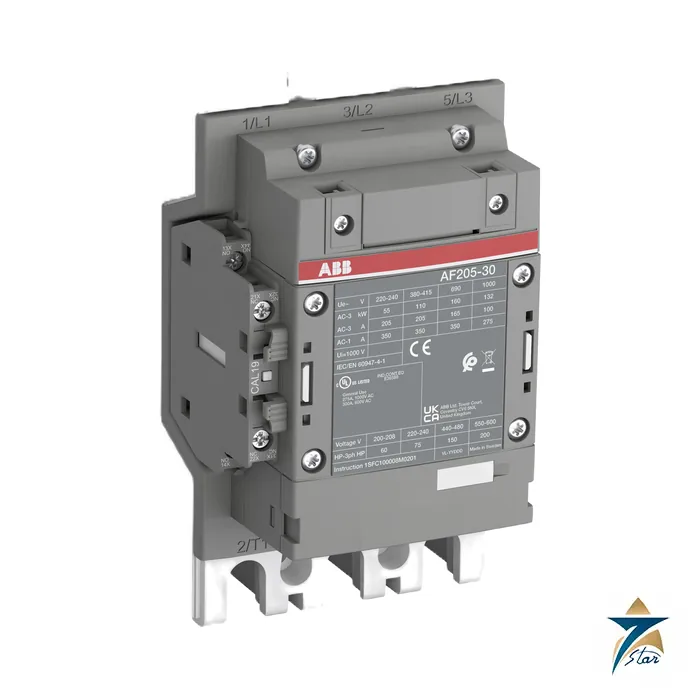

ABB AF205-30-11-13 3-Pole Contactor 110 kW 100-250 V
Description
AF205 contactor for 110 kW motors with bar terminals
AF205-30-11-13 moves up to the 105 mm AF190/AF205 body, with bar main terminals and an operational voltage rating of 1000 V. In AC-3 it carries 205 A up to 440 V, listed by ABB as 110 kW at 400 V, 132 kW at 440 V and 160 kW at 690 V. AC-1 is 350 A at 40 C.
The 100…250 V coil takes AC or DC, and one N.O. plus one N.C. auxiliary contact are built in. Weight is 2.4 kg and the body is 152 mm deep.
Technical specifications
| Parameter | Specification |
|---|---|
| Type designation / order code | AF205-30-11-13 / 1SFL527002R1311 (UPC 7320500480564) |
| Contactor type | 3-pole block contactor with 1 N.O. + 1 N.C. auxiliary contact built in |
| Control coil | 100…250 V 50/60 Hz and DC, wide-range electronic coil |
| Standards / voltages | IEC 60947-4-1; Ue 1000 V; Ui 1000 V (UL/CSA 600 V); Uimp 8 kV |
| AC-1 current at 690 V | 350 A at 40 C; 300 A at 55 C; 240 A at 70 C (1000 V: 275 / 250 / 200 A) |
| Conventional thermal current Ith | 350 A |
| AC-3 current at 55 C | 205 A at 220-440 V; 165 A at 500 and 690 V; 100 A at 1000 V |
| AC-3 power | 55 kW at 230 V; 110 kW at 400/415 V; 132 kW at 440 V; 110 kW at 500 V; 160 kW at 690 V; 132 kW at 1000 V |
| UL/CSA motor ratings | 60 hp at 200/208 V; 75 hp at 230 V; 150 hp at 480 V; 200 hp at 600 V; 300 A general use |
| Short-time withstand Icw | 2050 A for 1 s; 1640 A for 10 s; 947 A for 30 s; 670 A for 1 min; 350 A for 15 min |
| Maximum breaking capacity | 3500 A at 440 V; 2500 A at 690 V |
| Contactor short-circuit protection | gG fuse 400 A |
| Coil consumption | AC pull-in 220 VA, holding 7 VA; DC pull-in 190 W, holding 2.5 W |
| Operating time | Closing 25…55 ms; N.O. opening 37…47 ms |
| Main terminals | Bars; flexible 2 x 50…95 mm2, rigid Al 1 x 95…185 mm2, rigid Cu 1 x 6…150 mm2 |
| Dimensions / weight | 105 mm wide x 196 mm high x 152 mm deep; 2.4 kg |
What the 1000 V rating changes for the AF205
Many contactors stop at 690 V, but the AF190 to AF370 range is rated to 1000 V, which gives extra voltage margin on higher-voltage feeders. At 1000 V the AC-3 current is 100 A and the power 132 kW; at 690 V it is 165 A. AC-1 at 1000 V is 275 A at 40 C.
ABB gives 2050 A for 1 s short-time withstand, a 400 A gG fuse for contactor protection, and breaking capacity of 3500 A at 440 V and 2500 A at 690 V. Coil inrush is 220 VA on AC or 190 W on DC, which matters when sizing a control transformer for several contactors switching together.
Terminals, code and neighbours
AF205 is the frame, 30 means three main poles, 11 means one built-in N.O. and one N.C. contact, and 13 selects the wide-range coil. Cable connection is by bars: flexible conductors 2 x 50 to 95 mm2 or rigid copper 1 x 6 to 150 mm2 per the e-catalogue. Cable lugs are therefore normal practice.
The AF190-30-11-13 shares this 105 mm body with a lower rating, and EF205 electronic overload relays (63 to 210 A, per ABB) are the matching protection.
Documents and quotation
The linked file is an extract (pages 19 and 20) of ABB’s AF range catalogue 1SXU100109C0201, covering the AF116 to AF370 ordering tables; the e-catalogue entry for 1SFL527002R1311 supplied the technical values. Seven Star LLC supplies the AF205-30-11-13 on request from Muscat, and availability and lead time are given in the quotation. See the Contactors and Overload Relays category for other starters.
Confirm before ordering: control voltage and frequency, motor current at your supply voltage, the terminal type for your cable, and whether auxiliary contacts beyond the built-in 1 N.O. + 1 N.C. are needed.
