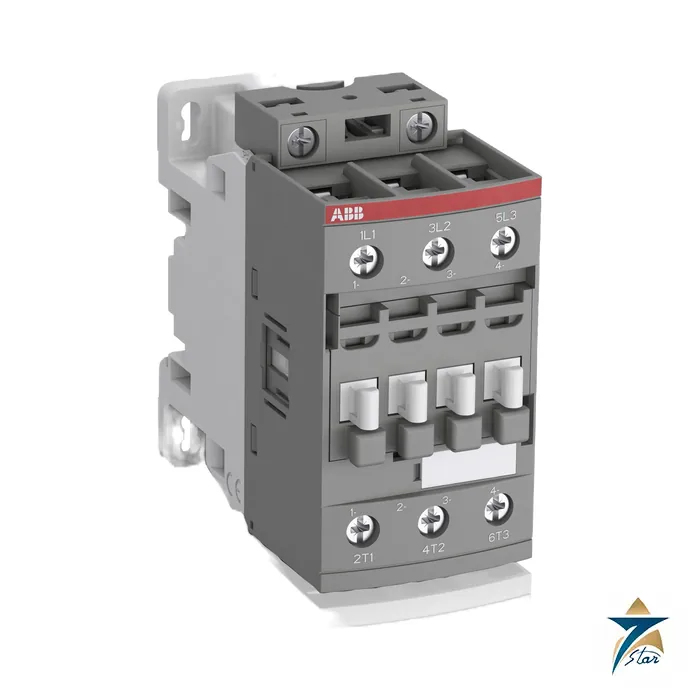

ABB AF26-30-00-13 3-Pole Contactor 11 kW 100-250 V AC/DC
Description
Compact 11 kW AF26 contactor with a wide-range coil
AF26-30-00-13 is the 3-pole AF26 contactor from ABB’s AF range, listed at 11 kW (15 hp) for AC-3 duty at 400 V. It has three normally open main poles and no auxiliary contact fitted, which makes it the plain power-switching version of the AF26 frame: any signalling contacts are added afterwards as clip-on blocks.
The “-13” suffix identifies the coil. One 100…250 V coil works on 50/60 Hz AC and on DC, so a single stock item covers a 230 V European panel and a 120 V or 208 V North American one. The datasheet describes an electronic coil interface that lowers pull-in and holding consumption and a built-in surge suppressor, so no separate suppressor is needed across the coil.
Technical specifications
| Parameter | Specification |
|---|---|
| Type designation / order code | AF26-30-00-13 / 1SBL237001R1300 (EAN 3471523110939) |
| Contactor type | 3-pole block contactor, 3 N.O. main poles, no auxiliary contact fitted |
| Coil (control voltage Uc) | 100…250 V 50/60 Hz and 100…250 V DC, electronic coil interface |
| Standards | IEC 60947-1 / 60947-4-1, EN 60947-1 / 60947-4-1; UL 508, CSA C22.2 No. 14 |
| Rated operational voltage Ue max. | 690 V (IEC); 600 V (UL/CSA) |
| Rated insulation voltage Ui / Uimp | 690 V IEC, 600 V UL/CSA / 6 kV |
| AC-3 current at 380…440 V (60 C) | 26 A; 23 A at 500 V; 17 A at 690 V |
| AC-3 power, 1500 rpm 50 Hz | 6.5 kW at 230 V, 11 kW at 400 V, 15 kW at 440 V, 15 kW at 690 V |
| AC-1 current at 690 V | 45 A at 40 C, 40 A at 60 C, 32 A at 70 C (10 mm2) |
| AC-8a without overload relay (400 V, 40 C) | 30 A, 15 kW |
| Conventional thermal current Ith | 50 A (open, 40 C, 10 mm2) |
| Short-time withstand Icw | 700 A for 1 s, 350 A for 10 s, 150 A for 1 min, 50 A for 15 min |
| Maximum breaking capacity, cos phi 0.45 | 500 A at 440 V; 200 A at 690 V |
| Short-circuit protection (no overload relay) | gG fuse 50 A up to 500 V AC; 150 A NTD fuse at 600 V UL |
| UL/NEMA | NEMA size 1; 10 hp at 460 V and 575 V 3-phase; 45 A general use at 600 V |
| Heat dissipation per pole | 1.8 W at AC-1 current, 0.6 W at AC-3 current |
| Coil consumption (AF, AC) | pull-in 50 VA; holding 2.2 VA / 2 W |
| Operating time | N.O. closing 40…95 ms; N.O. opening 11…95 ms |
| Switching frequency | AC-3 1200 cycles/h, AC-1 600 cycles/h; mechanical 3600 cycles/h |
| Main terminals | Screw terminals, 2.5…10 mm2 rigid, 1.5…10 mm2 flexible; stripping 14 mm; IP20 |
| Ambient temperature | -40…+70 C without overload relay; -25…+60 C with overload relay; storage -60…+80 C |
| Mounting | 35 mm DIN rail or 2 x M4 screws; side-by-side assembly permitted |
| Dimensions / weight | 45 mm wide x 86 mm high x 86 mm deep; net weight 0.31 kg |
Reading the AF26 ratings in practice
At 400 V the AF26 carries 26 A in AC-3, which matches the 11 kW motor column in ABB’s table; at 690 V the figure drops to 17 A and 15 kW. For resistive loads, AC-1 current is 45 A at 40 C but only 32 A at 70 C, so a hot enclosure costs about 30 percent of capacity. When no thermal overload relay is fitted, ABB limits short-circuit protection to a 50 A gG fuse, and that protects the contactor only, not the motor.
Operating limits are worth noting for PLC panels: the coil closes between 0.85 x Uc min and 1.1 x Uc max, and the drop-out voltage is at or below 60 percent of Uc min. The datasheet lists 10 million mechanical operating cycles and a maximum of 3600 operations per hour.
Ordering code and neighbouring variants
Read the type as follows: AF26 is the frame, 30 means three main poles, the next 00 means no built-in auxiliary contacts, and the last two digits select the coil. The same datasheet lists -11 (24…60 V), -12 (48…130 V), -13 (100…250 V) and -14 (250…500 V) coils, plus the low-consumption AF26Z family whose 20…60 V DC coils can be driven straight from a 24 V PLC output.
Side-mounted auxiliary blocks such as CA4 or CAL4 and the TF42 or EF19 overload relays attach to this frame. Check the AC/DC coil range against your control supply and decide whether contacts are needed before you order, because the “-00” version has none.
Documents and quotation
The linked file is ABB technical datasheet 1SBC101410D0201 for the AF26-30-00 series. Seven Star LLC supplies the AF26-30-00-13 on request from Muscat; availability and lead time are stated in the quotation. Related items are in the Contactors and Overload Relays category, for example the AF09-30-10-11 contactor.
Confirm before ordering: control voltage and frequency, number of auxiliary contacts needed, motor current at your supply voltage, and the ambient temperature inside the cabinet.
