Brand: ABB

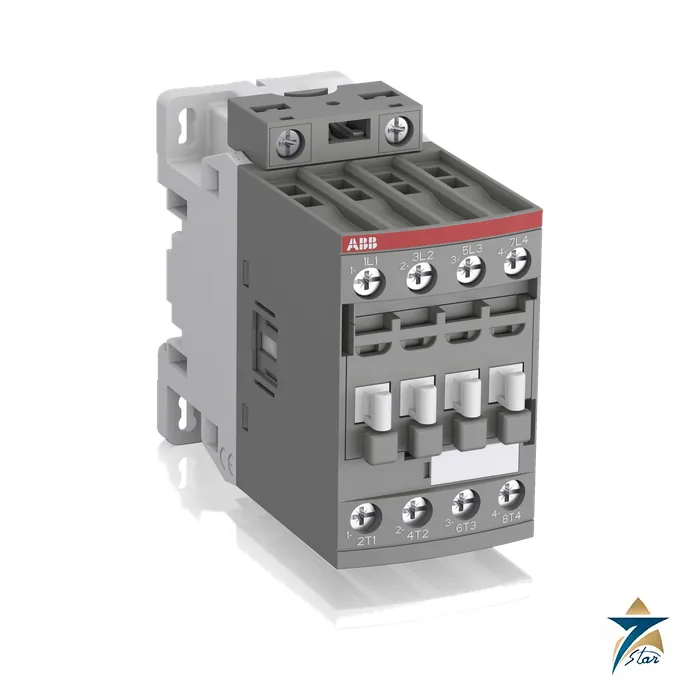

ABB AF38-40-00-13 4-Pole Contactor 55 A 100-250 V AC/DC
Description
Four-pole AF38 contactor for resistive and changeover loads
AF38-40-00-13 is the 4-pole member of the AF38 family: four normally open main poles on the same 45 mm wide body as the 3-pole units. ABB describes the AF 4-pole contactors as intended for non-inductive or slightly inductive loads such as resistance furnaces, so this is the type to look at for heater banks, neutral switching and changeover schemes rather than as a general motor starter.
It carries 55 A thermal current and 55 A in AC-1 at 40 C. The coil is the wide-range 100…250 V type that takes AC or DC, and the datasheet confirms built-in surge protection and an electronic coil interface.
Technical specifications
| Parameter | Specification |
|---|---|
| Type designation / order code | AF38-40-00-13 / 1SBL297201R1300 |
| Contactor type | 4-pole block contactor, 4 N.O. main poles, no auxiliary contact fitted |
| Coil (control voltage Uc) | 100…250 V 50/60 Hz and DC |
| Standards | IEC/EN 60947-1 and 60947-4-1; UL 508; CSA C22.2 No. 14 |
| Rated operational voltage Ue max. | 690 V IEC (up to 440 V DC per ABB); 600 V UL/CSA; Uimp 6 kV |
| AC-1 current at 690 V | 55 A at 40 C; 45 A at 60 C; 37 A at 70 C |
| Conventional thermal current Ith | 55 A (open, 40 C) |
| AC-3 current (60 C), all 4 poles | 23.2 A at 230 V; 22 A at 400 V; 21.2 A at 415 V; 20 A at 440 V; 17.6 A at 500 V; 10.5 A at 690 V |
| AC-3 power | 5.5 kW at 230 V; 11 kW at 400, 415, 440 and 500 V; 9 kW at 690 V |
| Short-time withstand Icw | 450 A for 1 s; 300 A for 10 s; 225 A for 30 s; 150 A for 1 min; 55 A for 15 min |
| Contactor short-circuit protection | gG fuse 63 A up to 500 V AC |
| Heat dissipation per pole | 2.3 W at AC-1 current |
| Operating time | N.O. closing 40…95 ms; N.O. opening 11…95 ms; N.C. closing 13…98 ms |
| Main terminals | Screw type, 1.5…16 mm2 rigid and flexible; stripping 12 mm; IP20 |
| UL/CSA | General use rating 55 A at 600 V AC |
| Operating altitude / temperature | Up to 3000 m; -40…+70 C free air; storage -60…+80 C |
| Vibration | 5…300 Hz, 4 g closed / 2 g open |
| Dimensions / weight | 45 mm wide x 86 mm high x 101 mm deep; net weight 0.36 kg |
Using four poles: what the figures mean
The AC-3 figures in the table apply when the poles are used for motor switching: 22 A at 400 V, or 11 kW. That is well below the 38 A of the 3-pole AF38-30-00-13, so do not size a motor feeder from the 3-pole figure. For heating or lighting circuits, AC-1 is the relevant column, and 55 A at 40 C falls to 45 A at 60 C and 37 A at 70 C.
Short-time withstand is 450 A for one second. ABB gives a 63 A gG fuse for contactor short-circuit protection up to 500 V, and the same 4-pole range has DC capability up to 440 V according to the e-catalogue description.
Type code and compatible parts
AF38 is the frame size, 40 means four main poles, 00 means no auxiliary contacts, and 13 selects the 100…250 V coil. The datasheet also lists -11, -12 and -14 coil codes and low-consumption AF38Z versions. Side-mounted auxiliary blocks such as CA4-10, CAL4-11-T, CA4-22E and CA4-40E appear in the datasheet accessory table.
If you need three poles on the same frame for motor duty, the AF38-30-00-13 is the matching item; the AF09-30-10-11 contactor shows the smaller AF concept.
Documents and quotation
The linked file is ABB technical datasheet 1SBC101424D0201 for the AF38-40-00 series. Seven Star LLC supplies the AF38-40-00-13 on request from Muscat; availability is stated in the quotation. See the Contactors and Overload Relays category for related items.
Confirm before ordering: load type and category (AC-1 or AC-3), coil voltage, number of auxiliary contacts needed and operating temperature.
Datasheets & Documents
- Datasheet ABB AF38-40-00 4-pole contactors technical datasheet 1SBC101424D0201 Download
Reviews (0)
About brand
ABB is the Swiss-Swedish engineering group for electrification and automation: low voltage drives, motors, circuit breakers and motor control, process instruments and analysers, control systems and robots. It was formed on 5 January 1988 by the merger of two older companies. ASEA was founded in Västerås, Sweden, in 1883 by Ludvig Fredholm to make electric lighting and generators. BBC Brown Boveri was founded in Baden near Zurich in 1891 by Charles E. L. Brown and Walter Boveri. ABB Ltd is incorporated in Switzerland, headquartered in Zurich and listed on the SIX Swiss Exchange and Nasdaq Stockholm.
ABB company profile
| Formed | 5 January 1988, by the merger of ASEA (Sweden) and BBC Brown Boveri (Switzerland), each holding 50% |
|---|---|
| ASEA | Founded 1883 in Västerås, Sweden, by Ludvig Fredholm; first products electric lighting and generators |
| Brown, Boveri & Cie | Founded 1891 in Baden, Switzerland, by Charles E. L. Brown and Walter Boveri |
| Headquarters | Zurich, Switzerland; ABB Ltd became the group holding company in 1999 |
| Ownership | Public company listed on SIX Swiss Exchange and Nasdaq Stockholm |
| Brands in the group | Baldor (US motors, acquired 2011), B&R (machine automation, acquired 2017), K-TEK level instruments, Endura and Navigator analysers, SACE breakers |
| Product families | Low and medium voltage drives (ACS series), motors, SACE Tmax and Emax breakers, contactors and soft starters, flow, pressure, temperature and level instruments, liquid and gas analysers, Contrac actuators, AC500 PLCs, Ability System 800xA and S800 I/O, protection relays, robots |
Milestones
- 1883: ASEA is founded in Västerås, Sweden.
- 1891: Brown, Boveri & Cie is founded in Baden, Switzerland.
- 1987–1988: The merger is announced on 10 August 1987; ABB Asea Brown Boveri starts operating on 5 January 1988.
- 1999: ABB Ltd, incorporated in Switzerland, becomes the single holding company of the group.
- 2011 and 2017: Baldor Electric and B&R join ABB.
- 2020: ABB sells its power grids business to Hitachi, focusing on electrification, motion, process and machine automation.
Choosing an ABB drive
ABB's ACS drive codes are easy to read once you know the pattern. In ACS580-01-046A-4, "ACS580" is the drive family, "01" means a wall-mounted single drive, "046A" is the rated output current (about 46 A) and "-4" means a 380–480 V supply. The family is chosen by application: ACS355 for compact machinery, ACS310 for simple pumps and fans, ACS580 as the general-purpose drive, ACQ580 for water and wastewater with pump functions such as pipe fill and dry-run protection, and ACS880 for heavy industrial duty with direct torque control. Size the drive on the motor's full-load current, not only its kW rating, and allow derating for the high ambient temperatures common in Gulf electrical rooms.
Where ABB products are used
In Oman and the GCC, ABB drives and motors run pumps, fans and compressors in water and wastewater plants, district cooling, oil and gas and industry. ABB flowmeters, level instruments and analysers are used in water utilities, power and desalination plants and refineries, and SACE breakers protect switchboards in buildings and plants.
ABB products we list
| Family | Examples |
|---|---|
| AC drives | ACS580, ACS580-01-046A-4, ACQ580, ACS355, ACS310, ACS880-01, FEN-31 encoder module |
| Breakers, motor control and protection | SACE Tmax XT, XT3N 250, SACE Emax 2, AF09 contactor, PSR soft starter, REM615 relay |
| Flow measurement | ProcessMaster FEP300, AquaMaster4, CoriolisMaster FCB430, VortexMaster FSV430, SwirlMaster FSS430, OriMaster FPD500 |
| Pressure, temperature and level | 266DRH, 267CS multivariable, TTH300, K-TEK AT100, LMT200, MT5000 GWR, KM26 gauge |
| Analysers | Endura AZ20, AK100 hydrogen purity, Navigator AW641 silica, AW402 chlorine, AWT210 |
| Control systems and actuators | AC500, AC500-S, S800 AI810, AC 800F SA 811F, Contrac RSD50, Contrac RHD4000 |
Ordering ABB products: what we need
Send the full type code from the nameplate (for example ACS580-01-046A-4 or 266DSH...) and, for spare parts, the ABB ID number (such as 3BSE008508R1 or 1SBL176001R3010). For drives, add the motor power and current and any option codes (+...). For instruments, send the complete order code, which sets range, materials and approvals. Baldor motors are listed on their own brand page.
Facts checked against ABB company filings and published histories of ASEA and Brown, Boveri & Cie, October 2026.
Related products
Frequently Asked Questions
How many main poles does the AF38-40-00-13 have?
Four normally open main poles, with no auxiliary contact fitted, on a 45 mm wide body.
What is its AC-1 rating?
55 A at 40 C, 45 A at 60 C and 37 A at 70 C at up to 690 V, according to the ABB datasheet.
Which loads is a 4-pole AF contactor meant for?
ABB mentions non-inductive or slightly inductive loads such as resistance furnaces; check AC-3 ratings for motor use.
What coil does the -13 mean?
100...250 V at 50/60 Hz and DC through an electronic coil interface with built-in surge protection.
What is the net weight and depth?
0.36 kg net, 45 mm wide, 86 mm high and 101 mm deep per the ABB e-catalogue.
