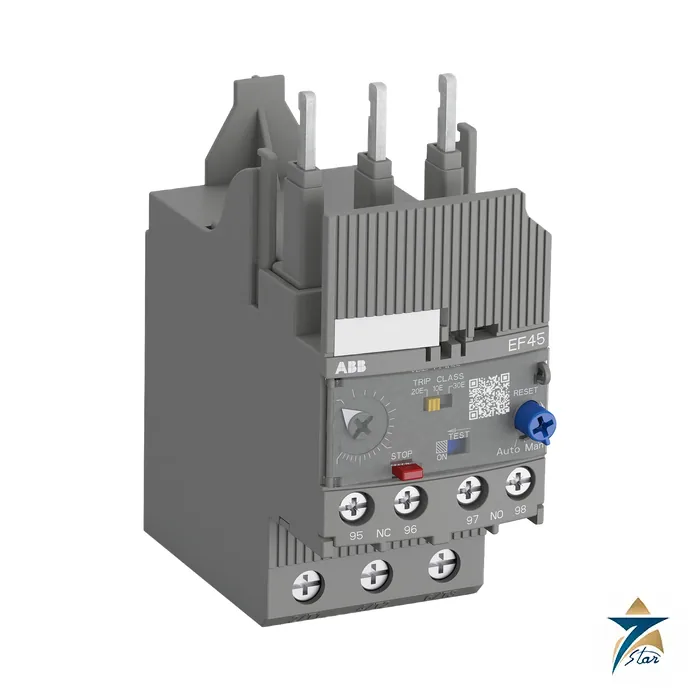

ABB EF45-45 Electronic Overload Relay 15-45 A

Name: ABB EF45-45 Overload Relay 15-45 A | Seven Star LLC
Brand: ABB
SKU: EF45-45

Description

EF45-45: electronic overload relay for 22 kW-class motors

EF45-45 covers 15 to 45 A and is the larger of the two EF45 ranges (the other being EF45-30 for 9 to 30 A). It mounts on the AF26 to AF38 contactors, which makes it a direct partner for the AF38-30-00-13 on this site when the motor falls between 11 and 22 kW at 400 V.

Like the other EF relays it is self-supplied, has a 1 N.C. trip and a 1 N.O. signal contact, and offers three trip classes (10E, 20E, 30E) with automatic or manual reset.

Technical specifications

Parameter	Specification
Type designation / order code	EF45-45 / 1SAX221001R1102 (EAN 4013614403972)
Device type	Self-supplied three-pole electronic overload relay, no external supply needed
Current setting range	15…45 A
Trip class	10E, 20E or 30E, selectable
Protection features	Overload and phase-loss sensitivity; temperature compensation; trip-free mechanism; STOP and TEST function; status indication
Reset	Automatic or manual, selectable
Contacts	1 N.C. (95-96, trip) + 1 N.O. (97-98, signal)
Rated operational voltage / insulation	690 V AC; Ui 690 V; Uimp 6 kV; pollution degree 3; overvoltage category up to III
Short-circuit protective device	160 A gG fuse (UL: 250 A fuse at 480 V and 600 V, SCCR 18 kA)
Resistance / power loss per pole	0.26 mOhm; 0.059 W at 15 A, 0.527 W at 45 A
Connection (main)	Rigid 1 x 2.5…16 mm2 or 2 x 2.5…16 mm2; flexible 2.5…16 mm2; stripping 13 mm; torque 2.3…2.6 Nm
Suitable contactors	AF26 … AF38 block contactors; DB45EF kit for DIN rail
Dimensions / weight	45 mm wide x 104.7 mm high x 86 mm deep; 0.362 kg
Mounting	Directly on AF block contactors, or on 35 mm DIN rail with a single-mounting kit; any position 1-6
Ambient temperature	Operation -25…+70 C (compensated); storage -50…+85 C; altitude up to 2000 m
Standards	IEC/EN 60947-1, 60947-4-1, 60947-5-1; UL 60947-1, 60947-4-1; LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU
Auxiliary circuit	600 V AC/DC; 6 A thermal; AC-15 3 A at 110-240 V, 1.1 A at 400 V; 6 A gG fuse
Operating frequency	Up to 15 operations/h, or 60/h at 40 % duty ratio (breaking current 6 x In, starting time up to 1 s)

Protection behaviour and short-circuit data

The ABB data sheet states that the relay does not trip at 1.05 x the set current and trips at 1.2 x. It also protects against phase loss and compensates for ambient temperature between -25 and +70 C. Resistance per pole is only 0.26 mOhm, which keeps power loss to 0.527 W per pole at 45 A.

A 160 A gG fuse is the short-circuit protective device in the IEC table, whereas the UL table lists a 250 A fuse with an 18 kA short-circuit rating at 480 V and 600 V. The relay needs that upstream device; it does not break fault current.

Mounting and wiring notes

Terminals take 2.5 to 16 mm2 conductors with 2.3 to 2.6 Nm torque and 13 mm stripping. Mounting on the contactor is done by tightening the main-circuit terminal screws; for a stand-alone relay use the DB45EF kit, which is listed separately with 0.1 kg weight.

Maximum altitude per the data sheet is 2000 m, and the housing and terminals are IP20.

Documents and quotation

The linked file is ABB EF19 and EF45 electronic overload relay data sheet 2CDC107025D0201. Seven Star LLC supplies the EF45-45 on request from Muscat, with availability and lead time confirmed in the quotation. Related motor-starter parts are in the Contactors and Overload Relays category, including the ABB TA25DU1.4 thermal overload relay.

Confirm before ordering: motor full-load current and the trip class your process needs, the contactor frame it will mount on, and the short-circuit device in your feeder.
