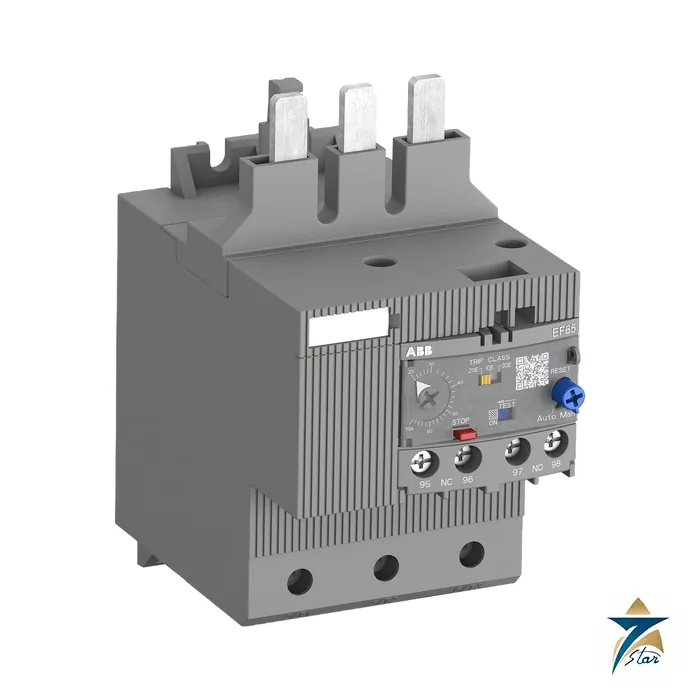

ABB EF65-70 Electronic Overload Relay 25-70 A

Name: ABB EF65-70 Overload Relay 25-70 A | Seven Star LLC
Brand: ABB
SKU: EF65-70

Description

EF65-70: electronic protection for 30-37 kW motors

EF65-70 is the 25 to 70 A electronic overload relay of ABB’s EF65 family, built for the AF40, AF52 and AF65 contactors. The family data sheet also covers EF96 and EF146, and lists all of them for AF40 through AF146 block contactors with direct mounting.

The relay is rated 1000 V AC, self-supplied and offers trip classes 10E, 20E and 30E with automatic or manual reset. It signals through one N.C. trip contact and one N.O. signal contact.

Technical specifications

Parameter	Specification
Type designation / order code	EF65-70 / 1SAX331001R1101 (EAN 4013614442254)
Device type	Self-supplied three-pole electronic overload relay, no external supply needed
Current setting range	25…70 A
Trip class	10E, 20E or 30E, selectable
Protection features	Overload and phase-loss sensitivity; temperature compensation; trip-free mechanism; STOP and TEST function; status indication
Reset	Automatic or manual, selectable
Contacts	1 N.C. (95-96, trip) + 1 N.O. (97-98, signal)
Rated operational voltage / insulation	1000 V AC; Ui 1000 V; Uimp 8 kV
Short-circuit protective device	160 A gG fuse
Resistance / power loss per pole	0.09 mOhm; 0.06 W at 25 A, 0.45 W at 70 A
Connection (main)	1 x 4…35 mm2 rigid or flexible; stripping 20 mm; tightening torque 4 Nm
Suitable contactors	AF40 … AF146 block contactors (EF65 is listed for AF40-AF65 in the e-catalogue)
Dimensions / weight	70 mm wide x 131.2 mm high x 105.2 mm deep; 0.821 kg
Auxiliary circuit	600 V AC/DC; 6 A gG fuse for the contacts
Ambient temperature	Operation -25…+70 C (temperature compensated); storage -50…+85 C
Standards	IEC/EN 60947-1, 60947-4-1, 60947-5-1; UL 60947 series

Setting, losses and short-circuit protection

The 70 A upper value fits motors of about 30 to 37 kW at 400 V. As with the other EF relays the ABB note is that you set the motor rated current, with no trip at 1.05 x and trip at 1.2 x the setting. Phase-loss sensitivity and temperature compensation are included.

Resistance per pole is 0.09 mOhm, giving 0.06 W at 25 A and 0.45 W at 70 A. A 160 A gG fuse is listed for short-circuit protection. Compared with the thermal alternatives, the electronic relay needs no heater element change when the motor current changes within the range.

Terminals and where it sits in the EF family

The EF65-70 has a sibling EF65-56 (20 to 56 A) with the same 0.821 kg body. Connection capacity is 1 x 4 to 35 mm2, stripping length 20 mm and torque 4 Nm, so cable lugs may be needed at the upper end of the range.

For larger motors the family continues with EF96-100 (36 to 100 A) and EF146-150 (54 to 150 A), and EF205/EF370 above that.

Documents and quotation

The linked file is ABB EF65, EF96 and EF146 electronic overload relay data sheet 2CDC107041D0201. Seven Star LLC supplies the EF65-70 on request from Muscat, with availability and lead time confirmed in the quotation. Related motor-starter parts are in the Contactors and Overload Relays category, including the ABB TA25DU1.4 thermal overload relay.

Confirm before ordering: motor full-load current and the trip class your process needs, the contactor frame it will mount on, and the short-circuit device in your feeder.
