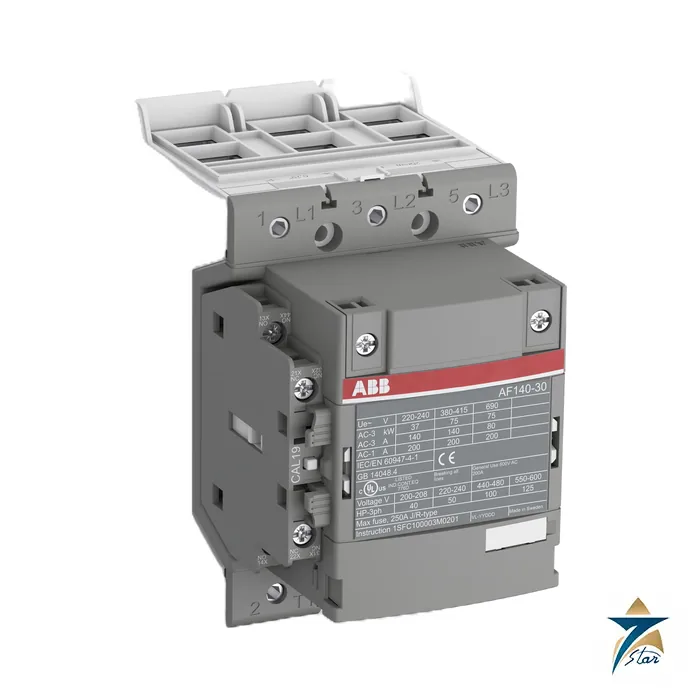

ABB AF140-30-11-13 3-Pole Contactor 75 kW 100-250 V AC/DC
Description
AF140 contactor that reaches 75 kW in a 90 mm frame
AF140-30-11-13 packs 140 A of AC-3 capacity into the same 90 x 150 x 126 mm body as the AF116, so the e-catalogue puts it at 75 kW at 400 V, 90 kW at 440 V and 200 A in AC-1 at 40 C. A built-in 1 N.O. + 1 N.C. auxiliary contact pair is included, and the double-clamp terminals take two conductors per pole.
It is the contactor to look at when a motor starter or a by-pass contactor must carry roughly 130 to 140 A without stepping up to the 105 mm AF190/AF205 frame. ABB lists operation to 3000 m altitude and 5 million mechanical operations.
Technical specifications
| Parameter | Specification |
|---|---|
| Type designation / order code | AF140-30-11-13 / 1SFL447001R1311 (UPC 7320500476949) |
| Contactor type | 3-pole block contactor with 1 N.O. + 1 N.C. auxiliary contact built in |
| Control coil | 100…250 V 50/60 Hz and DC, wide-range electronic coil |
| Standards / voltages | IEC 60947-4-1; Ue 690 V; Ui 690 V (UL/CSA 600 V); Uimp 8 kV |
| AC-1 current at 690 V | 200 A at 40 C; 160 A at 70 C |
| Conventional thermal current Ith | 200 A |
| AC-3 current at 55 C | 140 A at 220-440 V; 130 A at 500 V; 80 A at 690 V |
| AC-3 power | 37 kW at 230 V; 75 kW at 400/415 V; 90 kW at 440/500 V; 75 kW at 690 V |
| UL/CSA motor ratings | 40 hp at 200/208 V; 50 hp at 230 V; 100 hp at 480 V; 125 hp at 600 V; 200 A general use |
| Short-time withstand Icw | 1460 A for 1 s; 1168 A for 10 s; 674 A for 30 s; 477 A for 1 min; 200 A for 15 min |
| Maximum breaking capacity | 3000 A at 440 V; 1500 A at 690 V |
| Contactor short-circuit protection | gG fuse 315 A |
| DC-1 / DC-3 / DC-5 | 160 A (2 poles in series at 110 V, 3 poles in series at 220 V) |
| Coil consumption | AC pull-in 130 VA, holding 6 VA; DC pull-in 135 W, holding 3 W |
| Operating time | Closing 25…55 ms; N.O. opening 37…47 ms |
| Switching frequency / life | AC-3 300 cycles/h; mechanical durability 5 million operations |
| Main terminals | Double clamp; 2 x 10…70 mm2 flexible, 2 x 10…95 mm2 rigid Cu; IP00 main, IP20 coil |
| Dimensions / weight | 90 mm wide x 150 mm high x 126 mm deep; 1.55 kg |
Sizing a 75 kW starter around the AF140
A 75 kW, 400 V motor draws about 135 A, which sits close to the contactor’s 140 A AC-3 limit, so check starting duty and overload class before locking the choice. The rating falls to 130 A at 500 V and 80 A at 690 V. In AC-1 the table gives 200 A at 40 C and 160 A at 70 C.
Fault withstand is 1460 A for one second, and the contactor needs a 315 A gG fuse when no overload relay is fitted. Breaking capacity is 3000 A at 440 V and 1500 A at 690 V. For DC loads, 160 A is allowed with two poles in series at 110 V or three at 220 V.
Type code and frame family
AF140 is the frame, 30 means three main poles, 11 means one N.O. and one N.C. built-in auxiliary contact, and 13 selects the 100…250 V AC/DC coil. The 7320500476949 UPC identifies this exact order code.
Frame-mates in the e-catalogue include AF116-30-11-13 (same body, lower rating). Match overload relays from the EF146 family, then confirm whether your design needs the larger AF190 frame.
Documents and quotation
The linked file is an extract (pages 19 and 20) of ABB’s AF range catalogue 1SXU100109C0201, covering the AF116 to AF370 ordering tables; the e-catalogue entry for 1SFL447001R1311 supplied the technical values. Seven Star LLC supplies the AF140-30-11-13 on request from Muscat, and availability and lead time are given in the quotation. See the Contactors and Overload Relays category for other starters.
Confirm before ordering: control voltage and frequency, motor current at your supply voltage, the terminal type for your cable, and whether auxiliary contacts beyond the built-in 1 N.O. + 1 N.C. are needed.
