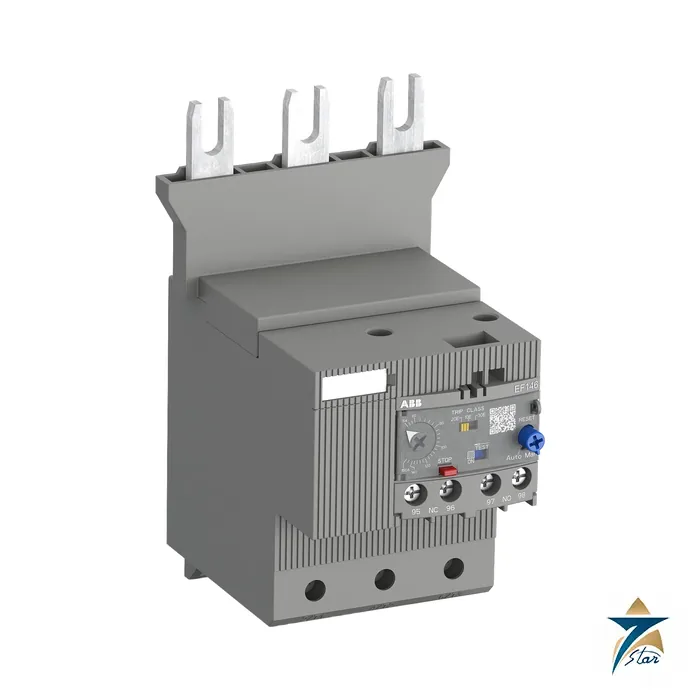

ABB EF146-150 Electronic Overload Relay 54-150 A

Name: ABB EF146-150 Overload Relay 54-150 A | Seven Star LLC
Brand: ABB
SKU: EF146-150

Description

EF146-150: electronic overload relay for 75 kW-class motors

EF146-150 is the largest member of the EF65/EF96/EF146 data sheet and covers 54 to 150 A. ABB describes it for the AF116 to AF146 contactor frames, which on this site correspond to the AF116-30-11-13 and AF140-30-11-13 contactors.

At 89 mm wide and 150 mm tall it matches the 90 mm contactor body. The relay is self-supplied, rated 1000 V and has selectable trip classes 10E, 20E and 30E.

When replacing an older thermal relay, compare the load current and the contactor type before ordering. Send the order code 1SAX351001R1101 together with the contactor designation and the motor full-load current, so that the quotation covers the right relay and the matching mounting accessories.

Technical specifications

Parameter	Specification
Type designation / order code	EF146-150 / 1SAX351001R1101 (EAN 4013614442230)
Device type	Self-supplied three-pole electronic overload relay, no external supply needed
Current setting range	54…150 A
Trip class	10E, 20E or 30E, selectable
Protection features	Overload and phase-loss sensitivity; temperature compensation; trip-free mechanism; STOP and TEST function; status indication
Reset	Automatic or manual, selectable
Contacts	1 N.C. (95-96, trip) + 1 N.O. (97-98, signal)
Rated operational voltage / insulation	1000 V AC; Ui 1000 V; Uimp 8 kV
Short-circuit protective device	315 A gG fuse
Resistance / power loss per pole	0.07 mOhm; 0.21 W at 54 A, 1.58 W at 150 A
Connection (main)	1 x 10…95 mm2 rigid (10…70 mm2 flexible); stripping 20 mm; torque 8 Nm
Suitable contactors	AF116, AF140, AF146 (family data sheet lists AF40 … AF146)
Dimensions / weight	89.05 mm wide x 150.4 mm high x 105.2 mm deep; 0.879 kg
Auxiliary circuit	600 V AC/DC; 6 A gG fuse for the contacts
Ambient temperature	Operation -25…+70 C (temperature compensated); storage -50…+85 C
Standards	IEC/EN 60947-1, 60947-4-1, 60947-5-1; UL 60947 series

Matching the relay to motor and contactor

A motor drawing 135 to 140 A at 400 V, the AC-3 limit of AF116 and AF140, sits comfortably within the 54 to 150 A range. Loss per pole runs from 0.21 W at 54 A to 1.58 W at 150 A, with 0.07 mOhm resistance. Fuse protection is 315 A gG.

The setting is the motor rated current; ABB specifies no trip at 1.05 x and trip at 1.2 x the setting. The relay offers temperature compensation from -25 to +70 C and sealable operating elements for tamper-proof set values.

Wiring and commissioning

Main terminals take 1 x 10 to 95 mm2 rigid or 10 to 70 mm2 flexible conductors, 20 mm stripped, at 8 Nm. That torque is double the EF65 value, so use a calibrated tool.

After wiring the trip contact 95-96 in series with the contactor coil, run the TEST function and then the STOP function; the data sheet logs the contact states for each mode.

Documents and quotation

The linked file is ABB EF65, EF96 and EF146 electronic overload relay data sheet 2CDC107041D0201. Seven Star LLC supplies the EF146-150 on request from Muscat, with availability and lead time confirmed in the quotation. Related motor-starter parts are in the Contactors and Overload Relays category, including the ABB TA25DU1.4 thermal overload relay.

Confirm before ordering: motor full-load current and the trip class your process needs, the contactor frame it will mount on, and the short-circuit device in your feeder.
