REHM BOOSTER.PRO 230 Stick Inverter – Brochure & Price Quote

Name: REHM BOOSTER.PRO 230 Stick Inverter – Brochure & Price Quote
Brand: REHM
SKU: BOOSTER.PRO 230

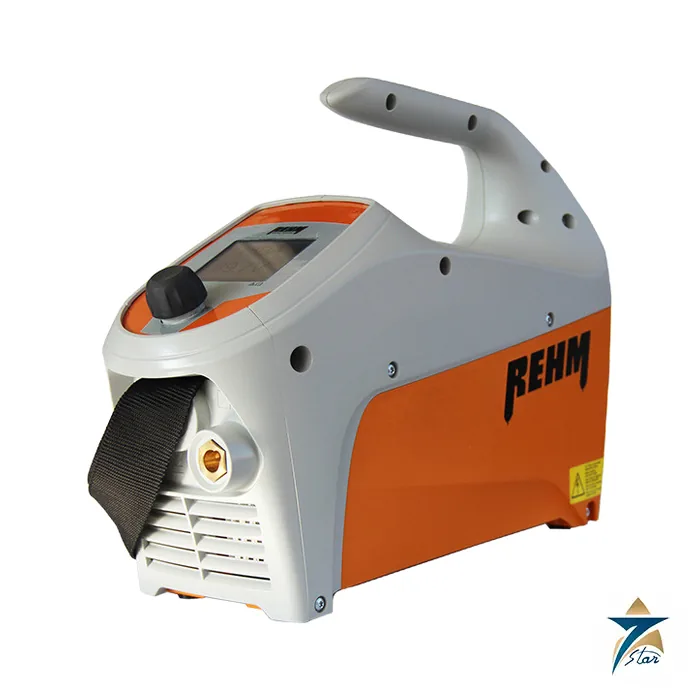

A digital stick inverter for site welding

The REHM BOOSTER.PRO 230 is a fully digital electrode (MMA) inverter in the housing design of the TIGER range. It is built for steelwork, repair and site welding where the machine is carried, run from a long cable or a generator, and knocked about. REHM fits a Power Factor Controller (PFC) that keeps the current draw clean, lets the machine run on supplies from 110 to 260 V at reduced power, and, per REHM, works with a 100 m mains cable and on generators.

Process control includes hot start, SoftStart, anti-stick, freely adjustable ArcForce, electrode pulse welding (HYPER.PULS up to 17,500 Hz) and LiftArc contact ignition for basic TIG work. Synergy characteristics are stored for basic and rutile electrodes, and the Boost function delivers full output from a single-phase supply. A VRD voltage reduction device is fitted as standard for safer work in damp conditions.

Technical specifications

Parameter	Specification
Manufacturer / model	REHM / BOOSTER.PRO 230
Item number	1513240; set with case and cables 1513241
Setting range, TIG (LiftArc)	4 to 230 A
Setting range, electrode	20 to 180 A (booster); 20 to 150 A (fuse hold)
Duty cycle at Imax, electrode	40 % (booster); 60 % (fuse hold)
Welding current at 100 % duty, electrode	140 A
Mains	1 x 230 V, 50/60 Hz, +15 / -25 %; reduced power from 110 to 260 V
Fuse	16 A slow-blow
Power factor / consumption at Imax	0.99 / 5.8 kVA
Protection type / insulation class	IP 23 S / F
Welding cable socket	13 mm
Weight	6.7 kg
Dimensions	480 x 160 x 320 mm L x W x H

Set contents and accessories

Item	Item number	Contents
BOOSTER.PRO 230	1513240	Machine without accessories
BOOSTER.PRO 230 set	1513241	Case, 25 mm² earth and electrode cables, wire brush, chipping hammer
Earth cable 25 mm², 4 m	7810101	13 mm connector, 400 A clamp

REHM also lists TIG torches with separate gas control, an electrode cable and a mounting case as accessories; the item numbers are in the brochure. The brochure covers the smaller BOOSTER2 150 on the same pages, with 5 to 150 A and 2.3 kg, if a lighter machine is wanted.

What to confirm before ordering

Check the electrodes you use against the 180 A booster range and the duty cycle, and confirm whether a generator or a long cable run is involved so the PFC and supply tolerance can be checked against the real site. State whether the set with case and cables is needed. For heavy daily stick work above these ratings, a larger machine is a better match.

REHM lists synergy characteristics for basic and rutile electrodes, so if cellulosic or special alloy electrodes are used, confirm them against the manufacturer documentation. The set with case and cables suits site crews that want a ready-to-weld kit, while the bare machine suits shops that already own suitable cables and clamps.

Documents and quotation

The REHM BOOSTER.PRO 230 brochure is on this page. Compare other machines under Stick (MMA) Welding Machines, such as the Kemppi Minarc Evo 180.

To request a quotation send the item number or set, supply details and the electrode types and diameters.

Product lines and technology

The range includes the SYNERGIC.ARC heavy-duty MIG/MAG machines, the MEGA.ARC and FOCUS.ARC pulse systems, TIGER digital portable TIG inverters, BOOSTER stick (MMA) inverters and BARRACUDA plasma cutters. The machines use the SIRIUS graphic operating system, and the TIG line adds the HYPER.PULS, HYPER.SPOT and DUAL.WAVE processes. The manufacturer also supplies welding accessories, training and service.
