Brand: Böhler Welding

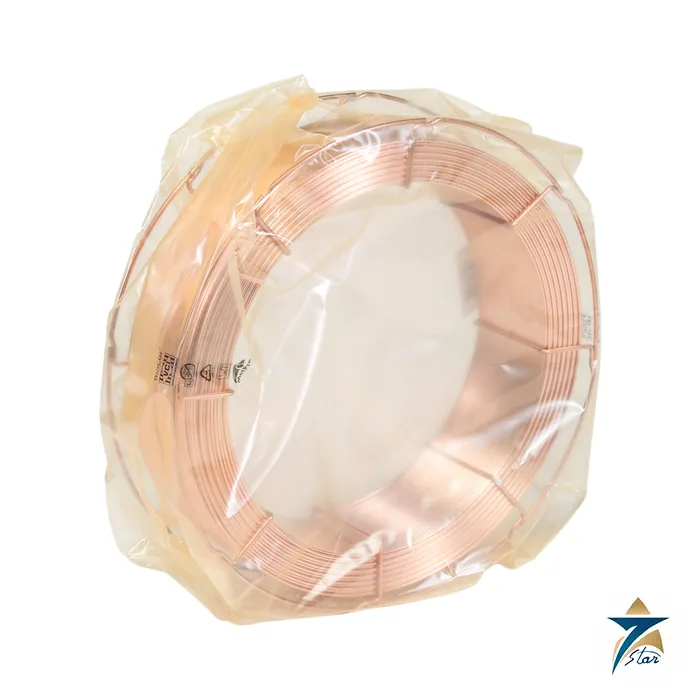

Böhler Union S 2 CrMo EB2R 1.25Cr-0.5Mo Submerged Arc Wire
Description
1.25Cr-0.5Mo SAW wire for boilers and petrochemical pressure vessels
Böhler Union S 2 CrMo is a copper-coated solid wire for submerged arc welding of creep-resistant 1.25 % Cr – 0.5 % Mo steels in power generation boilers and in petrochemical pressure vessels. It is classified AWS A5.23 / SFA-5.23 EB2R and EN ISO 24598-A S S CrMo1. The suffix R in EB2R marks the restricted trace-element level that is required where temper embrittlement is a concern, so it is a wire for equipment that runs hot for long periods, such as steam drums, headers, reactors and heat exchanger shells in 1Cr-0.5Mo and 1.25Cr-0.5Mo grades.
Technical specifications
| Parameter | Specification |
|---|---|
| Product type | SAW wire, creep resistant, copper coated, solid |
| AWS classification | A5.23 / SFA-5.23 EB2R |
| EN ISO classification | 24598-A S S CrMo1 |
| Typical wire analysis, wt % | C 0.12; Si 0.10; Mn 0.80; Cr 1.25; Mo 0.55 |
| Application | Creep-resistant 1.25Cr-0.5Mo steels: power-generation boilers, petrochemical pressure vessels |
| Diameters, inch (US data sheet) | 1/16; 5/64; 3/32; 1/8; 5/32 |
| Flux named in Böhler documents | UV 420 TTR-W (AC with S 2 CrMo and S 1 CrMo 2) |
| Approvals on data sheet | None listed |
Flux, PWHT and procedure
The UV 420 TTR-W data sheet recommends that flux in particular for Union S 1 CrMo 2 and Union S 2 CrMo on AC, to hold strength after long post-weld heat treatment and to meet stringent sub-zero toughness requirements even after step cooling. See for its flux data. Preheat, interpass temperature, PWHT temperature and holding time, and any step-cooling or toughness test requirement come from the qualified WPS and the pressure-equipment code. For 2.25Cr-1Mo service, such as hydrocrackers, use
, and for P91 use .| Related Böhler SAW wire | AWS / EN ISO class | Typical steel |
|---|---|---|
| Union S 2 Si | EM12K / S2Si | C-Mn structural steel up to S420 |
| Union S 1 CrMo 2 | EB3R / S S CrMo2 | 2.25Cr-1Mo, grade 22 hydrocrackers |
| Thermanit MTS 3 LNi | EB91 / S S ZCrMo91 | P91 creep-resistant steel |
Storage and wire handling
Copper-coated SAW wire protects itself from rust only while it stays dry and clean. Keep spools and coils in their original packing until use, store them off the floor in a dry room, and do not leave an opened spool on the machine overnight in humid conditions. Surface rust and dust shorten contact tip life, disturb feeding and add hydrogen to the weld. Before ordering, confirm the diameter, spool or coil type and the certificate level (for example EN 10204 type 3.1) that your project requires.
Documents and quotation
The Böhler Welding data sheet for Union S 2 CrMo (US edition, 03/2021) is attached. More wires are in the SAW Wire category. For a quotation, send diameter, packaging, quantity, flux and certificate requirements (for example EN 10204 3.1).
Datasheets & Documents
- Datasheet Böhler Welding Union S 2 CrMo data sheet (US edition, 03/2021) Download
Reviews (0)
About brand
Böhler Welding is the welding consumables brand of voestalpine Böhler Welding, part of the voestalpine group, with a portfolio that covers stick electrodes, TIG rods, solid wires, gas-shielded and self-shielded flux-cored wires and submerged-arc wires and fluxes. The company states more than 100 years of experience. Seven Star LLC, an independent supplier in Muscat, lists Böhler Welding consumables and welding machines, including pipeline electrodes, and sources Böhler Welding consumables for fabricators and pipeline contractors.
Böhler Welding product groups
Beyond the consumables above, Böhler Welding lists strip cladding, wire arc additive manufacturing, metal powders, arc spraying cored wires, ceramic weld backing, brazing consumables and welding automation such as orbital welding and collaborative robots. The pipeline range includes cellulosic FOX CEL electrodes and basic vertical-down FOX BVD electrodes for large-diameter line pipe.
Ordering Böhler Welding consumables: what we need
Give the product name, the AWS or EN classification, the diameter and length, and the packaging you need. For pipeline electrodes also state the pipe grade, wall thickness, welding position and whether sour-service test values are required, because the Böhler Welding data sheets note that some test values are available on request.
Related products
Frequently Asked Questions
What is the classification of Union S 2 CrMo?
AWS A5.23 EB2R and EN ISO 24598-A S S CrMo1.
Which steels does it weld?
Creep-resistant 1.25Cr-0.5Mo steels for boilers and petrochemical pressure vessels.
What is the typical chemistry?
About 0.12 % C, 0.10 % Si, 0.80 % Mn, 1.25 % Cr and 0.55 % Mo.
Which flux does Böhler single out?
UV 420 TTR-W, on AC, for strength after long PWHT.
Which diameters does the US data sheet list?
1/16, 5/64, 3/32, 1/8 and 5/32 inch.
