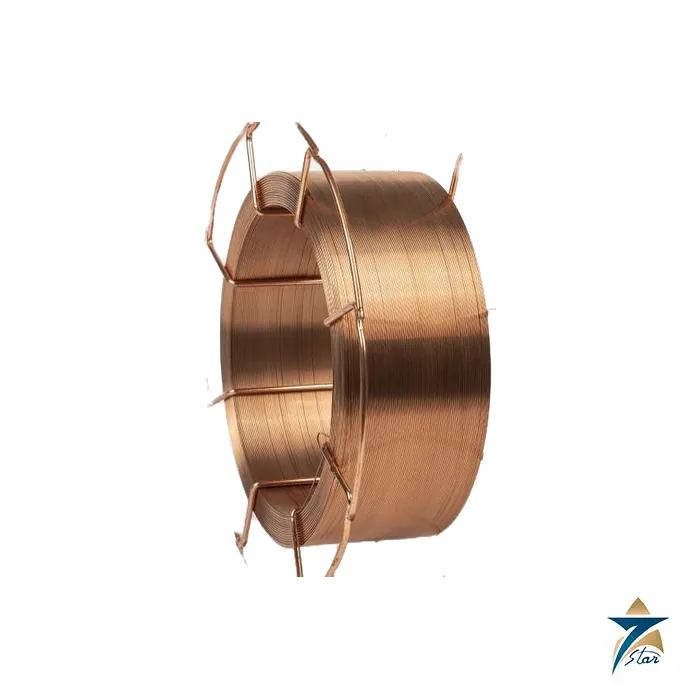

LongTeng EM13K Silicon-Killed Submerged Arc Welding Wire

Introducing LongTeng EM13K

LongTeng EM13K closes the submerged arc wire pages of the LongTeng welding materials catalogue and is the only grade that has a page to itself. The printed designation is AWS EM13K, the diameters are 2.5, 3.2, 4.0 and 5.0 mm, and the listed flux is the sintered type SJ101. Compared with the EM12 and EM12K entries, this grade shows a noticeably higher silicon level and a higher strength window, with tensile strength printed as a range from 490 to 670 MPa.

Seven Star LLC supplies LongTeng consumables to fabrication yards, pipe coating and spool shops, and EPC contractors in Oman and the GCC. Our Muscat team can send the datasheet extract, request the manufacturer’s test certificate and discuss diameters and packs before a purchase order is raised.

Decoding the EM13K Name

General class information: in the AWS A5.17 system, E marks an electrode, M a medium manganese level, 13 a nominal carbon content of about 0.13 percent, and K a silicon-killed wire. A silicon-killed wire carries enough silicon to deoxidise the weld pool strongly, which helps it tolerate mill scale and light surface oxide on plate and gives a smooth, well-wetted bead. The printed silicon figure of 0.67 percent for this grade is consistent with that idea. These notes explain how the class name is read and do not add any guarantee from LongTeng.

Higher Strength Window

The mechanical row for LongTeng EM13K is the strongest among the plain carbon wires on pages 22 to 24 of the catalogue. Minimum yield strength is printed as 390 MPa, minimum elongation as 18 percent and minimum impact energy as 27 J at minus 20 degrees Celsius. The elongation floor is lower than the 22 percent shown for the neighbouring grades, which is a normal trade for higher strength: the weld metal is stronger but slightly less ductile. Designers should keep that balance in mind when comparing wires for a joint that must absorb strain.

The application text printed beside this entry repeats a 420 MPa plate class that does not sit well with a 490 to 670 MPa weld metal range, so Seven Star LLC does not quote that statement. Please give us your base metal grade and we will ask the manufacturer to confirm suitability in writing before you buy.

Chemistry as Printed

The catalogue analysis lists carbon at 0.089 percent, manganese at 0.98 percent, silicon at 0.67 percent, sulphur at 0.023 percent, nickel at 0.034 percent, chromium at 0.015 percent and copper at 0.110 percent. The phosphorus figure on the page is left out of this summary because it needs confirmation. The test certificate for the lot, which we can request, is the right document to read for a complete and verified analysis of LongTeng EM13K.

Practical Notes for Using LongTeng EM13K

The flux and wire form a system. SJ101 is a sintered flux, and as general practice sintered fluxes are kept in sealed packaging, redried before use and stored warm if the workshop is humid, which is common in coastal Oman. Wire should be loaded from sealed coils or drums with a clean feed path and a dry contact tip. For LongTeng EM13K, heavy diameters of 4.0 and 5.0 mm are suited to thick joints and high deposition, while 2.5 and 3.2 mm give finer control on moderate sections.

• Qualify the wire and flux on your own plate with your own heat input.
• Watch interpass temperature on thicker sections, since higher strength weld metal is more sensitive to cooling rate.
• Check the diameter marked on the pack against the one on the order.
• Keep records of wire lot and flux lot for each weld seam.

No current, voltage or travel speed ranges are printed for this grade, so those parameters belong in your welding procedure specification rather than on a product page.

Where the Wire Fits in the Region

Industries in the Sultanate that weld thick carbon steel include pressure vessel and heat exchanger fabrication, storage tank construction, structural steel for processing plants, and steel pipe and pile production. A higher-strength, silicon-killed wire like LongTeng EM13K is considered where the weld must carry more load than a basic wire allows, or where plate surfaces are not perfectly clean when they reach the welding station. Shipyards and heavy equipment builders on the Gulf coast are further examples of users of this wire class.

Technical Table for LongTeng EM13K

Typical values listed by the manufacturer for LongTeng EM13K:

Packages in the Catalogue

The package reference pages show submerged arc coil wire in 25, 50, 100, 250 and 350 kg weights and drum packs of 150, 250 and 350 kg. They are the manufacturer’s reference packages, not a statement of our stock position. Tell us what your machine needs when you ask for a quotation on LongTeng EM13K.

Other Seven Star LLC Items

Alongside consumables we list welding equipment and site cabling. Browse the Lincoln Electric Power Wave S500, the ESAB Rebel EMP 285ic and the Hawke 501/421 industrial cable gland, or return to the submerged arc welding wire category.

Ordering Guidance

When you ask for LongTeng EM13K, it helps to tell us the plate thickness, joint preparation, expected welding position and the inspection regime that applies, such as radiography or ultrasonic testing of the finished seam. With that information we can pass a clear question to the manufacturer, ask for a lot test certificate that matches the delivery, and propose a diameter and package that suit the feeder fitted to your submerged arc head. A short, complete enquiry saves days on lead time.

Call To Action

Ask Seven Star LLC for a quotation on LongTeng EM13K by sending diameter, quantity, pack preference and base metal grade. The datasheet extract on this page carries the printed table, and the manufacturer’s test certificate can be requested with the order.
