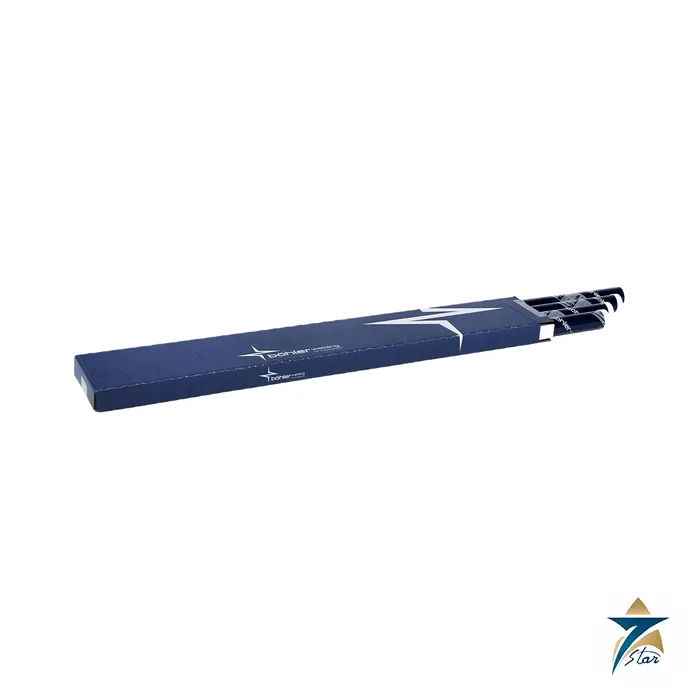

Böhler Thermanit JE-308L ER308L Stainless TIG Welding Rod

ER308L TIG rod for 304 and 304L austenitic stainless steel

Böhler Thermanit JE-308L is a TIG rod of type ER308L / W 19 9 L for joining and surfacing with matching and similar stabilised and unstabilised austenitic CrNi(N) and CrNiMo(N) steels and cast steel grades. Böhler Welding states corrosion resistance similar to matching low-carbon and stabilised 18/8 CrNi(N) steels, excellent weld metal toughness down to -320 °F (about -196 °C) and a maximum application temperature of 650 °F (about 345 °C). It is the standard rod for 304 and 304L process piping, tanks, food and chemical equipment.

Technical specifications

Parameter	Specification
AWS classification	A5.9 / SFA-5.9 ER308L
EN ISO classification	14343-A W 19 9 L
Typical analysis, wt %	C max 0.02; Si 0.5; Mn 1.8; Cr 20; Ni 10.0
Base materials	1.4301 X5CrNi18-10; 1.4306 X2CrNi19-11; 1.4307 X2CrNi18-9; 1.4311; 1.4312; 1.4541; 1.4546; 1.4550; UNS S30400, S30403, S30453, S32100, S34700; AISI 304, 304L, 304LN, 302, 321, 347
All-weld metal, as welded (typical, minimum)	Yield 58 ksi (400 MPa), min 46; tensile 80 ksi (552 MPa), min 74; elongation 38 %, min 30
Polarity / shielding gas	DC-; I1 (argon)
Sizes (length 39 in.) and parameters	0.035 in.: 50-70 A, 9-11 V; 0.045 in.: 60-80 A, 9-11 V; 1/16 in.: 80-120 A, 10-13 V; 5/64 in.: 100-130 A, 14-16 V; 3/32 in.: 130-160 A, 16-18 V
Approvals	TÜV (09451), DB (43.13.19), DNV, ABS, CE

Selection and practical notes

For molybdenum-bearing 316 and 316L base metal use

Thermanit GE-316L.

, and for joints between stainless and carbon steel use

Thermanit 309L.

. A 308L deposit is chosen for service where there is no molybdenum requirement. Stainless TIG welding needs argon back purging on the root side of pipe to avoid oxidation, and a clean, dedicated rod and brush set so that carbon steel is not carried into the weld.

Related Böhler TIG rod	AWS / EN ISO class	Typical use
Thermanit GE-316L	ER316L / W 19 12 3 L	Stainless 316 and 316L
Thermanit 309L	ER309L / W 23 12 L	Dissimilar joints and buffer layers
Thermanit 22/09	ER2209 / W 22 9 3 N L	2205 duplex stainless

Handling and what to confirm

Store stainless rods separately from carbon steel consumables, wear clean gloves, and use stainless brushes and abrasives only. Confirm the diameter, pack size and certificate level when ordering. If the equipment is for cryogenic or LNG service, ask for the toughness test conditions on the certificate, since the data sheet figure refers to typical all-weld metal values in the as-welded condition.

Documents and quotation

The Böhler Welding data sheet for Thermanit JE-308L (GTAW, US edition) is attached. See the TIG Welding Wire category for further rods. For a quotation, send diameter, pack size, quantity and certificate requirements.
