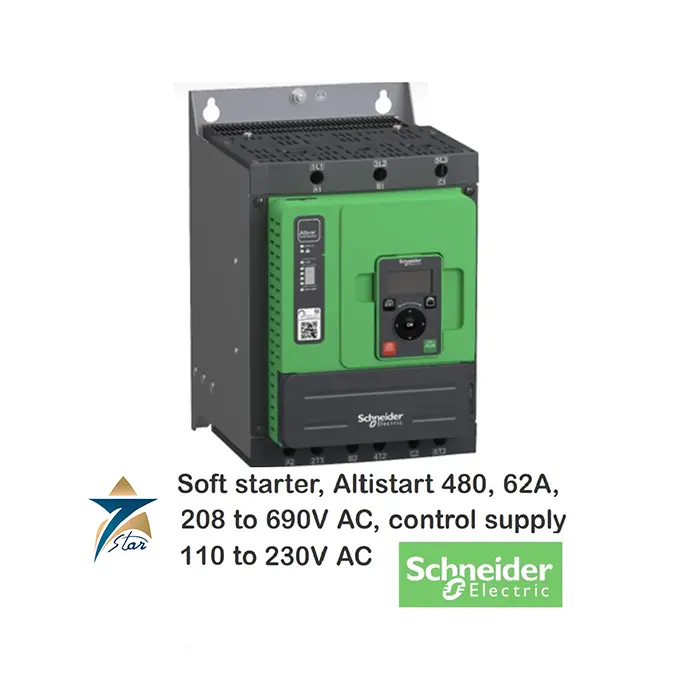

Schneider Electric Altistart 480 ATS480D62Y – Soft Starter (62 A, 208–690 V AC)

Name: Schneider Electric Altistart 480 ATS480D62Y Soft Starter 62A
Brand: Schneider Electric

Description

Overview:

Optimized Motor Starting for Industrial Systems

The Altistart 480 ATS480D62Y soft starter from Schneider Electric belongs to the Schneider Electric Altistart 480 series — a new generation of soft starters engineered for digitized motor control with built-in protections and flexibility for demanding factory environments. It is designed to manage motor acceleration and deceleration, enabling smoother operation, lower inrush current, and reduced mechanical wear when compared with direct online starting.

This soft starter supports motors with rated currents up to 62 A in normal duty (47 A in heavy duty) and supplies motors within a voltage range of 208 to 690 V AC (three-phase). Its control supply voltage (CL1-CL2) ranges from 110 V to 230 V AC, allowing flexible integration with diverse control panel architectures and standard industrial supply circuits.

Key Features & Benefits

Efficient Motor Speed & Torque Management

Soft Start & Stop: Smoothly ramps voltage to the motor to reduce mechanical stress on shafts, gearboxes, and belts, preventing spikes in starting current and extending motor life.
Torque Control: Limits motor torque during acceleration and deceleration, improving control in high-inertia applications.
Dynamic Braking & DC Injection Options: Enhances stopping performance and reduces stopping time where needed.

Robust Voltage & Control Compatibility

Wide Operational Voltage: Works effectively across 208–690 V AC, suitable for most industrial power levels.
Control Supply Range: 110–230 V AC for control logic ensures compatibility with varied electrical environments.

Built-In Protection & Monitoring

Offers overload protection, phase loss detection, under-voltage protection, and thermal monitoring to safeguard both the motor and soft starter from damage.
Compatible with remote monitoring and diagnostics when integrated with automation systems such as EcoStruxure, Modbus, or, with optional modules, Modbus TCP/EtherNet/IP, PROFINET, Profibus DP V1 or CANopen (Modbus serial is built in).

Industrial-Grade Design

Designed to meet EN/IEC 60947-4-2 industrial standards for soft starters (via related range specifications).
Digitally enabled and cybersecurity-ready, simplifying commissioning and reducing engineering effort.

Applications & Use Cases

The Schneider Electric Altistart 480 ATS480D62Y is ideal for a wide range of motor control applications in industrial and commercial settings, such as:

Pumps & Compressors: Smooth motor start reduces water hammer, mechanical shocks, and electrical spikes.
HVAC Systems: Controlled acceleration of fans and blowers for energy-efficient operation.
Conveyors & Material Handling: Prevents sudden jolts on belts and loads, enhancing process stability.
Industrial Processing Lines: Ensures reliable, gradual motor performance for critical production sequences.

Technical Specifications

Model	Schneider Electric Altistart 480 ATS480D62Y
Rated Current	62 A normal duty (below 40 °C); 47 A heavy duty
Motor Voltage Range	208–690 V AC, three-phase
Control Supply Voltage	110-230 V AC -15/+10%, 50/60 Hz (CL1-CL2)
Standard	IEC 60947-4-2, UL 60947-4-2, IEC 60664-1
Communication	Modbus serial built in (RJ45, RS 485, RTU); optional modules for Modbus TCP/EtherNet/IP, PROFINET, Profibus DP V1, CANopen
Heavy Duty Rated Current	47 A at 40 °C
Motor Power at 400 V (in line)	30 kW normal duty / 22 kW heavy duty
Motor Power at 690 V (in line)	45 kW normal duty / 37 kW heavy duty
Motor Power at 400 V (inside delta)	55 kW normal duty / 45 kW heavy duty
Current Limiting	150 to 700% of In (5 × Ie maximum)
Degree of Protection	IP20
Control Inputs and Outputs	4 logic inputs (RUN, STOP, DI3, DI4), 3 relay outputs, 2 digital outputs, 1 analogue output (0-20 mA or 0-10 V), 3 PTC/Pt100 probe inputs
Dimensions (H x W x D) / Weight	290 × 190 × 247 mm / 8.3 kg

Normal Duty and Heavy Duty Sizing

The 62 A rating of the ATS480D62Y applies to normal duty at an ambient temperature below 40 °C. For heavy duty starts the same unit is rated 47 A, so a motor that needs heavy duty must be matched against the lower figure. Connected in the motor supply line, Schneider Electric lists 15 kW at 230 V, 30 kW at 400 V or 440 V, 37 kW at 500 V or 525 V and 45 kW at 660 V or 690 V in normal duty; the heavy duty values are 11, 22, 30 and 37 kW.

Two derating rules matter in hot or high locations. Between 40 and 60 °C the current must be derated by 2% per °C, and above 1000 m altitude by 1% per 100 m up to 4000 m; operation without derating covers -15 to 40 °C. The starter can also be wired to the motor delta terminals, which raises the usable motor power to 55 kW at 400 V in normal duty. Power losses at rated current are 181 W current-dependent plus 25 W static, which should be included in the enclosure heat calculation.

Control Terminals and Communication Options

The control section needs a 110 to 230 V AC supply (-15/+10%, 50/60 Hz, 0.09 kVA) on CL1-CL2. It provides four 24 V DC logic inputs (RUN, STOP and two programmable inputs), three relay outputs rated 2 A at 250 V AC or 30 V DC, two programmable digital outputs and one analogue output of 0-20 mA or 0-10 V. Three inputs accept PTC or Pt100 motor temperature probes. Motor thermal protection is class 10E, and the listed functions include external bypass control, pre-heating, smoke extraction, multi-motor cascade and a second motor set.

Modbus serial is built in: one RJ45 port, 2-wire RS 485, RTU frames, 1200 to 256000 bit/s, with the starter acting as a slave. Other networks need an option card, and Schneider Electric lists communication modules for Modbus TCP/EtherNet/IP, PROFINET, Profibus DP V1 and CANopen (daisy chain, Sub-D and open style). Mount the unit vertically within ±10 degrees. The product carries CE, cULus, CCC, UKCA, RCM and EAC marking, plus DNV, ABS, BV and CCS marine certifications, and conforms to IEC 60947-4-2 and UL 60947-4-2.

Why Choose Seven Star LLC for the Altistart 480 ATS480D62Y

Our team helps customers correctly size the Altistart 480 ATS480D62Y against motor nameplate data and starting torque requirements before ordering, reducing the risk of an undersized or oversized soft starter reaching site.

Get a Quote

Contact Seven Star LLC for pricing, lead time, and technical support on the Schneider Electric Altistart 480 ATS480D62Y soft starter, available for delivery across Oman and the wider GCC region.

Overload and Protection Behavior

The Altistart 480 ATS480D62Y continuously monitors motor current during the acceleration ramp and will trip on sustained overload, phase loss, or under-voltage conditions before damage can occur to either the motor or the soft starter itself, giving maintenance teams an early warning rather than a catastrophic failure. This built-in protection layer reduces the need for a separate motor protection relay in many pump and fan applications, simplifying the overall motor control panel design and lowering total installed cost.

Seven Star LLC frequently pairs the Altistart 480 ATS480D62Y with bypass contactors for applications where reduced heat dissipation during normal running is desired once the motor has reached full speed, a common configuration requested by HVAC and water treatment customers across Oman seeking to minimize panel enclosure temperature rise in outdoor or semi-enclosed installations.

Commissioning and Maintenance Support

Seven Star LLC provides commissioning support for the Altistart 480 ATS480D62Y, helping panel builders and end users configure ramp time, current limit, and stop mode parameters to match the specific pump, fan, or conveyor application rather than relying on generic factory defaults. Correct parameter configuration at commissioning significantly reduces nuisance trips and mechanical stress compared with a soft starter left at default settings, extending the service life of both the motor and the driven equipment.

Because the Altistart 480 ATS480D62Y supports digital diagnostics, our technical team can also assist customers in Oman with remote troubleshooting when the unit is integrated into a plant-wide EcoStruxure or Modbus-based monitoring system, reducing the need for a site visit for straightforward configuration issues. This level of application support is part of what distinguishes Seven Star LLC as a trusted supplier of Schneider Electric products for industrial motor control equipment across Muscat, Sohar, and Salalah.

Seven Star LLC maintains close coordination with Schneider Electric on lead time and firmware revisions for the Altistart 480 series, ensuring customers in Oman receive the latest hardware revision with current documentation rather than older stock. For projects requiring multiple soft starters across a plant, our team can also propose a standardized Altistart 480 configuration template, reducing engineering time and ensuring consistent protection settings across every motor circuit in the facility.
