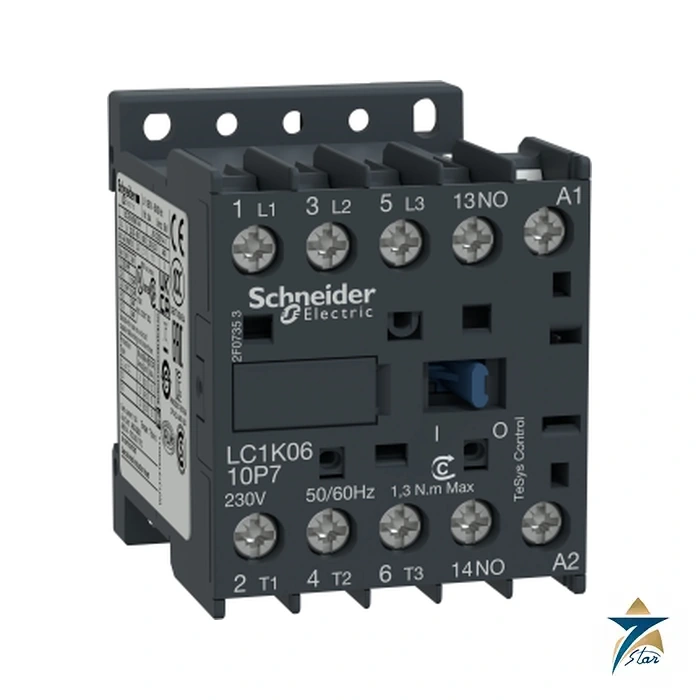

Schneider Electric LC1K0610P7 TeSys K Contactor
Compact TeSys K motor switching
The Schneider Electric LC1K0610P7 is a TeSys K three-pole contactor with a 6 A AC-3 rating at up to 440 V and ambient below 60 °C. It has one normally open auxiliary contact and a 230 V AC, 50/60 Hz control coil.
The complete LC1K0610P7 reference identifies the electrical execution. The coil supply must be checked separately from the main-circuit voltage: a 230 V AC coil does not mean that every motor circuit uses 230 V.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Range / reference | TeSys K / LC1K0610P7 |
| Main poles | 3 |
| AC-3 current rating | 6 A, for applications up to 440 V |
| Control coil | 230 V AC |
| Built-in auxiliary contact | 1 normally open |
| AC-3 motor power at 380–415 V | 2.2 kW, 50/60 Hz |
| Connections / mounting | Screw clamp terminals / rail or plate |
| Dimensions, H × W × D | 58 × 45 × 57 mm |
| Net mass | 0.18 kg |
| Coil suppression | No built-in suppressor module |
Select the contactor for the actual circuit
Compare the AC-3 load rating, number of main poles, auxiliary-contact requirement and available control supply with the installed arrangement. Other TeSys K references may share the housing while using different coils or auxiliary-contact combinations.
Identify the overload-protection arrangement and any additional accessories separately. A contactor switches the load; the starter design must also provide the required circuit and motor protection.
The screw-clamp terminal execution supports rail or plate mounting. Its 45 mm width is useful when checking the available starter space. The coil has no built-in suppressor module, so identify any required suppression accessory with the control-circuit design.
Quotation and replacement identification
Send Seven Star LLC the LC1K0610P7 reference, quantity, motor voltage and current, coil supply and a photograph of the existing label. State any required auxiliary contacts and associated starter components.
Browse Contactors & Overload Relays for related switching and protection components.
- Datasheet Schneider Electric LC1K0610P7 Product Datasheet — English, 8 October 2026 Download
