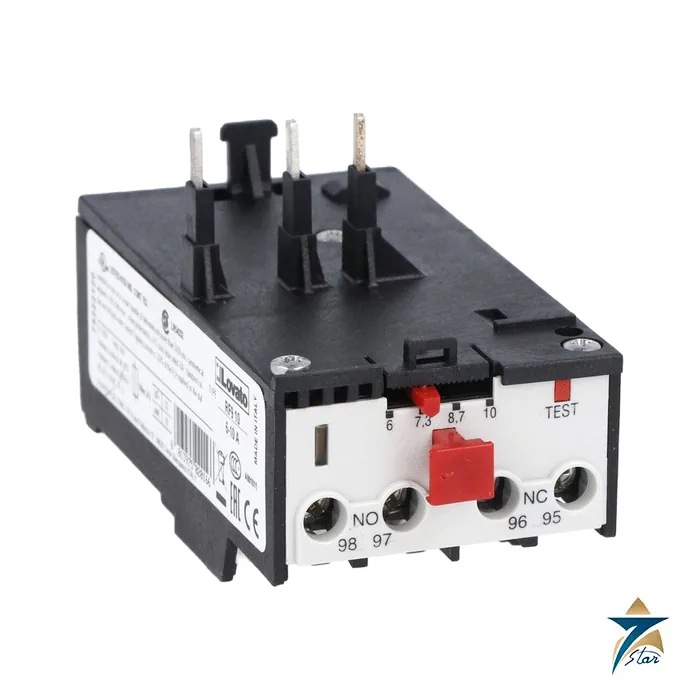

Lovato 11RF910 6-10 A Thermal Overload Relay

Name: Lovato 11RF910 Overload Relay | Seven Star LLC
Brand: Lovato Electric
SKU: 11RF910

Description

An 11RF9-family overload relay set between 6 and 10 A

A motor needing overload protection in the 6-10 A band can use the 11RF910, a thermal relay of the Lovato Electric 11RF9 family with phase-failure detection and a trip indicator.

Tripping class is 10A, the reset mode is manual, and the auxiliary contact block provides 1 NO and 1 NC for the control circuit. Insulation voltage is 690 V.

Technical specifications

Parameter	Specification
Order code	11RF910
Product type designation	11RF9
Product designation	Motor protection relay
Number of poles	3
Pollution degree	3
Frontal IP degree	IP20
Type of release	Thermal
gG (IEC)	32 A
aM (IEC)	10 A
RK5 (UL)	30 A
Functions and protections provided	Phase failure detection
Rated insulation voltage Ui IEC/EN	690 V
Rated impulse withstand voltage Uimp	8 kV
Rated operational voltage	690 V
Operational frequency (min)	0 Hz
Operational frequency (max)	400 Hz
Operational current min	6 A
Operational current max	10 A
Tripping class	10A
Test Button	Yes
Trip indicator	yes
Terminals type	screw and washer
Terminals screw	M4
Terminals width	9.8 mm
Terminals tool	Phillips 2
Auxiliary contacts, NO	1
Auxiliary contacts, NC	1
Auxiliary Rated insulation voltage Ui IEC/EN	690 V
Auxiliary Rated impulse withstand voltage Uimp	6 kV
Auxiliary Rated operational voltage	690 V
Auxiliary circuit type	screw and washer
Auxiliary circuit screw	M3,5
Auxiliary circuit width	8 mm
Auxiliary circuit tool	Phillips 1
Operating temperature (min)	-20 °C
Operating temperature (max)	55 °C
Storage temperature (min)	-55 °C
Storage temperature (max)	70 °C
Compensation temperature (min)	-15 °C
Compensation temperature (max)	55 °C
Max altitude	3000 m
Operating position, normal	Vertical plan
Operating position, allowable	±30°
Fixing	Direct mounting on BG06- BG09- BG12-
Weight	116 g

Matching the relay to the motor

With an adjustment range of 6-10 A, this relay suits a motor whose full-load current falls inside it. Heavy-start loads such as large fans may need a different trip class than a standard relay provides.

Short-circuit protection is separate: the datasheet quotes 32 A gG and 10 A aM as maximum fuse sizes for this relay.

Application and wiring

Fit the relay under the contactor, set the dial, and connect the 95-96 and 97-98 contacts to the control circuit as shown on the front label and in the datasheet.

The power terminals are of screw and washer type; the datasheet table lists the temperature range and the auxiliary contact ratings.

For panel design and commissioning, the practical figures to keep at hand are: terminals type screw and washer; terminals screw M4; terminals width 9.8 mm; terminals tool Phillips 2; auxiliary circuit type screw and washer; auxiliary circuit screw M3,5; auxiliary circuit width 8 mm; auxiliary circuit tool Phillips 1; operating temperature (min) -20 °C; operating temperature (max) 55 °C; storage temperature (min) -55 °C; storage temperature (max) 70 °C; max altitude 3000 m; operating position, normal Vertical plan. These come straight from the datasheet and are repeated here so that the key installation limits are visible without opening the PDF.
