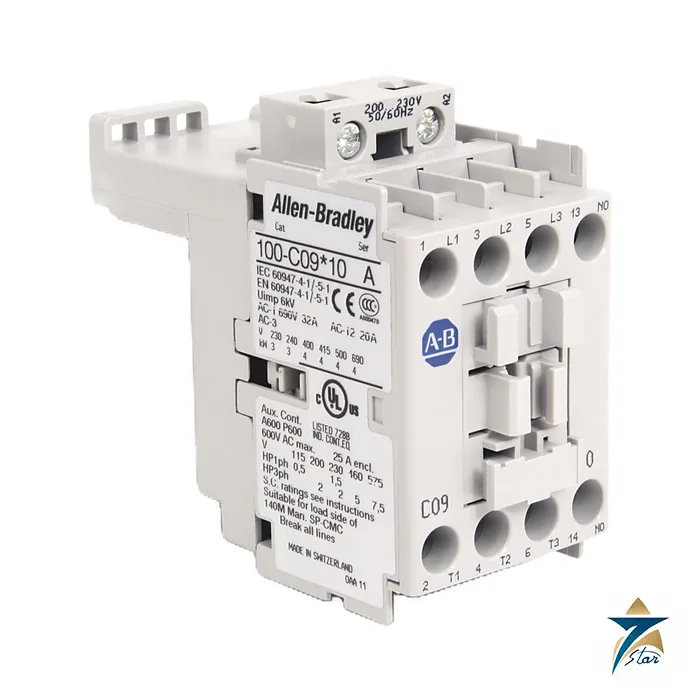

Allen-Bradley 100-C09EJ10 9 A IEC Contactor
Description
9 A three-pole 100-C contactor, 24V DC electronic coil
The Allen-Bradley 100-C09EJ10 is a 100-C IEC contactor rated 9 A in AC-3 duty, supplied with a 24V DC electronic coil. Rockwell’s product page lists a maximum load current of 9 A. Reading the catalog number: 100-C is the IEC contactor series, 09 is the 9 A frame, EJ selects the 24V DC electronic coil, and the last two digits give 1 N.O. auxiliary contact (the final “10” of the catalog number).
In the 100-TD013 technical data the 9 A size handles 3 / 4 / 4 / 4 kW at 230, 400/415, 500 and 690V (AC-3), and up to 32 A in AC-1 resistive duty.
Horsepower ratings printed for this size are 1/2 (115V 1-ph), 1-1/2 (230V 1-ph), 2 (200V 3-ph), 2 (230V 3-ph), 5 (460V), 7-1/2 (575V).
Technical specifications
| Parameter | Specification |
|---|---|
| Part number | 100-C09EJ10 |
| Product | Allen-Bradley 100-C IEC contactor, 3 poles |
| Rated AC-3 current | 9 A |
| AC-1 current | 32 A |
| Motor kW (230 / 400-415 / 500 / 690V) | 3 / 4 / 4 / 4 |
| Coil | EJ: 24V DC electronic coil |
| Auxiliary contact | 1 N.O. auxiliary contact (the final “10” of the catalog number) |
| Coil voltage range of series | 20 to 500V, 50/60 Hz and DC |
| North American hp | 1/2 (115V 1-ph), 1-1/2 (230V 1-ph), 2 (200V 3-ph), 2 (230V 3-ph), 5 (460V), 7-1/2 (575V) |
| Documents | 100C-IN005 and 100-TD013Q |
Driving the coil from 24V DC electronics
The EJ coil is an electronic AC/DC type with built-in surge suppression and an integrated diode, so a 24V DC PLC output or relay-module channel can drive it without a separate suppressor. That removes one accessory from small machine panels, and it means the 9 A frame can sit directly beside the controller in a compact enclosure.
Because the control signal is low-voltage DC, this version suits skid-mounted packages, small pump sets and machine builders who standardise on 24V control. Where mains-voltage control is used instead, pick a D, KF or KJ coil code in the same 9 A frame.
Where 9 A fits in the range
The 9 A contactor is the smallest of the C09 to C23 group, which shares one mounting footprint, so a panel can be redesigned from 9 A to 23 A without moving the DIN rail layout. Its AC-3 ratings are 3 kW at 230V and 4 kW at 400/415V, 500V and 690V, which covers small fans, pumps and conveyors in the 1.5 to 4 kW class.
The hosted installation instruction 100C-IN005 covers 100-C09 to 100-C23 and explains mounting, terminal torque and wiring of the auxiliary and coil terminals.
Ordering and documents
Order 100-C09EJ10 in full. Check the coil voltage, the auxiliary contact needed and whether line-side or load-side coil terminals are required; surge suppressors, auxiliary blocks and overloads are separate catalog numbers. The hosted document is 100C-IN005 (100-C09 to C23 installation instructions); rating data come from technical data 100-TD013Q.
Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.
Please include with your inquiry for 100-C09EJ10 the motor full-load current, the voltage and frequency of the supply, the coil or control voltage, and the short-circuit current available at the panel. These details decide whether the device and its neighbours are correctly coordinated (100-C IEC contactor, 9 A AC-3, 24V DC electronic coil, 3 poles).
Browse more items in Contactors & Overload Relays on our site, or send us the part number for a quotation.
